STM - WS3040DE-CUT-STM-2019-00001

Name: STM WS3040
Brand: STM
SKU: DE-CUT-STM-2019-00001
Price: 10764512 INR
Availability: InStock

Rs. 10,764,512

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used STM WS3040 Waterjet Cutter For Sale | gindumac.com

Show in original language

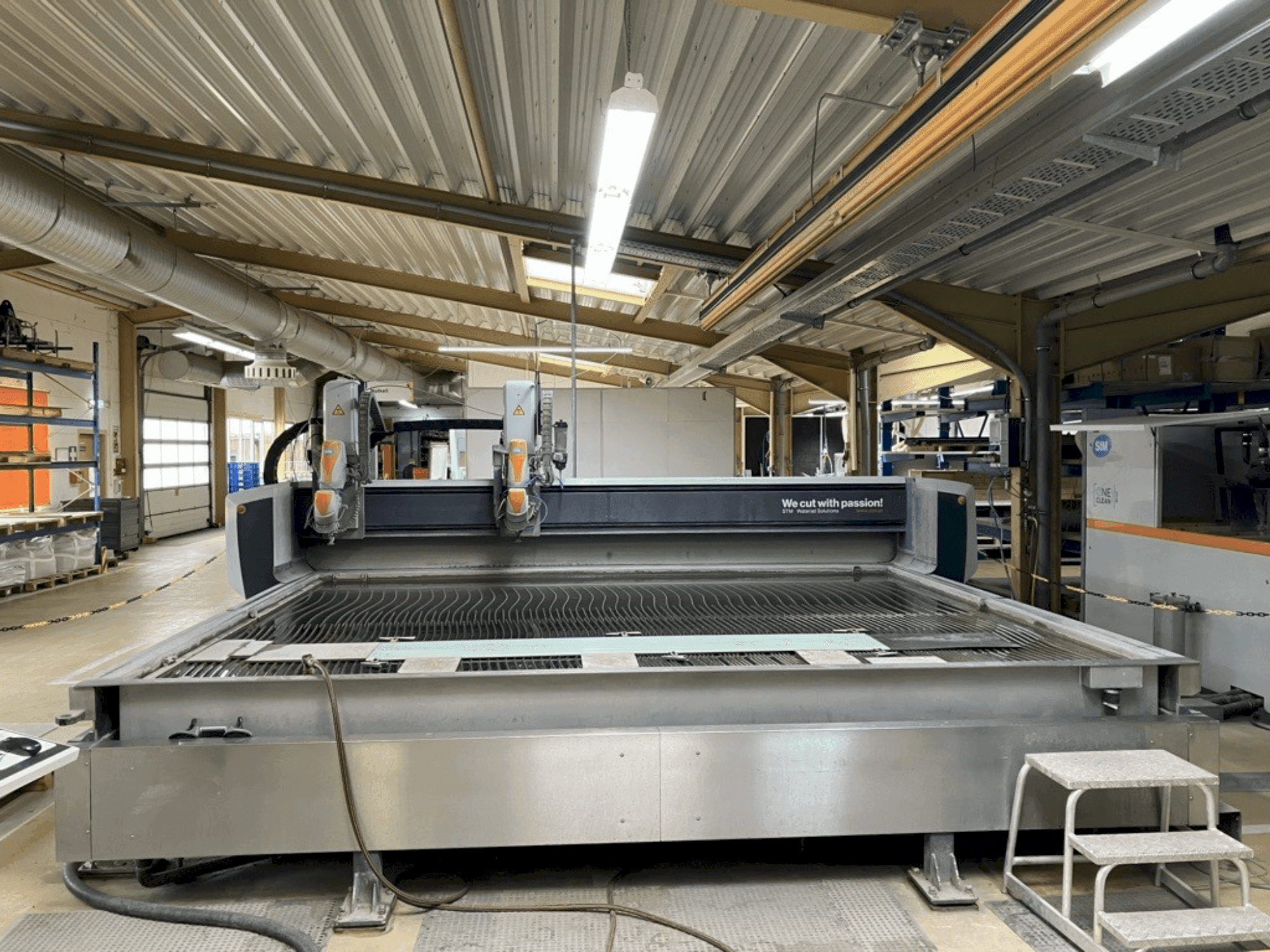

This 3-axis STM WS3040 waterjet cutting machine was manufactured in 2019. It features a large effective cutting area of 3000 x 4000 mm, dual Z-axis CNC for enhanced precision, and is equipped with advanced NUM FLEXIUM plus 3D 5-axis control. Additional highlights include LED work area lighting, a high-pressure Servotron pump, and comprehensive safety technology. If you are looking to get high-quality cutting capabilities, consider the STM WS3040 machine we have for sale. Contact us for more information.

Overview

brand: STM
year: 2019
MODEL: WS3040
application type: Cutting
Location: Germany
machine type: Waterjet Cutting Machine

Technical Information - STM WS3040

Dimensions

Machine Depth: 3900 mm
Machine Height: 2500 mm
Machine Weight: 2700 kg

Movement

Number of Axes: 3

Additional Information

Additional equipment

Installation and Assembly
Service Toolbox
3-day Training for up to 4 people
Retrofit between 2020-2023

Machine Benefits

Technical Machine Benefits

Quick up feature
High-pressure connection between pump and cutting head
Pressure relief valve
Effective cutting area: 3000 x 4000 mm
2x z-axis cnc 3d with a and b axes
Clearance height: 300 mm with quick up
2x stm3d cutting heads with cutting angle error compensation, pivotable up to 68°
Max material thickness: 50 mm
Support surface: 3100 x 4100 mm
2x electric pre-drilling unit for material

Extra Information

Pressure Bag Filter for Wastewater Treatment Machine-Specific Data Servotron 40.45+ High-pressure Pump: 4.6 liters/min, 45 kW CNC Abrasive Dosing Unit with Intermediate Container 1600 kg Abrasive Storage Container with Mini Hopper Media Oil Filling, AC Oil/Air Heat Exchanger OneClean Hydrofilter including Automatic Water Level Control for Cutting Tank Water Analysis System Control Unit CNC Control: NUM FLEXIUM, 40 m/min Handheld Control Unit Touch Screen Operation Work Area Lighting via LED Strip

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
