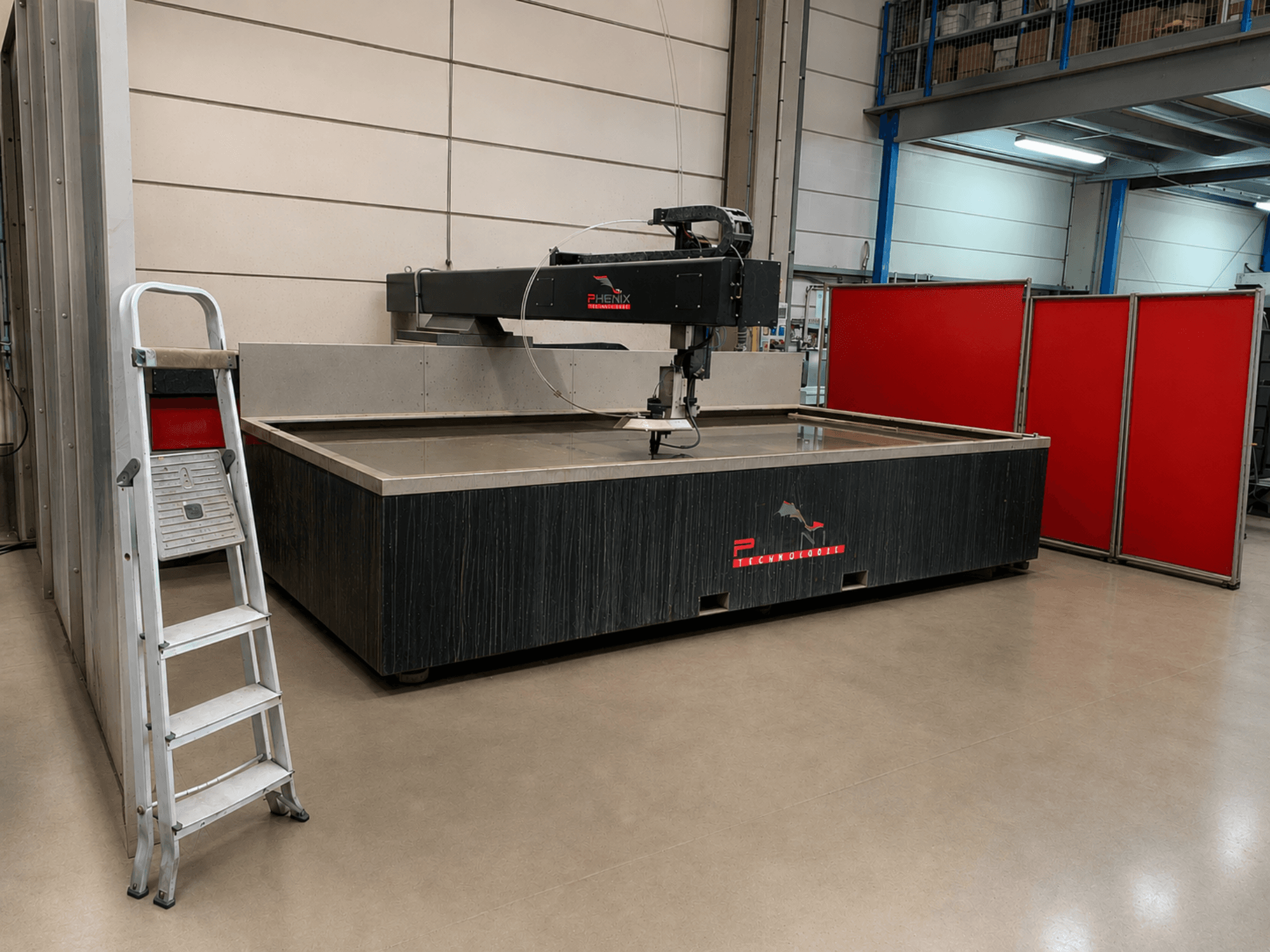

PHENIX - TECHNOLOGIE MD-JET 2040 FR-CUT-PHE-2015-00001

• Working area: 3,000 × 1,500 mm

• Cutting process: Pure water and abrasive waterjet cutting

• Suitable materials: Steel, stainless steel, aluminium, galvanized steel and other materials

• Maximum cutting thickness: Up to 70 mm (material dependent)

• Functional test: Possible before dismantling

Machine / Motion System

• Cantilever design (loading from 3 sides)

• Linear guideways with ball-bearing blocks

• Ball-screw transmission

• Brushless axis motors with incremental encoders

• Automatic lubrication

• Protected axes against abrasive contamination

• Positioning accuracy: ±0.1 mm

• Repeatability: ±0.05 mm

• Stainless-steel water tank with adjustable overflow and quick-drain valve

• Galvanized support grids

• Safety light barriers and emergency stop system

Cutting Head

• AccuStream cutting head

• Maximum working pressure: 4,000 bar (per MD JET manual)

• Recommended nozzle diameter: 0.10–0.30 mm

• Sapphire or diamond orifice

• Hydraulic on/off valve

• Configurations: Pure-water or abrasive-water cutting

High-Pressure Pump

• Manufacturer/Model: Hypertherm HyPrecision 75S

• Pump power: 56 kW

• Maximum/Factory cutting pressure: 4,137 bar

• Factory piercing pressure: 1,379 bar

• Maximum high-pressure water flow: 5.7 L/min at 50 Hz / 6.1 L/min at 60 Hz

• Cutting-water inlet flow: 11.4 L/min

• Cutting-water inlet pressure: 3–8 bar

• Pump dimensions (L × W × H): 1,930 × 1,016 × 1,422 mm

• Pump operating/shipping weight: 1,497 kg / 1,415 kg

• Electrical supply: 400 V / 50 Hz

• Rated current / Main circuit breaker: 103 A / 125 A

• Hydraulic fluid tank capacity: 151 L

• Hydraulic fluid: ISO VG 32 or 46

• Maximum hydraulic fluid temperature: 54.4 °C

• Maximum hydraulic pressure: 217 bar

Additional equipment

• Pressurized abrasive system:

  • Abrasive hopper capacity: 200 L

  • Hopper pressure: 8 bar

  • Hopper dimensions: 1,070 × 780 × 1,320 mm (per MD JET manual)

  • Empty weight: 120 kg

  • Automatic abrasive feeding system with low-level monitoring

  • Pneumatic abrasive transport

  • Integrated abrasive metering/distribution system

• Optional/available: Real-time cutting-height sensing system (as stated, availability optional)
