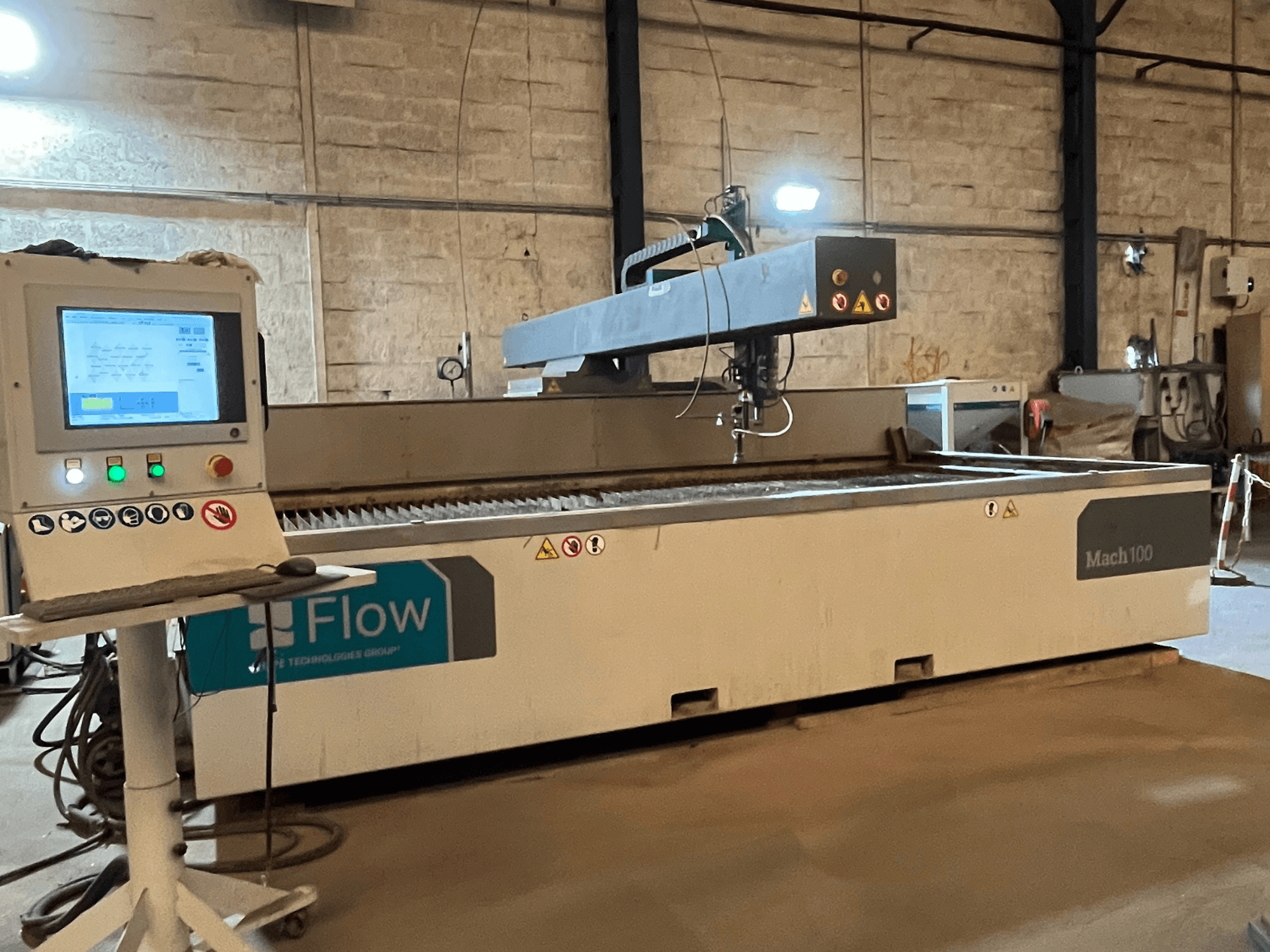

Flow - MACH 100- 4020FR-CUT-FLO-2021-00001

• Operating hours: less than 800 hours

• First commissioning: September 2021

• Working area: 4020 × 2020 mm (4 m × 2 m)

• Design: Cantilever (gooseneck-type) structure

• Axes: 3 axes (X, Y, Z) driven by ball screws

• Software & control: FlowMaster license included; FlowMaster programming/control installed on the machine control station and an additional customer PC

• Abrasive waterjet cutting system:

  • Cutting head: Flow PASER 4 with high-pressure ON/OFF valve

• High-pressure generation:

  • Pump: Flow Hyplex Prime 30 ultra-high-pressure pump

  • Maximum pressure: 4,150 bar

  • Features: High efficiency with integrated autonomous cooling

• Workpiece support tank: Heavy-duty painted steel tank, independent from the machine axes

Additional equipment

• High-pressure piping kit (from pump to cutting head)

• Laser pointer for positioning (red dot for program alignment)

• UltraPierce system (abrasive suction/Venturi) for chip-free piercing of sensitive materials (glass, stone, composites, plexiglass)

• EcoFlow cutting sludge extraction system with pneumatic diaphragm pumps and hopper for abrasive recovery into a big bag

• Flow abrasive feeding system
