EXPERT - SYSTEMTECHNIK cutExpert variojetDE-CUT-EXP-2016-00001

Rs. 4,388,727
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

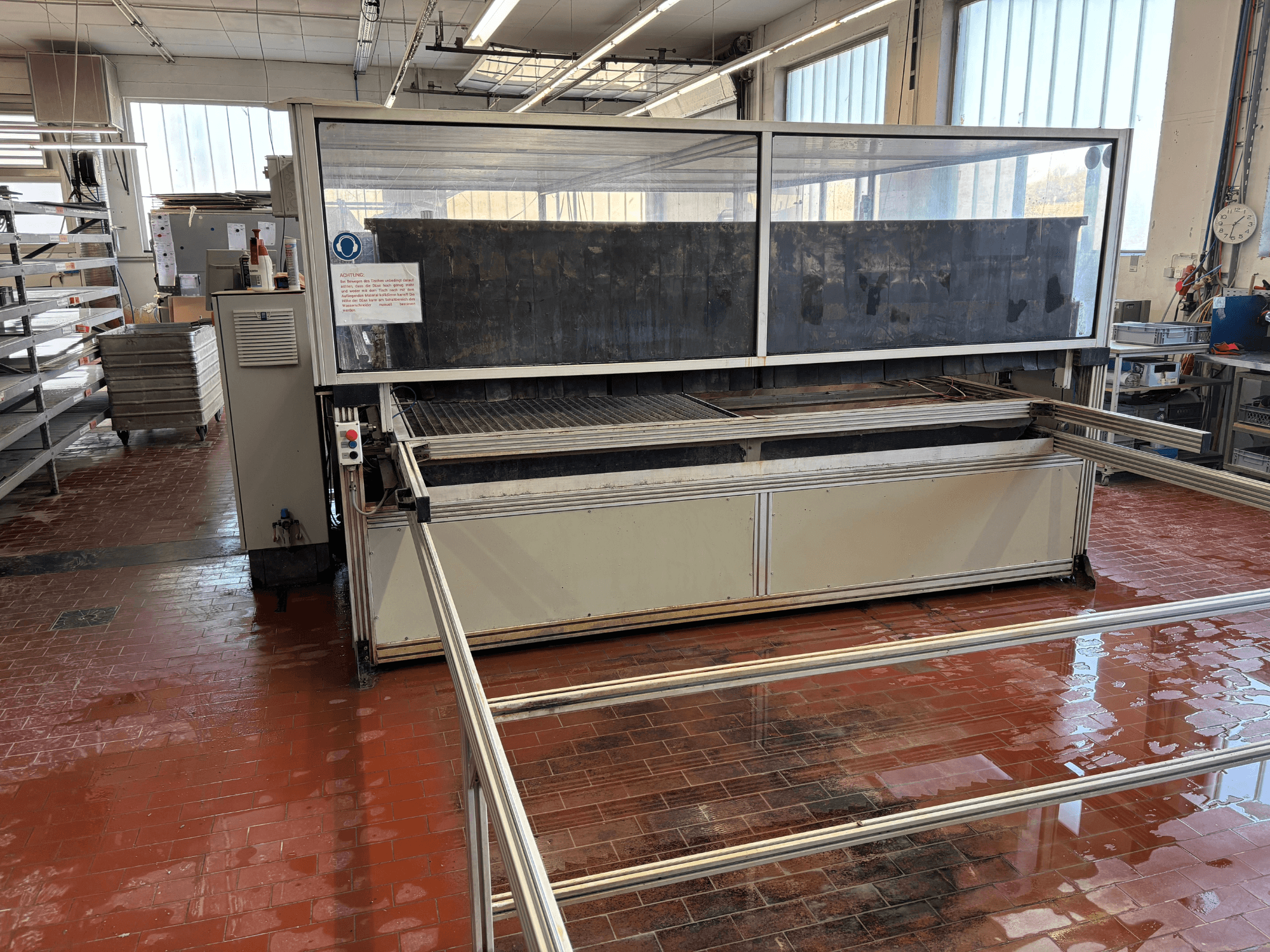

This 3-axis EXPERT SYSTEMTECHNIK cutExpert variojet was manufactured in 2016. It features a maximum material thickness capacity of 100 mm, allowing for versatile cutting applications. The machine includes an Uhde HPS 4022 high-pressure pump, designed for a discharge capacity of 2.3 l/min and a pressure of 4000 bar, enhancing its cutting efficiency. If you are looking to get high-quality waterjet cutting capabilities, consider the EXPERT SYSTEMTECHNIK cutExpert variojet machine we have for sale. Contact us for further details.

Overview

  • brand: EXPERT
  • year: 2016
  • MODEL: SYSTEMTECHNIK cutExpert variojet
  • application type: Cutting
  • Location: Germany
  • machine type: Waterjet Cutting Machine

Technical Information - EXPERT SYSTEMTECHNIK cutExpert variojet

Movement

  • Number of Axes: 3
  • X-axis Travel: 1800 mm

Additional Information

- Maximum Material Thickness: 100 mm (via adjustable Z-axis)

- Operating Hours: 30,192 hours

- Included Additional Equipment: Uhde HPS 4022 high-pressure pump, second worktable for continuous loading/cutting workflow

High-Pressure Pump Specs (Uhde HPS 4022):

- Pump Manufacturer: Uhde High Pressure Technologies GmbH (ThyssenKrupp)

- Pump Model: HPS 4022

- Design Discharge Capacity: 2.3 l/min

- Design Pressure: 4000 bar

- Plunger Diameter: 19 mm

- Stroke Length: 182 mm

- Motor Rated Output: 22 kW

- Pump Weight: 1080 kg

- Pump Operating Hours: 30,192 hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
