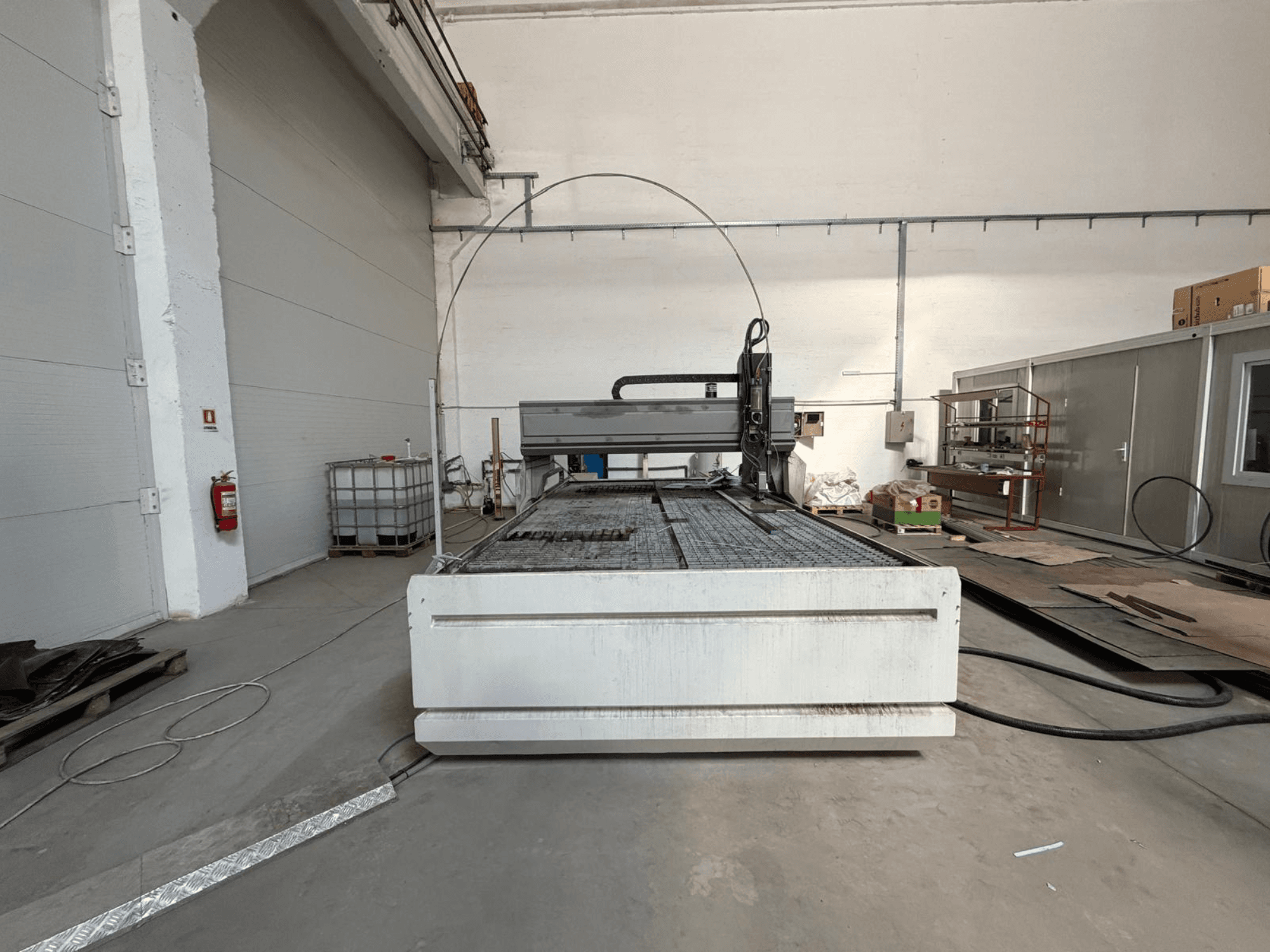

CMS - SMARTLINE 2040RO-CUT-CMS-2023-00001

• Max worktable size: approx. 4,150 × 2,080 mm

• Cutting system

  • Technology: Abrasive waterjet

  • Cutting head: 3-axis waterjet cutting head (CMS Tecnoucut)

  • Max cutting thickness: up to 220 mm (material dependent)

  • Interpolated CNC cutting for complex shapes

  • Automatic Z height control

• Axes and motion

  • CNC controlled axes: X, Y, Z

  • Motors: Brushless

  • Guides: Recirculating ball linear guides

  • Drive system: Rack & pinion (X/Y), ball screw (Z)

  • Positioning accuracy: ±0.05 mm

  • Repeatability: ±0.03 mm

• Waterjet pressure system

  • Maximum working pressure: approx. 4,150 bar (60,000 psi)

  • Pump power: approx. 22.5 kW

  • Note: High-pressure intensifier pump 30 CP included; see Additional equipment

• Control and software

  • CNC control: OSAI Open

  • HMI: CMS Active interface

  • CAD/CAM: EasyCut / EasyPump compatible

  • Touchscreen control panel on mobile stand

• Worktable and load

  • Material support: Steel grid table

  • Max table load: approx. 500 kg/m²

• Electrical and utilities

  • Power supply: 400 V / 50 Hz / 3-phase

  • Installed power: approx. 35–40 kVA (configuration dependent)

  • Protection class: IP54 (control cabinet)

• Safety and equipment

  • Safety guards and photoelectric barriers

  • Automatic lubrication system (X, Y, Z)

  • Collision detection system for cutting head

  • Laser pointer for zero-point setting

  • Electrical cabinet and control console

Additional equipment

• High-pressure intensifier pump (30 CP)

• Abrasive feeding system (270 kg capacity)

• Air compressor
