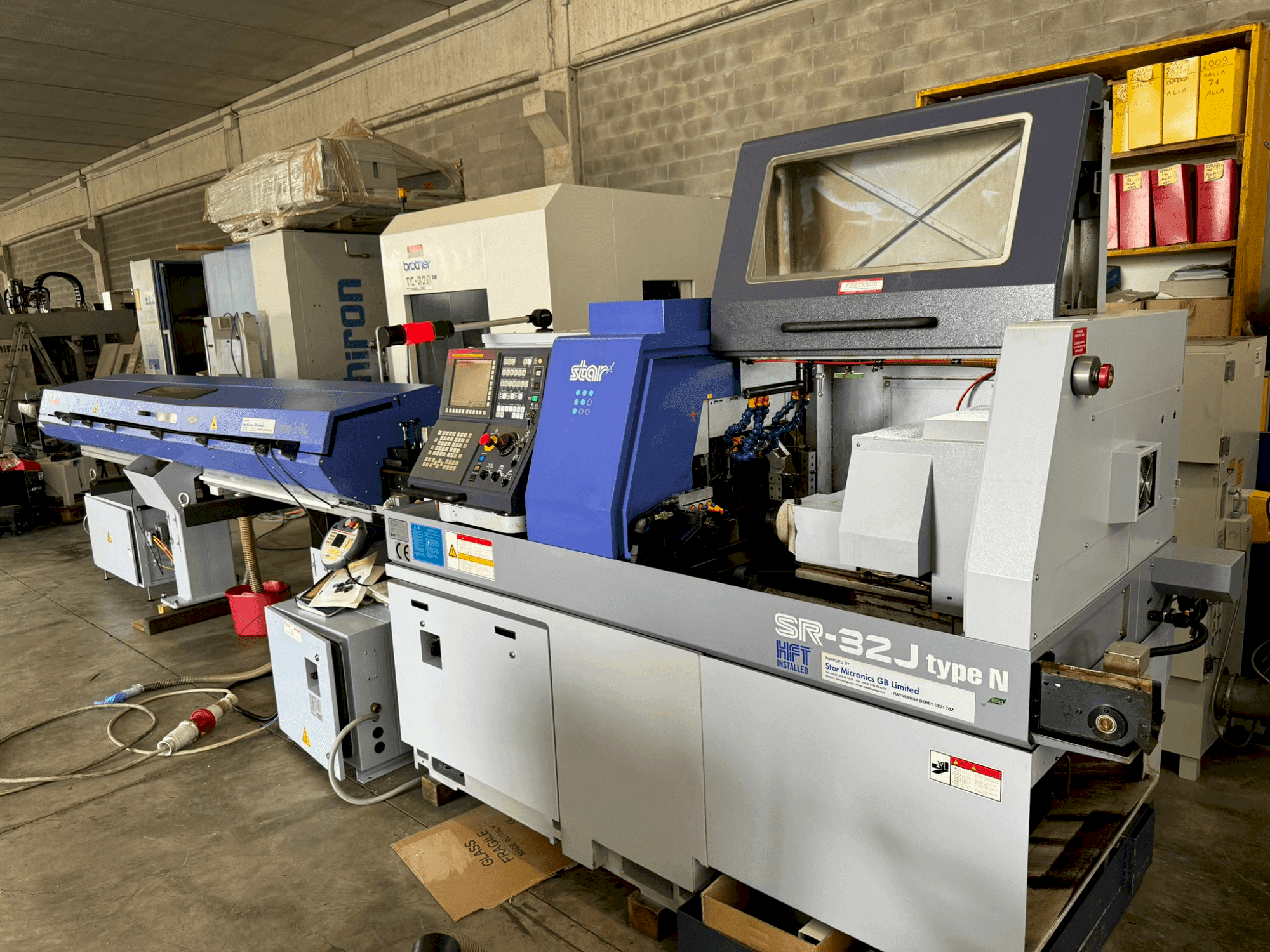

Front view of Star SR-32J type N  machine

Star SR-32J type N

Star - SR-32J type N

2018

Rs. 10,851,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 9-axis STAR SR-32J type N swiss type turning machine was manufactured in 2018. It offers a maximum machining diameter of 32 mm, with spindle revolutions up to 7000 rpm and a spindle motor power of 7.5/3.7 kW. Key features include a counter spindle with a maximum grip and pass diameter of 32 mm and a rapid axes advance of 24 m/min. The machine also comes equipped with a bar feeder. Contact us for more information about this swiss type turning machine.

Overview

  • brand: Star
  • year: 2018
  • MODEL: SR-32J type N
  • application type: Turning
  • Location: Italy
  • machine type: Swiss Type Turning
  • availability: Immediately
  • control unit brand: FANUC
  • GINDUMAC ID: IT-TUR-STA-2018-00002

Technical Information

General Data

  • Measurements width: 1700 MM
  • Measurements depth: 2520 MM
  • Measurements height: 1000 MM
  • Machine weight: 2800 KG

Control Unit

  • Brand: FANUC
  • Model: Series 18i-TB

Main drive

  • Spindle speed range: 7000 1/MIN
  • Spindle motor power: 7.5 / 3.7 kW
  • Number of axis: 9

Tools

  • Max tool diameter: 13 MM

    Additional equipment

    • - Barfeeder

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Fast forward axes at 24m/min enhances operational efficiency.
        • - Max machining diameter: 32 mm
        • - Rotary tool diameter: 8 mm
        • - Maximum capacity in staining: fixed tool m12 x 1. 75 mm, m16 rotary tool x 1
        • - Maximum milling capacity: end mill on comb slide diameter 10mm
        • - Standard main spindle: useful diameter spindle hole 32mm, f37 caliper art 740
        • - Shooting counter spindle: max grip and passage diameter 32 mm, spindle revolutions 7000 rpm, max piece length with frontal ejection 80 mm
        • - Max workpiece length: 80 mm
      • Qualitative Machine Benefits:
        • - Consistent machining with precision facilitated by the machine’s robust configuration and advanced control system.
        • - Versatile machining capabilities with maximum usability of tools due to the dynamic axis setup.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
