Star - SR-32J type NIT-TUR-STA-2011-00001
Sold
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ➤ Star SR-32J type N Lathe - Used
Show in original language

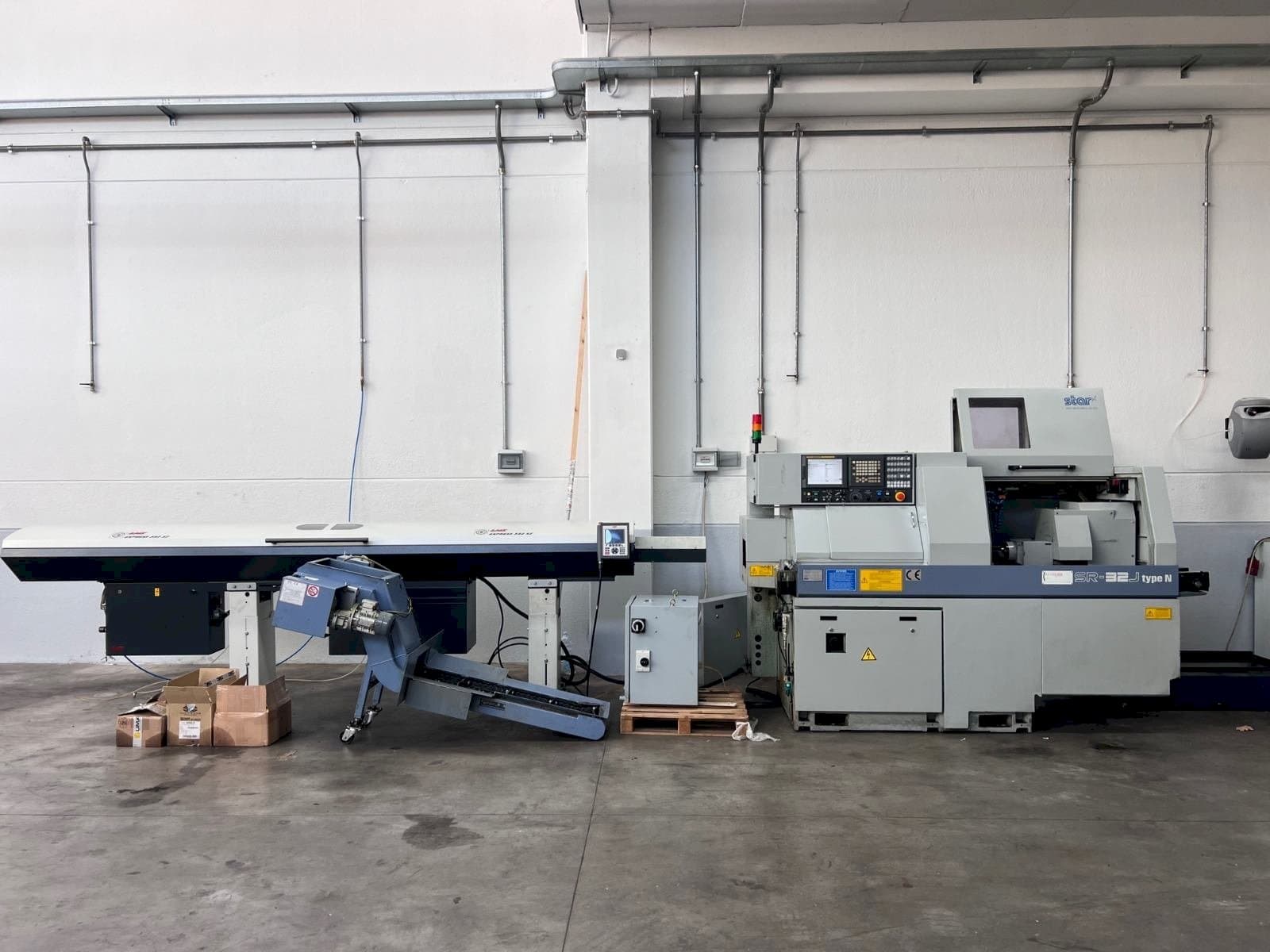

This Star SR-32J type N lathe was made in the year 2011 in Japan. It is equipped with a Fanuc Series 18i-TB control unit. The machine has a spindle speed of 7000 rpm, includes an LNS bar feeder.
Overview
- brand: Star
- year: 2011
- MODEL: SR-32J type N
- application type: Turning
- Location: Italy
- machine type: Swiss Type Turning Machine
- control unit brand: FANUC
Technical Information - Star SR-32J type N

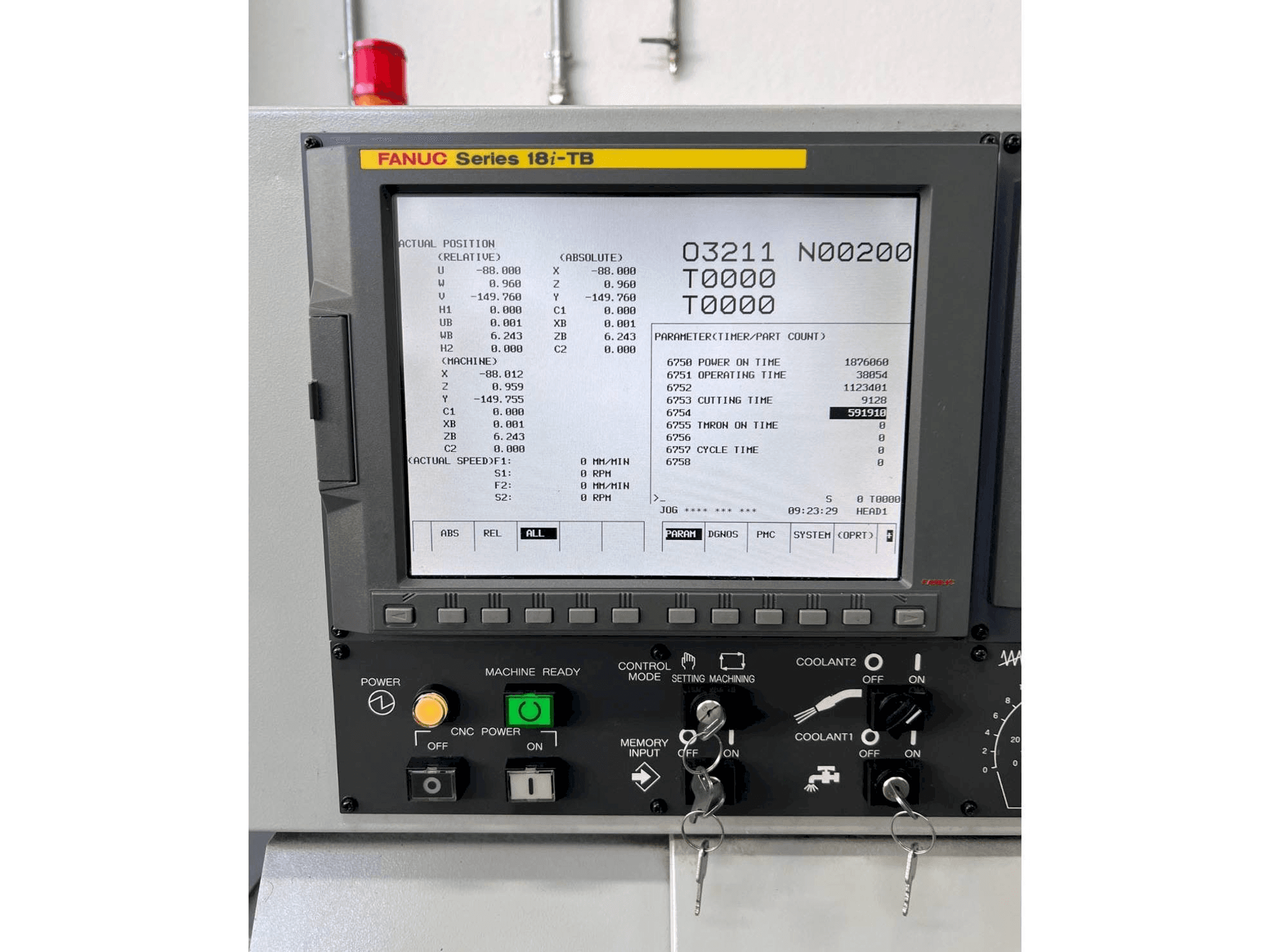

Control Unit
- Control Brand: FANUC
- Control Model: Series 18i-TB
Dimensions
- Machine Depth: 1700 mm
- Machine Height: 1000 mm
- Machine Weight: 2800 kg
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 7000 RPM
Additional Information
Additional equipment
- LNS barfeeder included
Machine Benefits
Technical Machine Benefits
- Max machining diameter 32 mm
- Max drilling capacity: fixed tool diameter 13 mm , rotary tool diameter 8 mm
- Maximum capacity in staining: fixed tool m12 x 1. 75 mm, m16 rotary tool x 1
- Maximum milling capacity: end mill on comb slide diameter 10mm
- Standard main spindle: useful diameter spindle hole 32mm, f37 caliper art 740
- Shooting counter spindle: max grip and passage diameter 32 mm, spindle revolutions 7000 rpm, max piece length with frontal ejection 80 mm
- Fast forward axes: 24m/min
- Sitta comb with stations for motorized units: fixed turning tool stations 6, tool shank size 16 mm, stations for radial engines 5, motorized unit max speed 5000 rpm
- Station for frontal tools: fixed tool stations for drilling/tapping 4, max clamping diameter with er 10/13mm collet
- Tool posts for rear machining: fixed tool stations for drilling/tapping 4
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
