SPINNER - U-620SI-MIL-SPI-2013-00002
Do you have further questions? Contact us.

Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used SPINNER U-620 For Sale | gindumac.com

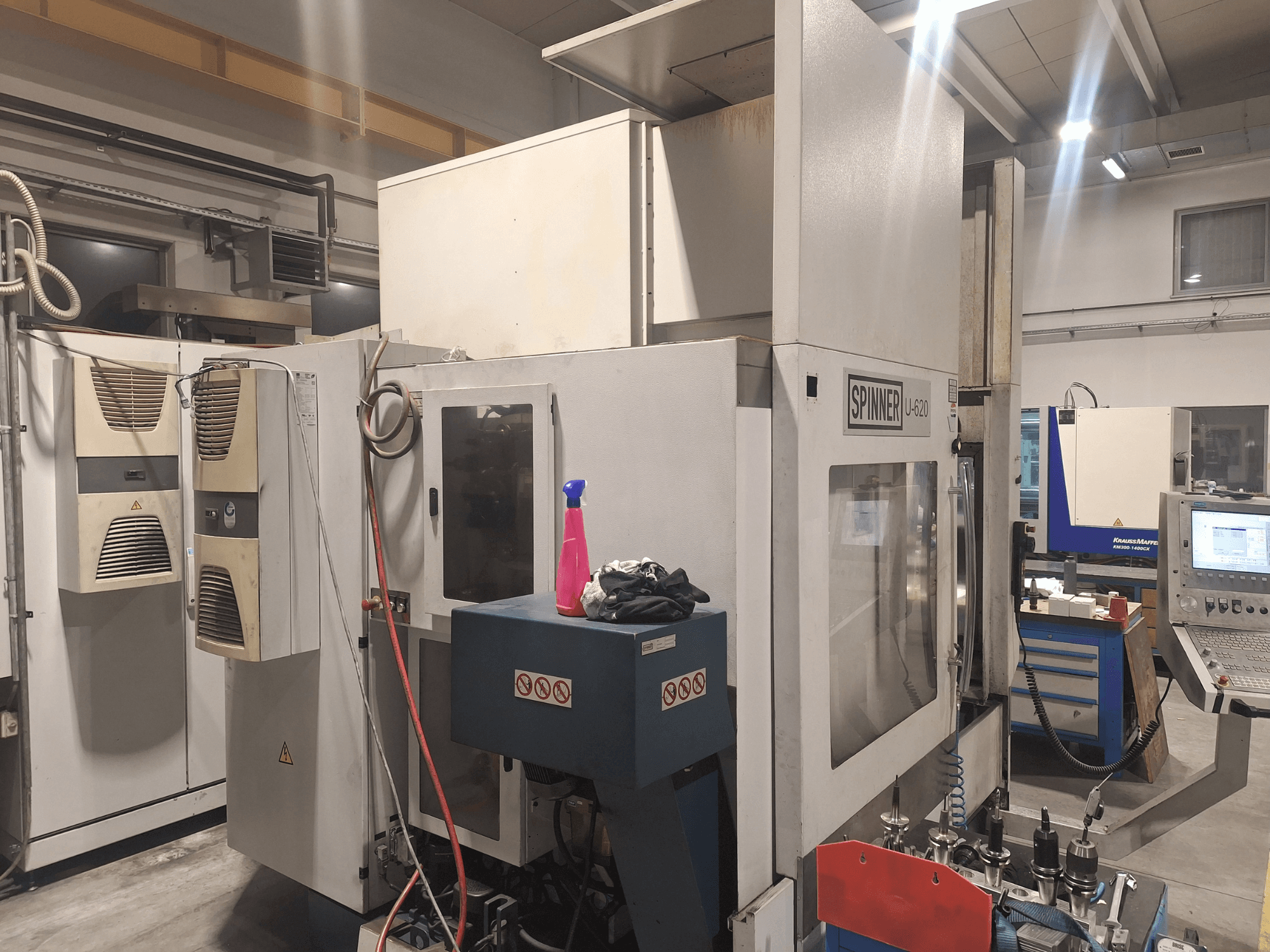

This 5-axis SPINNER U-620 was manufactured in 2013. It features a Heidenhain iTNC 530 control, a vertical spindle with a max speed of 12,000 rpm, and a tool magazine capacity of 32. The integrated NC rotary tilting table enhances its 5-axis simultaneous machining capabilities. If you are looking to get high-quality milling capabilities, consider the SPINNER U-620 machine we have for sale. Contact us for more information about this machine.
Overview
- brand: SPINNER
- year: 2013
- MODEL: U-620
- application type: Milling
- Location: Slovenia
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - SPINNER U-620
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Movement
- X-axis Travel: 620 mm
- Y-axis Travel: 520 mm
- Z-axis Travel: 460 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Operating hours (according to control display):
Control ON: approx. 50,450 h
Machine ON: approx. 49,000 h
Program run: approx. 30,900 h
Spindle hours: approx. 32,000 h
Spindle:
Type: Vertical
Tool changer:
Tool magazine capacity: 32 tools
Tool change: Automatic
Table / 5-axis unit:
Table type: Integrated NC rotary tilting table
5-axis unit: Fully integrated rotary and tilting axes
Working area:
Fully enclosed working area
Large front access doors
Good visibility into the machining area
Internal work area lighting
Coolant system: Standard external coolant supply
Additional equipment (not part of the base machine)
Mechanical vice mounted (workholding not included unless otherwise agreed)
Some tooling included in the offer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
