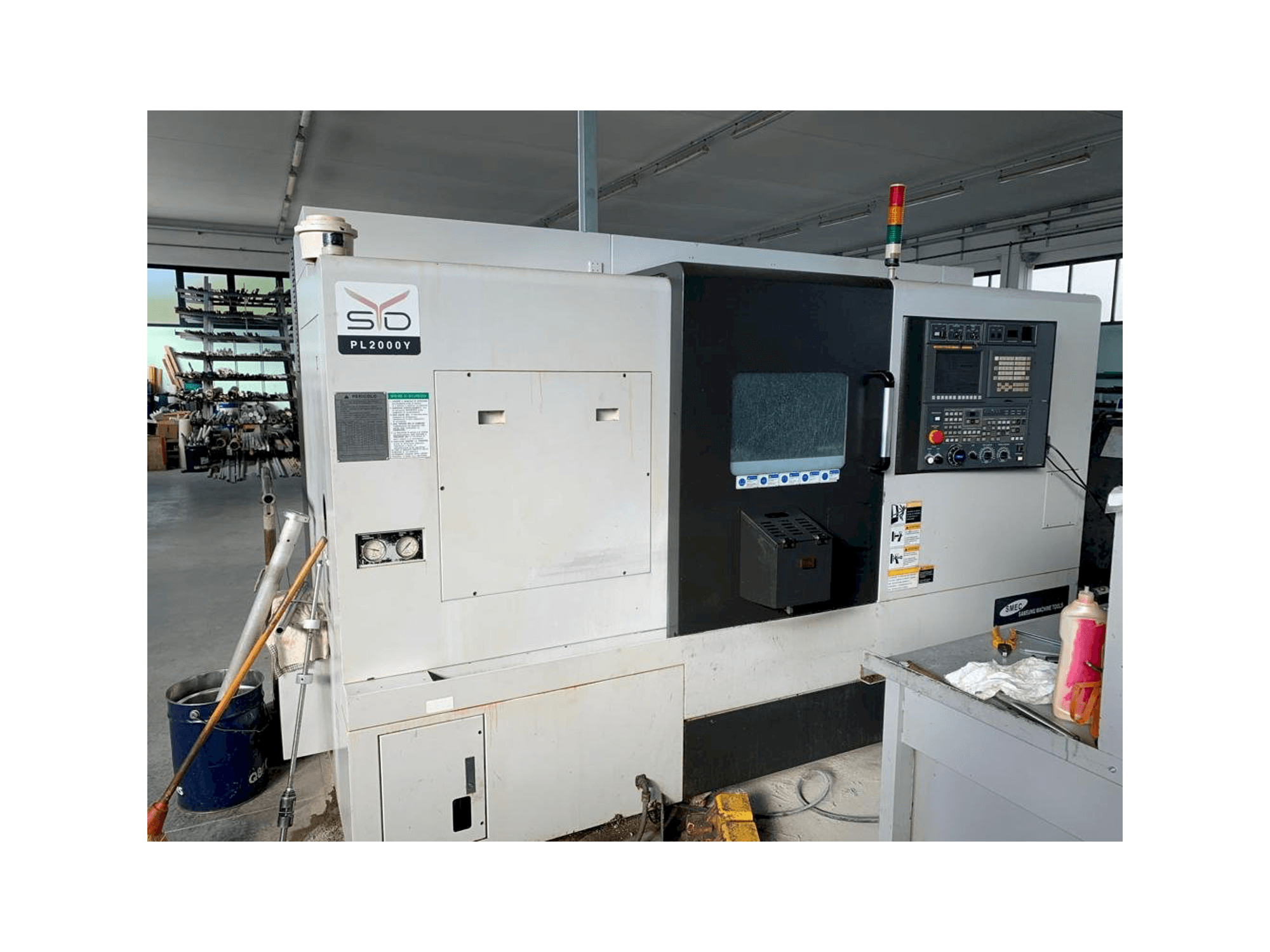

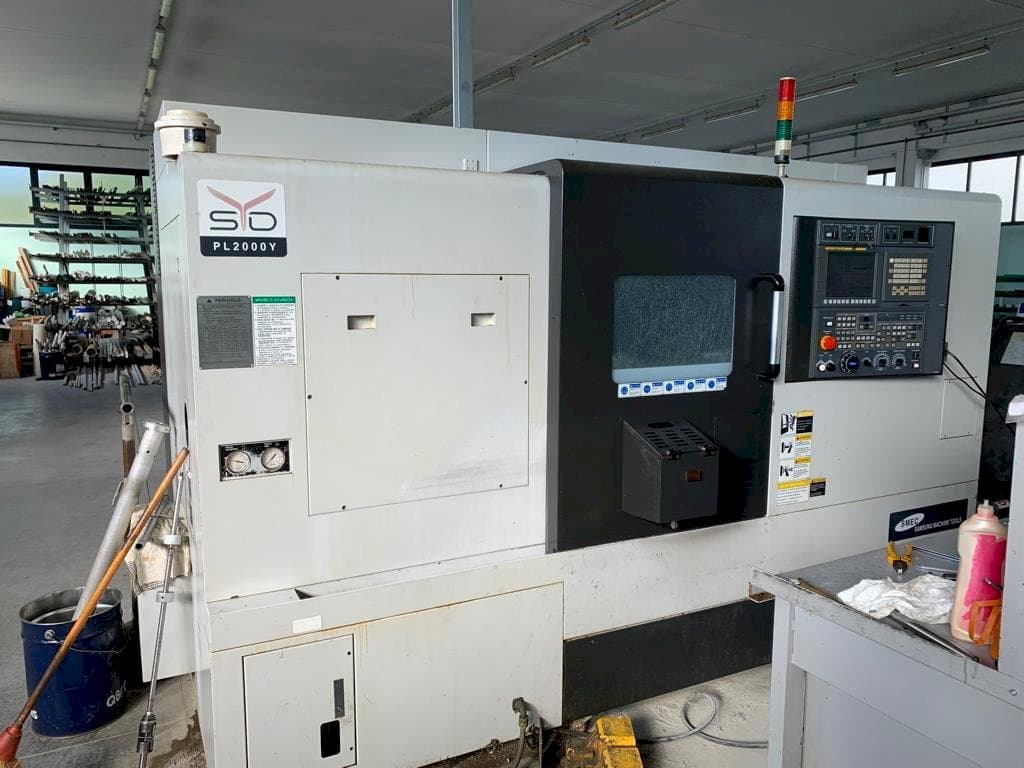

Front view of SMEC PL 2000Y  machine

SMEC PL 2000Y

SMEC - PL 2000Y

2014

Rs. 5,871,800

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This SMEC PL 2000Y Lathe was made in 2014 in Korea and has 14309 production hours, of which 4261 are spindle hours. It is equipped with a Fanuc Series Oi-TD control unit. The machine has a spindle speed of 4000 rpm.

Overview

  • brand: SMEC
  • year: 2014
  • MODEL: PL 2000Y
  • production hours: 14309
  • application type: Turning
  • Location: Italy
  • machine type: Lathe
  • availability: Immediately
  • control unit brand: Fanuc
  • GINDUMAC ID: IT-TUR-SME-2014-00001

Technical Information

General Data

  • Measurements width: 3658 mm
  • Measurements depth: 1930 mm
  • Measurements height: 2085 mm
  • Machine weight: 5800 kg

Control Unit

  • Brand: Fanuc
  • Model: Series Oi-TD

Main drive

  • Number of spindles: 1
  • Spindle speed range: 4000 1/MIN

Movement

  • X-AXIS Movement: 235 mm
  • Y-AXIS Movement: 100 mm
  • Z-AXIS Movement: 580 mm
  • B-AXIS Movement: 580 mm

Turret

  • Number of turrets: 1

Tools

  • Slots in storage: 12

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max turning diameter: 360 mm
      • - Max. Turning length: 520 mm
      • - Max. Bar diameter: 65 mm
      • - Swing over bed: 650 mm
      • - Swing over cross slide: 540 mm
      • - Max. Milling diameter: 374 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
