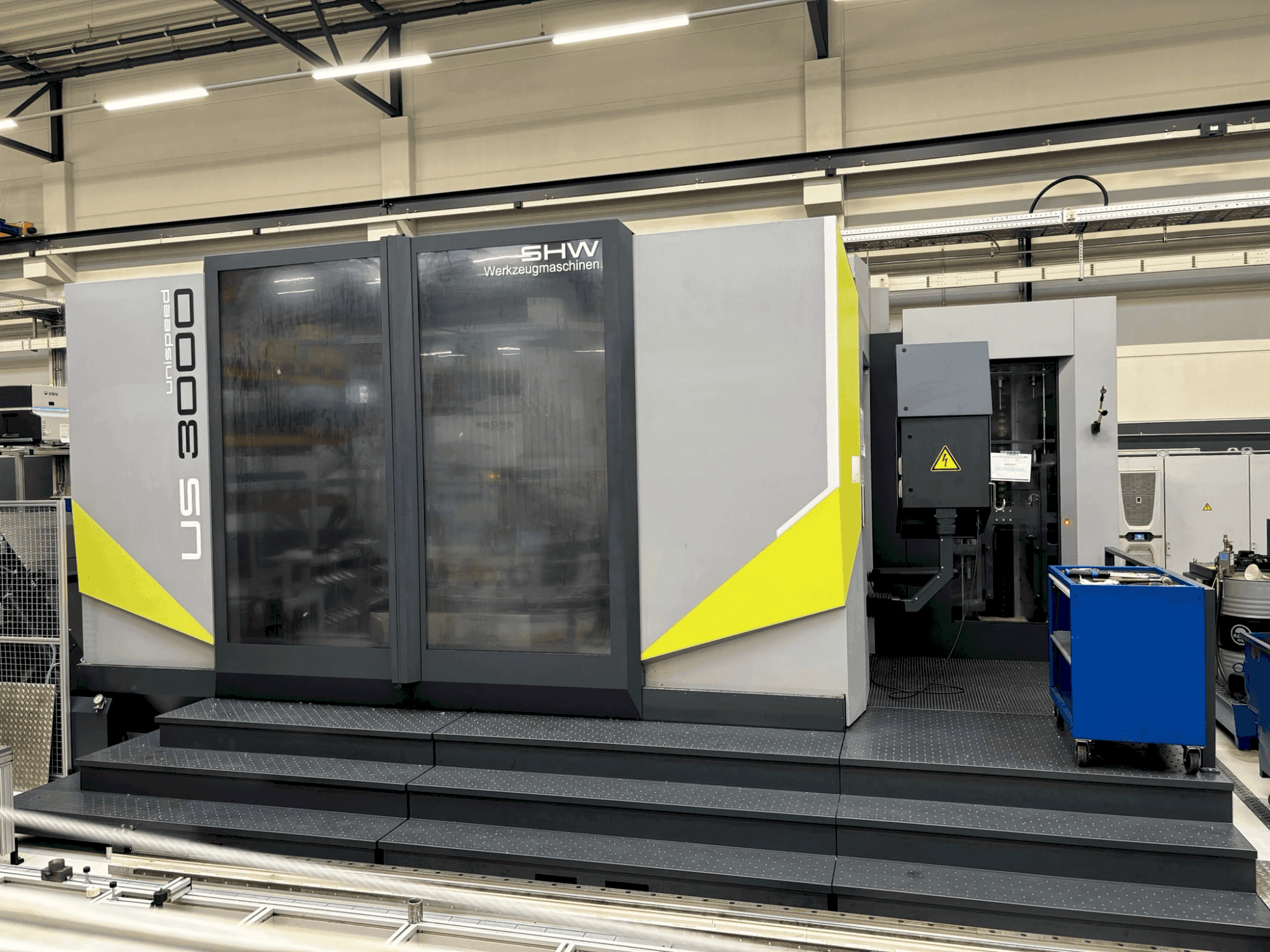

Front view of SHW Unispeed 3000  machine

SHW Unispeed 3000

SHW - Unispeed 3000

2022

Rs. 99,120,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This milling machine was manufactured in 2022. Equipped with KUKA KR 270 R2700 ultra, the SHW Unispeed 3000 offers precision and reliability in machining operations. Its 5-axis configuration with three linear and two rational axes ensures efficient material removal and accurate shaping. The robust build and advanced automation capabilities make it suitable for various industrial applications. For those seeking a dependable machining solution, consider this SHW Unispeed 3000 milling machine. For further details, contact us today.

Overview

  • brand: SHW
  • year: 2022
  • MODEL: Unispeed 3000
  • production hours: 4952
  • application type: Milling
  • Location: Germany
  • machine type: Milling Machine
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: DE-MIL-SHW-2022-00001

Technical Information

Control Unit

  • Brand: Heidenhain
  • Model: TNC640

Main drive

  • Spindle speed range: 6000 1/MIN
  • Tool taper: SK50 BIG-PLUS
  • Number of axis: 5
  • Max payload: 270 kg
  • Max reach: 2696 mm

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1300 mm
  • Z-AXIS Movement: 1300 mm

Table

  • Table load: 8000kg

Tools

  • Number of stations: 102
  • Max weight: 30 kg
  • Max tool diameter: 125 mm
  • Max tool length: 500 mm

Media

  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - Swivel range c-axis +-180°
    • - Swivel range a-axis +-180°
    • - radio measuring probe RMP 60
    • - DP/PN coupler

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Electronic handwheel hr 510 // heidenhain kinematics opt
        • - Clamping surface 1600mm // t-slots 22mm // center distance 160mm // speed 5 1/min // torque 10,000 nm // tool pull-in force 20 kn
        • - Hybrid frame x-axis 3000mm // x-axis drive via ball screw diameter 80mm // y-axis drive via ball screw diameter 63mm // drive z-axis via ball screw diameter 63mm
        • - Orthogonal milling head c-axis 1°: liquid-cooled milling head
        • - Swivel range c-axis +-180° // swivel range a-axis +-180°
        • - Torque 637nm // torque 875nm
        • - Opening width of the doors with unispeed 3000 2900mm
        • - Coolant system 950l
        • - Rotary distribution 8-fold 200 bar rotary table
        • - Control on: 20541h // machine on: 16387h // program run: 7491h // spindle hours: 4952h
      • Qualitative Machine Benefits:
        • - Electric door drive
        • - Shw uni-scan
        • - Housing design tft shaft
        • - Cable drag steel cover version

      Extra information

      • - Two identical units are available.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
