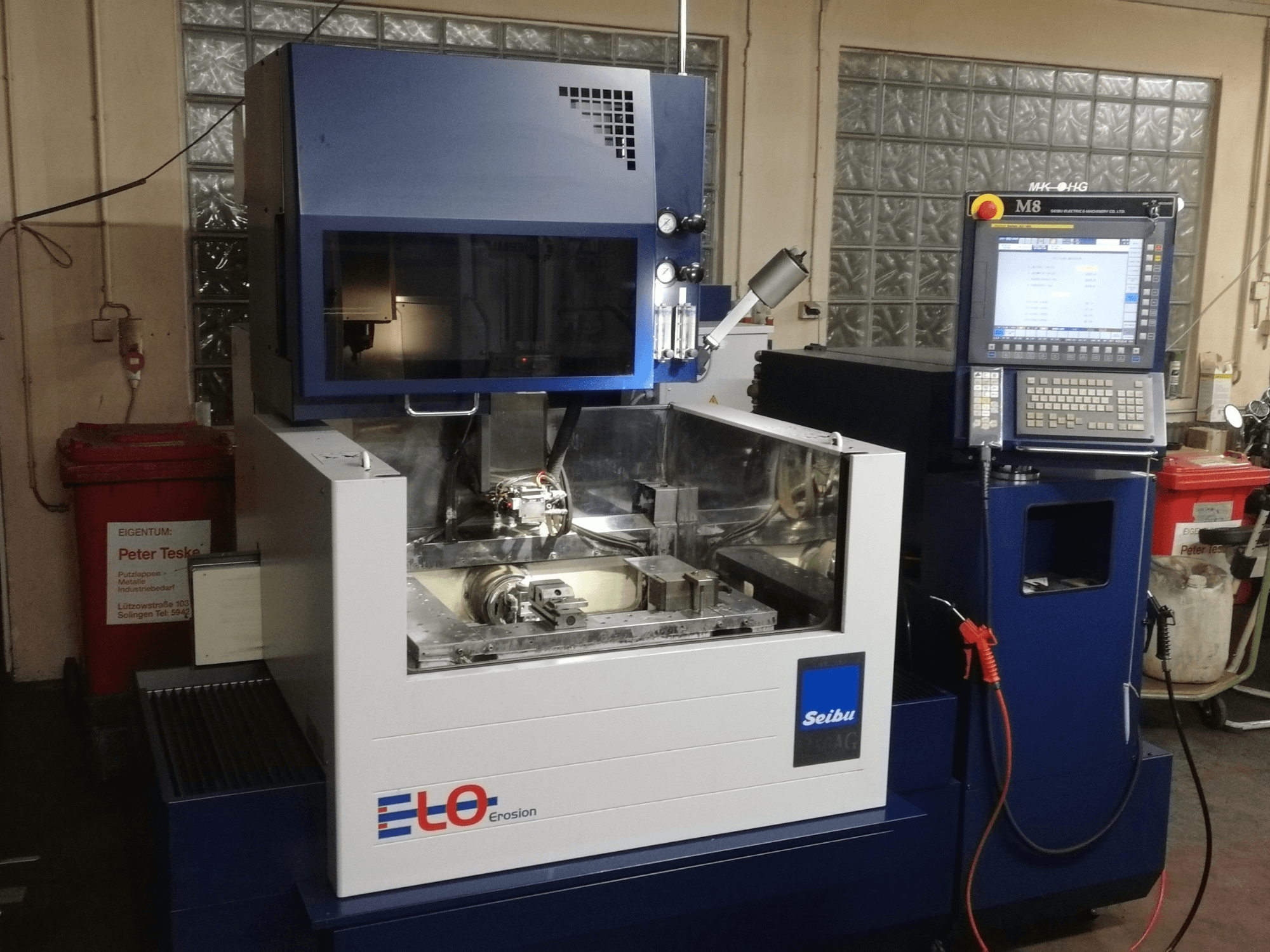

SEIBU M50AG

Photo Gallery

SEIBU - M50AGDE-EDM-SEI-2015-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SEIBU M50AG - Wire EDM For Sale | gindumac.com

Show in original language

This 3-axis SEIBU M50AG wire EDM machine was manufactured in 2015. It supports workpiece dimensions up to 800x650x300 mm and a maximum weight of 800 kg. Features include a rapid traversing speed of 1200 mm/min and a fine increment capability of 0.0001 mm for precise machining. If you are looking to get high-quality EDM capabilities, consider the SEIBU M50AG machine we have for sale. Contact us for more information about this machine.

Overview

brand: SEIBU
year: 2015
MODEL: M50AG
production hours: 3600
application type: EDM
Location: Germany
machine type: Wire EDM Machine

Technical Information - SEIBU M50AG

Dimensions

Machine Depth: 1915 mm
Machine Height: 2070 mm
Machine Weight: 3400 kg

Movement

Number of Axes: 3

Additional Information

Maximum workpiece dimensions (W × D × H): 800 × 650 × 300 mm
- Note: only coaxial flushing available for heights ≥ 250 mm
Maximum workpiece weight: 800 kg
Drive system: AC servo drives
Linear axes (X/Y)
- Travels: X 500 mm (right/left), Y 350 mm (forward/backward)
- Traversing speeds: rapid 1,200 mm/min; medium 100 mm/min; slow 10 mm/min
- Smallest increment (step): 0.0001 mm
Upper head (Z-axis)
- Drive system: AC servo drive
- Travel (up/down): 310 mm
Tapering device (U/V axes)
- Drive system: AC servo drives
- Travels (upper head): U 120 mm (right/left), V 120 mm (forward/backward)
- Traversing speeds: rapid 1,200 mm/min; medium 100 mm/min; slow 10 mm/min
- Smallest increment (step): 0.0001 mm
- Taper angle: standard up to ±32°; at 120 mm cutting height: ±10°; optional (at 40 mm cutting height): ±45°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
