CHARMILLES - Robofil 240 CCDE-EDM-CHA-2003-00001

Rs. 1,656,315
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

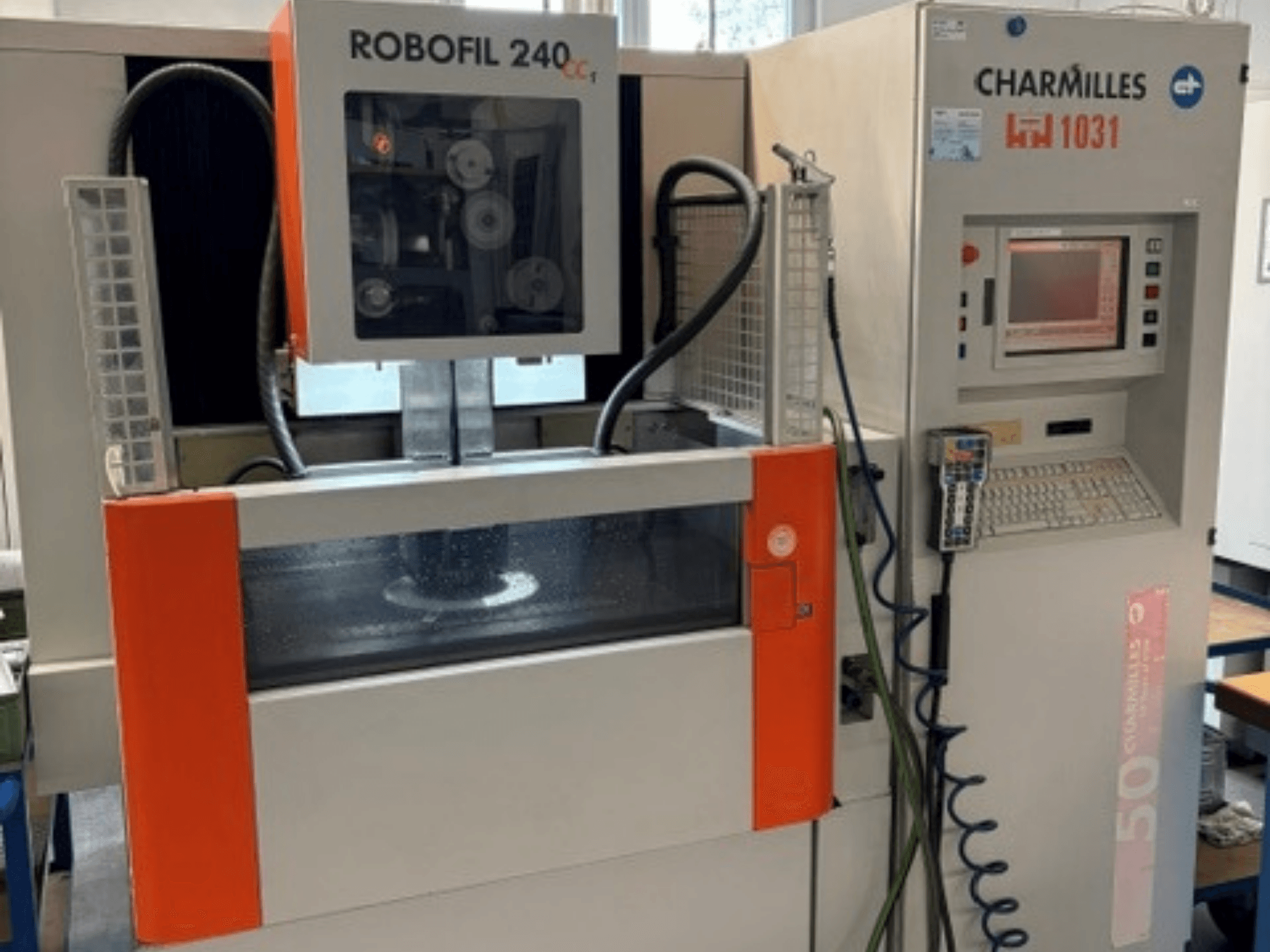

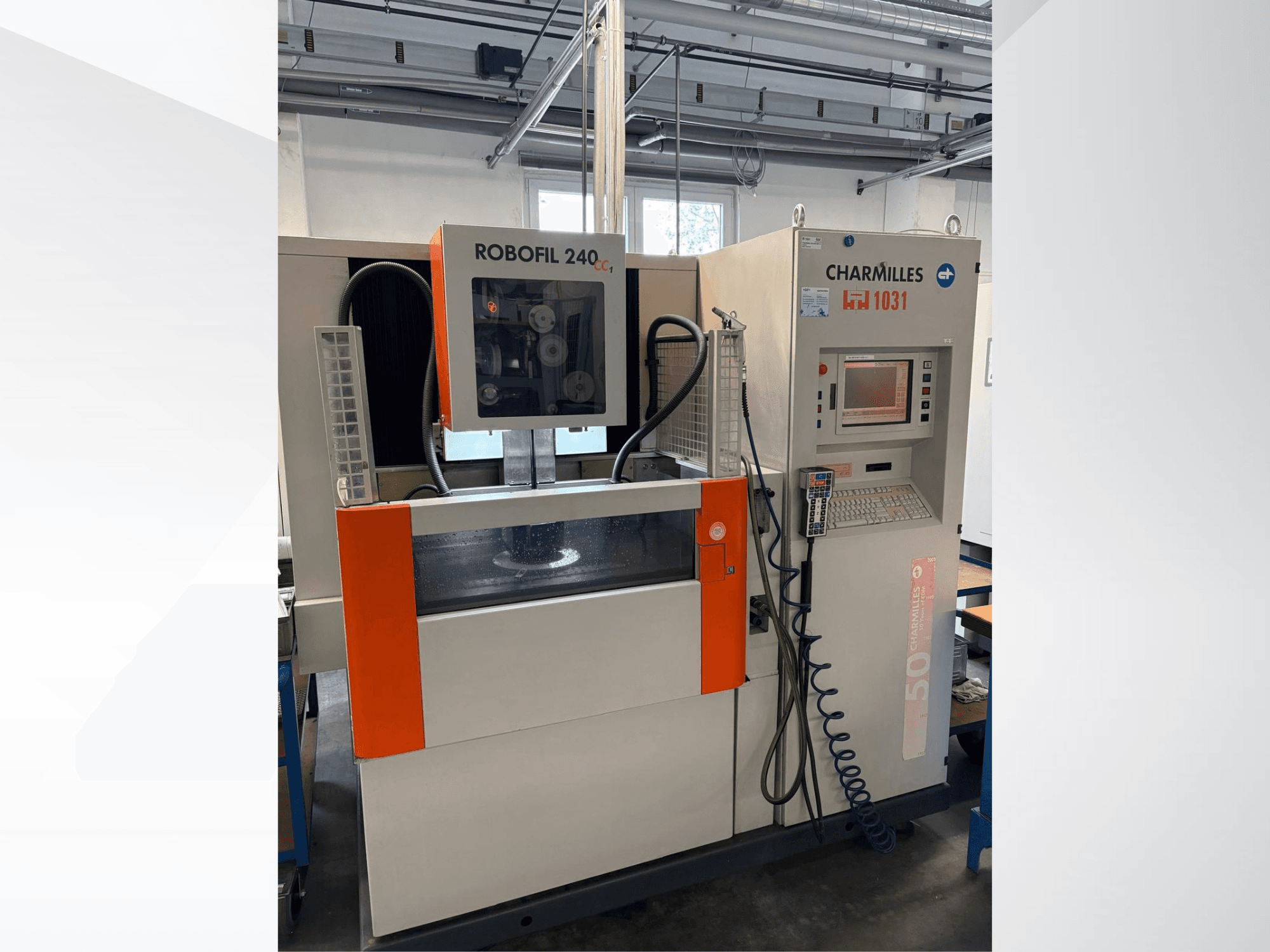

This 3-axis CHARMILLES Robofil 240 CC was manufactured in 2003. It features a travel range of 350 x 220 x 220 mm and can accommodate workpieces up to 1000 x 550 mm with a maximum weight of 750 kg. The machine has a robust table size of 680 x 450 mm. If you are looking to get high-quality wire EDM capabilities, consider the CHARMILLES Robofil 240 CC machine we have for sale. Contact us for further details.

Overview

  • brand: CHARMILLES
  • year: 2003
  • MODEL: Robofil 240 CC
  • production hours: 97916
  • application type: EDM
  • Location: Germany
  • machine type: Wire EDM Machine

Technical Information - CHARMILLES Robofil 240 CC

Movement

  • Number of Axes: 3
  • X-axis Travel: 350 mm

Technical Specification

  • Max. Wire Diameter: 0.3 mm
  • Min. Wire Diameter: 0.15 mm

Additional Information

- X/Y/Z Travel Range: 350 x 220 x 220 mm

- Table Dimensions: 680 x 450 mm

- Max. Workpiece Dimensions: 1000 x 550 mm

- Max. Workpiece Weight: 750 kg

- Machine Weight: approx. 3 t (2100 kg on nameplate)

- Dimensions: 2020 x 2050 x 2000 mm

- Electrical Phase: 3 ~ Phases

- Frequency: 50 / 60 Hz

- Voltage: 400 Volts

- Amperage: 18 A

- Power Capacity: 12 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
