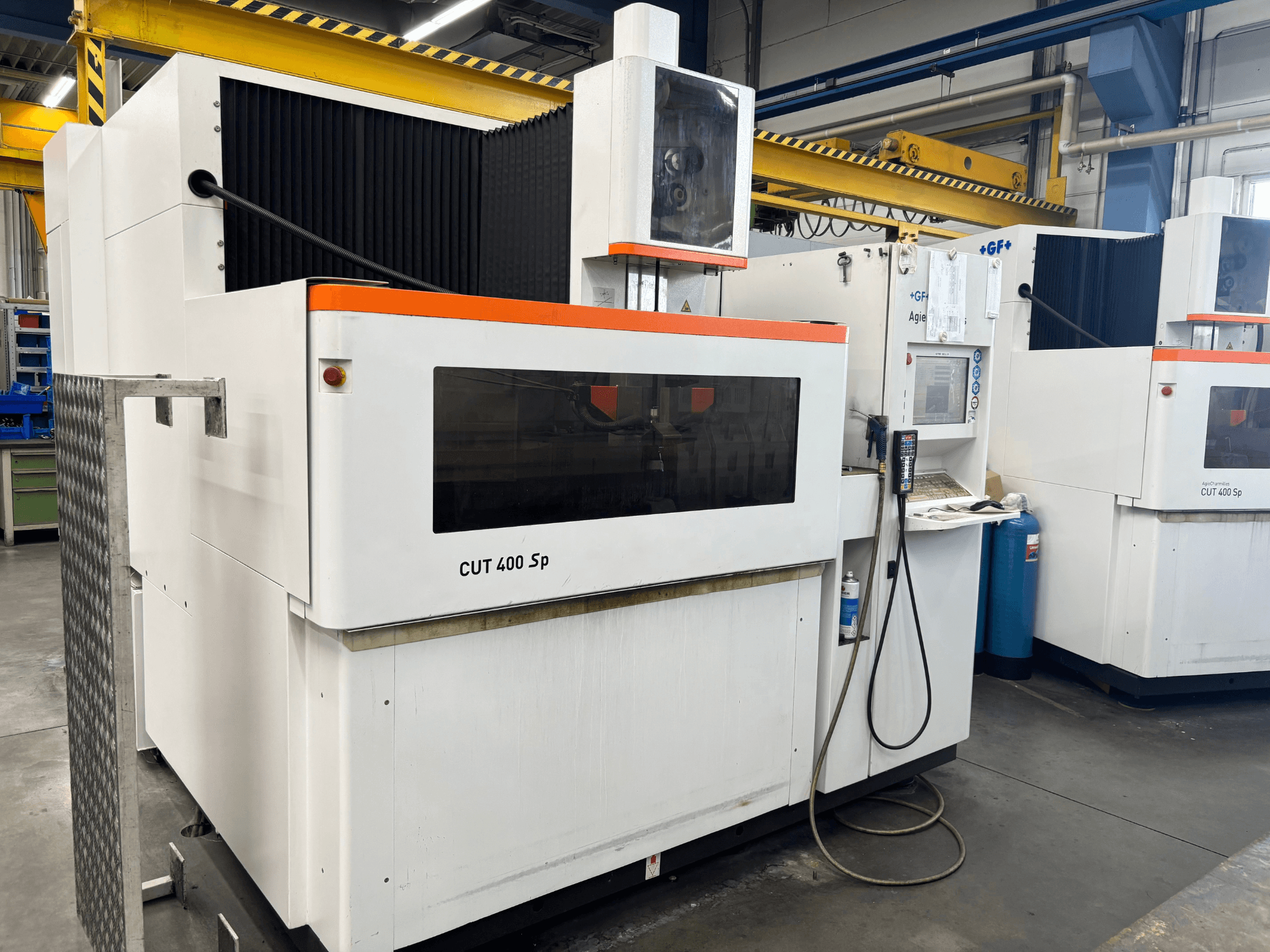

+GF+ - AGIECHARMILLES CUT 400 SpDE-EDM-GFX-2014-00001

- Overall Dimensions (L x W x H): 2670 x 2870 x 2645 mm

- Total Weight without Dielectric: 6300 kg

- Total Weight with Dielectric: 8040 kg

- Max Noise Level: 76 dB

- Sliding Door: Yes

- Worktable Dimensions: 1240 x 800 mm

- Max Workpiece Dimensions: 1450 x 900 x 510 mm

- Max Workpiece Weight: 3000 kg

- Max Dielectric Level: 520 mm

- Axis Travel X, Y, Z: 800 x 550 x 510 mm

- Axis Travel U, V: 800 x 550 mm

- Taper Angle / Height: ±30°/510 mm (Option ±45°/510 mm)

- Taper Tapering Kit: Kit for 45° taper cut (Kit für 45° Konikschnitt)

- Measurement Resolution X, Y, U, V, Z: 0.05 µm

- Axis Speed: 0...3000 mm/min

- Dielectric Type: Deionized water

- Dielectric Total Volume: 1700 L

- Dielectric Temperature Control: Automatic setting ±1°C

- Filter Cartridges: 4

- Cooling System: Water / Water heat exchanger

- Wire Diameter: Ø 0.2...0.33 mm

- Standard Wire Guides: Closed guides Ø 0.25 mm

- Wire Guide Set: Taper Expert Ø 0.250 mm (for CUT X00/FI X4)

- Automatic Threading: Yes

- Permissible Wire Spool Weights: 8-25 kg

- Generator Type: CLEANCUT

- Three-Phase Input Voltage: 380/400 V ±10%

- Mains Frequency: 50 or 60 Hz

- Max / Required Power: 12 kVA

- Min Roughness: Ra 0.2 µm (carbide) / 0.28 µm (steel)

- User Interface: AC CUT HMI

- Operating System: Windows XP

- Display: 15" LCD

- Connectivity: E-Connectivity, Ethernet, USB

- Operating Ambient Temperature: 15...30 °C (20 ± 1 °C for optimal precision)

- Max Relative Humidity: 40...80%

- Compressed Air: 6-7 bar
