- ➤ Used +GF+ AgieCharmilles AGIECUT PROGRESS V4 | Wire EDM

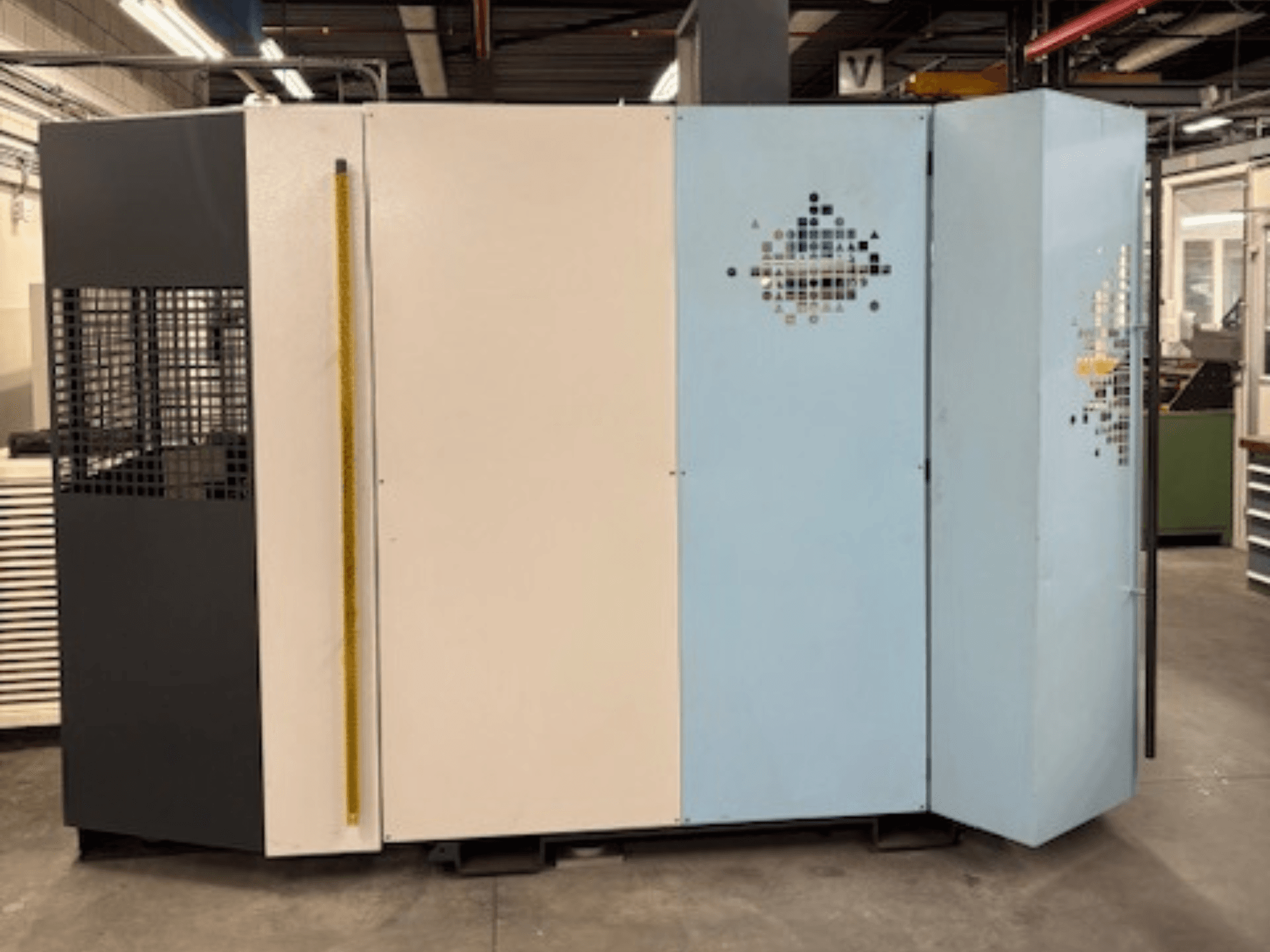

This 5-axis +GF+ AgieCharmilles AGIECUT PROGRESS V4 was manufactured in 2007. It features a maximum workpiece dimension of 1,300 mm x 1,000 mm x 510 mm and can handle a maximum workpiece weight of 3,000 kg. The machine offers impressive axis travels, including X-axis travel of 800 mm and Y-axis travel of 550 mm. If you are looking to get high-quality wire EDM capabilities, consider the +GF+ AgieCharmilles AGIECUT PROGRESS V4 machine we have for sale. Contact us for further details.
Overview
- brand: +GF+
- year: 2007
- MODEL: AgieCharmilles AGIECUT PROGRESS V4
- production hours: 56908
- application type: EDM
- Location: Netherlands
- machine type: Wire EDM Machine
Technical Information - +GF+ AgieCharmilles AGIECUT PROGRESS V4
Dimensions
- Machine Height: 510 mm
- Machine Length: 1300 mm
- Machine Width: 1000 mm
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 550 mm
- Z-axis Travel: 525 mm
Technical Specification
- Max. Wire Diameter: 0.3 mm
- Min. Wire Diameter: 0.1 mm
Additional Information
Capacity & workpiece dimensions:
Max. workpiece size (L x W x H): 1,300 mm x 1,000 mm x 500/510 mm
Max. workpiece weight: 3,000 kg
Axis travels:
U/V-axis: ±70 mm
Max. taper angle: ±30° at 500 mm height
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
