AGIE - Progress 3DE-EDM-AGI-2006-00002

Rs. 3,272,559
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

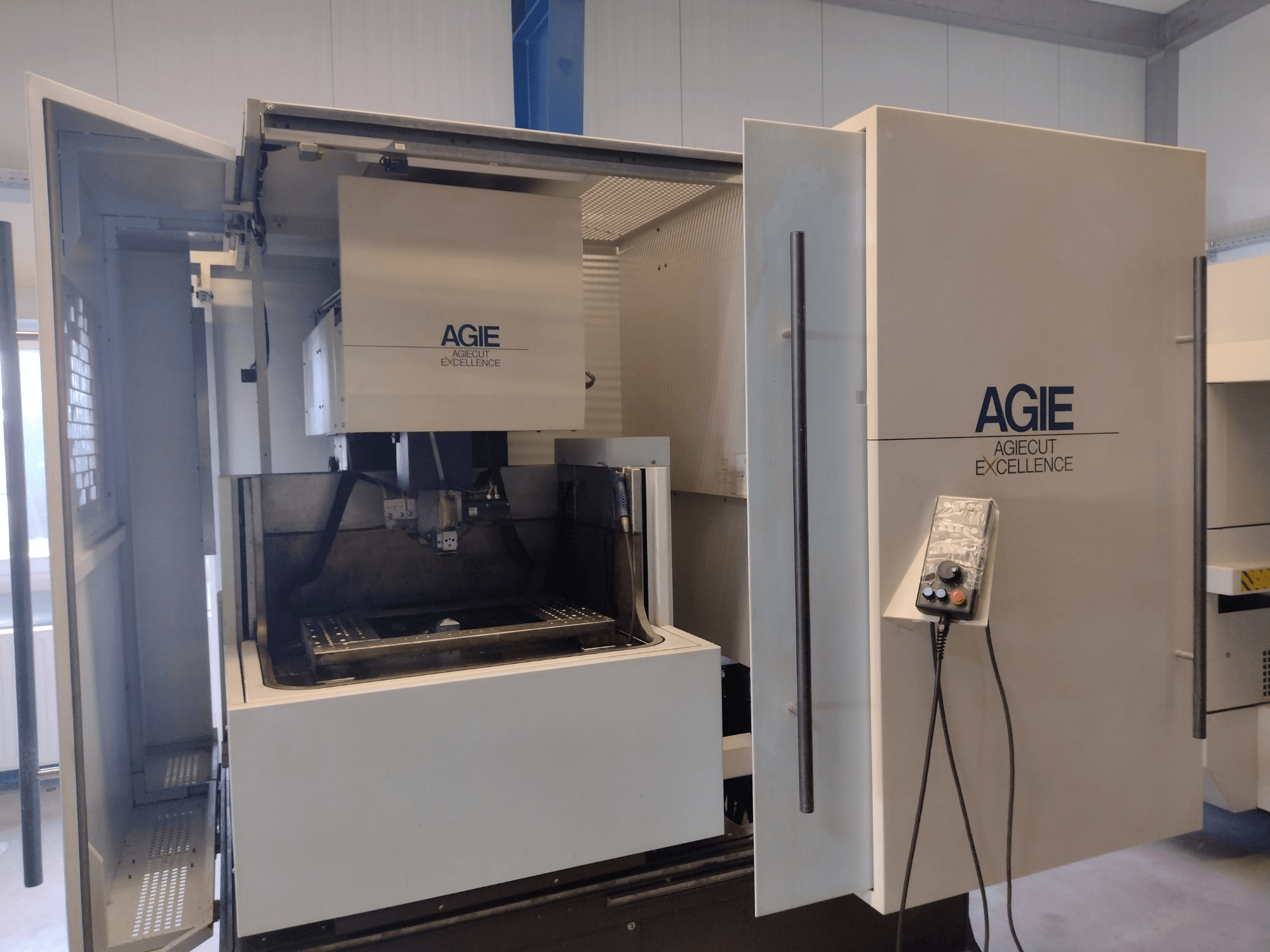

This 5-axis AGIE Progress 3 wire EDM machine was manufactured in 2006. It features travel paths of 500 x 350 x 430 mm and a maximum workpiece weight of 800 kg. The machine is equipped with the AGIE Vision control unit and includes various near-new clamping systems and a wire alignment device. If you are looking to get high-quality erosion capabilities, consider the AGIE Progress 3 wire EDM machine we have for sale. Contact us for further details.

Overview

  • brand: AGIE
  • year: 2006
  • MODEL: Progress 3
  • production hours: 3422
  • application type: EDM
  • Location: Germany
  • machine type: Wire EDM Machine
  • control unit brand: AGIE

Technical Information - AGIE Progress 3

Control Unit

  • Control Brand: AGIE
  • Control Model: Vision

Dimensions

  • Machine Weight: 3900 kg
  • Table Load: 800 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 500 mm
  • Y-axis Travel: 350 mm
  • Z-axis Travel: 430 mm

Technical Specification

  • Max. Wire Diameter: 0.33 mm
  • Min. Wire Diameter: 0.1 mm

Additional Information

  • Max. Workpiece Weight: 400 / 800 kg

  • Max. Taper Angle: 30° / 100 mm

  • Space Requirement (L x W x H): 2.8 x 2.4 x 2.3 m

  • Power Frequency: 50 Hz

  • Nominal Power: 12.1 kVA

  • Rated Current: 17.5 A

  • Short-circuit Current: 10 kA

  • Cabinet / Generator Type: CABINET (IPG-CNC 02D)

  • Additional Equipment & Accessories: Various near-new clamping systems, wire alignment device

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
