CHARMILLES - ROBOFIL 240 CCDE-EDM-CHA-2003-00002

Rs. 2,217,672
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

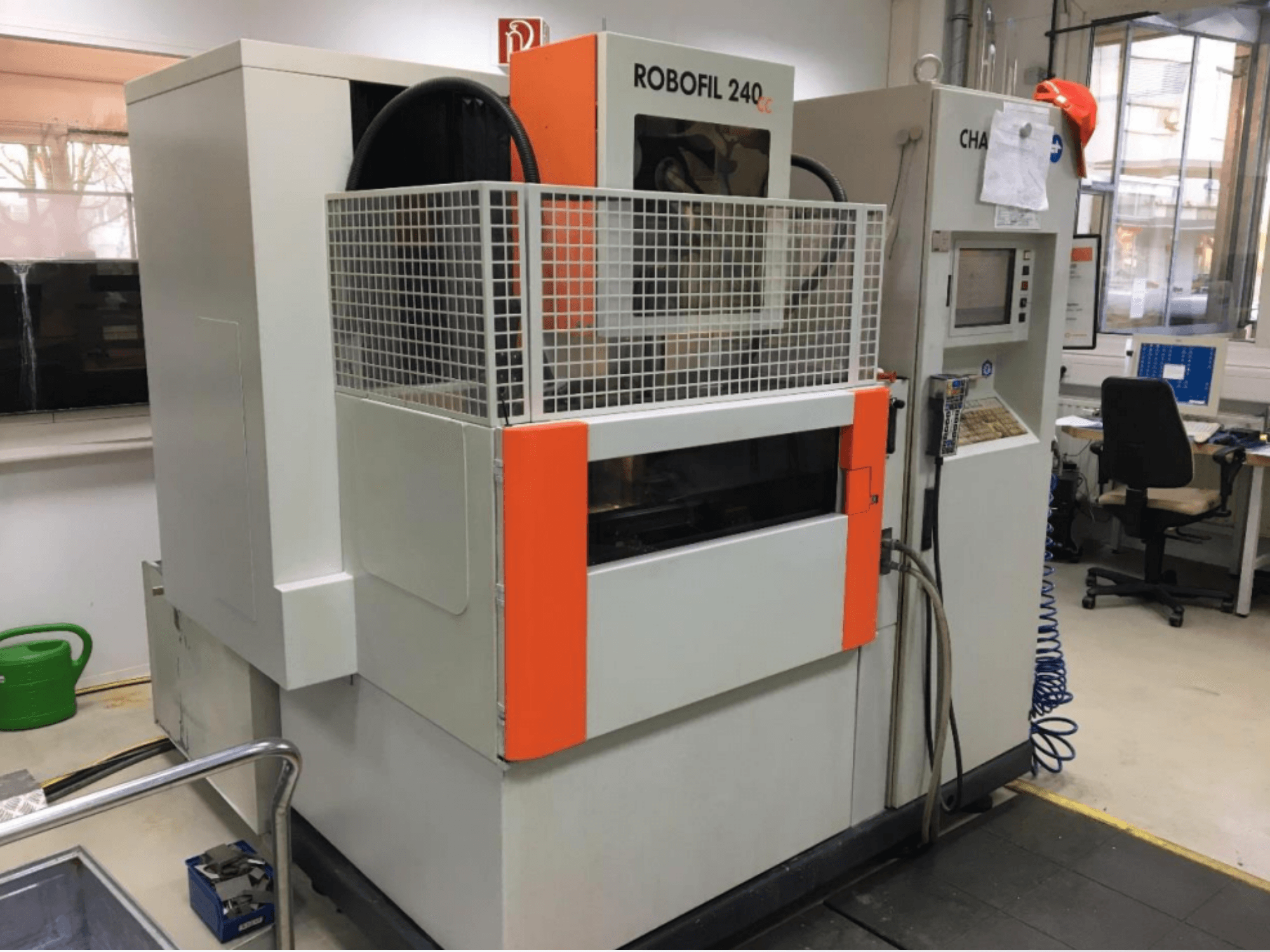

This 3-axis CHARMILLES ROBOFIL 240 CC was manufactured in 2003. It has a machine weight of 2100 kg and operates on a voltage of 400 V with a current of 18 A. If you are looking to get high-quality wire EDM capabilities, consider the CHARMILLES ROBOFIL 240 CC machine we have for sale. Contact us for further details.

Overview

  • brand: CHARMILLES
  • year: 2003
  • MODEL: ROBOFIL 240 CC
  • application type: EDM
  • Location: Germany
  • machine type: Wire EDM Machine

Technical Information - CHARMILLES ROBOFIL 240 CC

Dimensions

  • Machine Height: 2000 mm
  • Machine Length: 2020 mm
  • Machine Weight: 2100 kg
  • Machine Width: 2050 mm
  • Table Length: 450 mm
  • Table Width: 680 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 350 mm
  • Y-axis Travel: 220 mm
  • Z-axis Travel: 220 mm

Technical Specification

  • Max. Wire Diameter: 0.3 mm
  • Min. Wire Diameter: 0.15 mm

Additional Information

- Max. Workpiece Dimensions: 1000 x 550 mm

- Max. Workpiece Weight: 750 kg

- Dimensions: 2020 x 2050 x 2000 mm

- Electrical Phase: 3 ~ Phases

- Frequency: 50 / 60 Hz

- Voltage: 400 Volts

- Amperage: 18 A

- Power Capacity: 12 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
