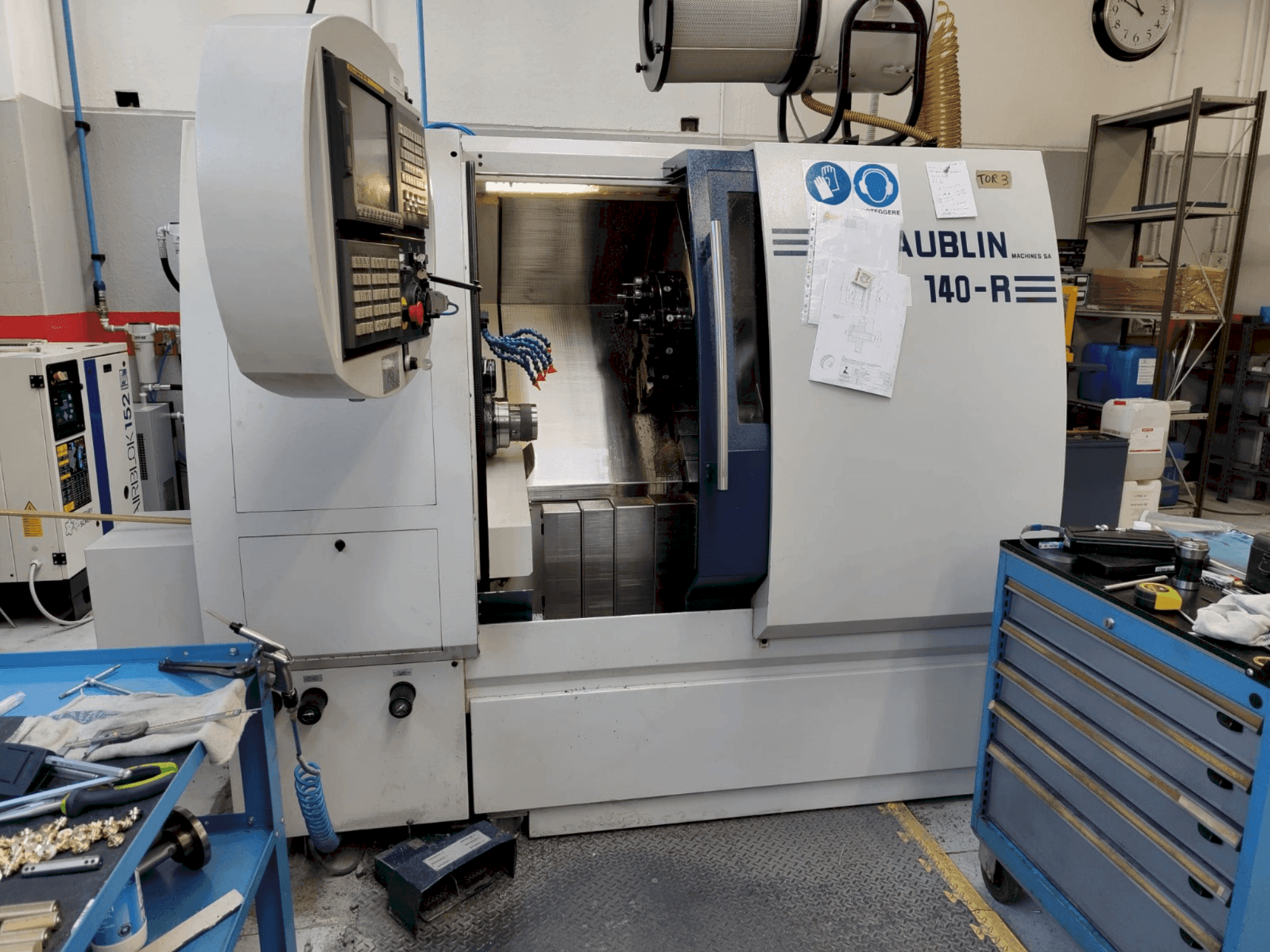

SCHAUBLIN 140R CNC

Photo Gallery

SCHAUBLIN - 140R CNCIT-TUR-SCH-2008-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SCHAUBLIN 140R CNC For Sale | gindumac.com

Show in original language

This 4-axis Schaublin 140R CNC horizontal turning machine was manufactured in 2008. It features a CNC Fanuc 18i-TB control, a maximum turning diameter of 300 mm, and a spindle speed range of 50 – 5,000 rpm. Equipped with a Y-axis and sub-spindle, it offers a turret with 12 driven tool stations. If you are looking to get high-quality turning capabilities, consider the Schaublin 140R CNC machine we have for sale. Contact us for more information.

Overview

brand: SCHAUBLIN
year: 2008
MODEL: 140R CNC
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - SCHAUBLIN 140R CNC

Control Unit

Control Brand: FANUC
Control Model: 18i-TB

Dimensions

Machine Depth: 2650 mm
Machine Height: 1840 mm
Machine Weight: 3040 kg

Movement

Number of Axes: 4

Technical Specification

Spindle Speed: 5000 RPM

Additional Information

Additional equipment

Machine supplied with manuals and CE conformity declaration

Machine Benefits

Technical Machine Benefits

Driven tool stations: 12
Max tool size: 20 x 20 mm
Driven tool speed: 30 – 6000 rpm
Tailstock a2-3
Possibility to mount 3-jaw chuck: yes
Recommended max turning diameter: 200 mm
Coolant system: tank capacity 180 l, pump capacity 20 l/min, pump pressure 6 bar
Max turning diameter: 300 mm
Recommended max turning diameter: 250 mm
Equipped with y-axis and sub-spindle

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
