➤ Used Takamaz X-180 For Sale | gindumac.com

Show in original language

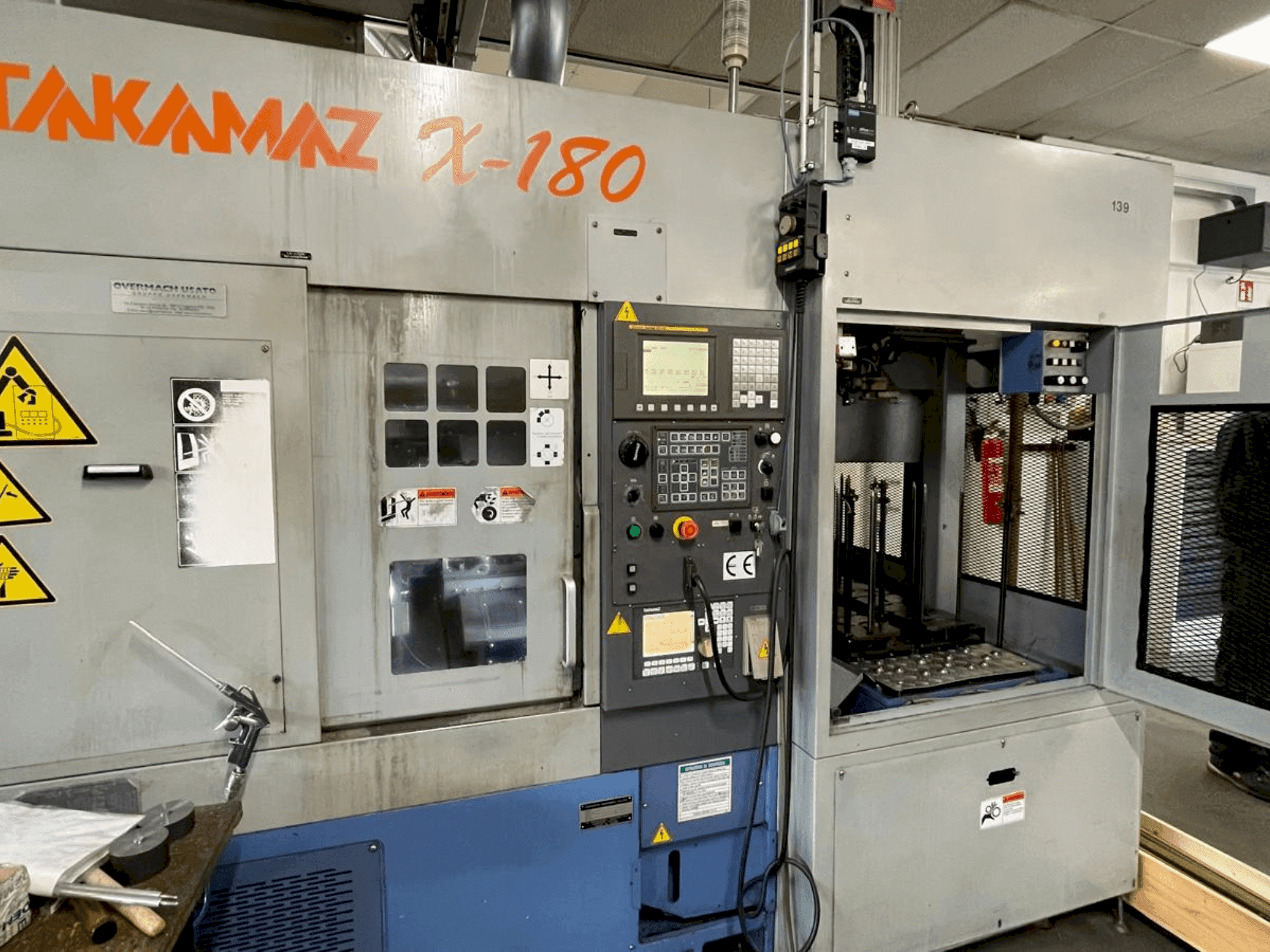

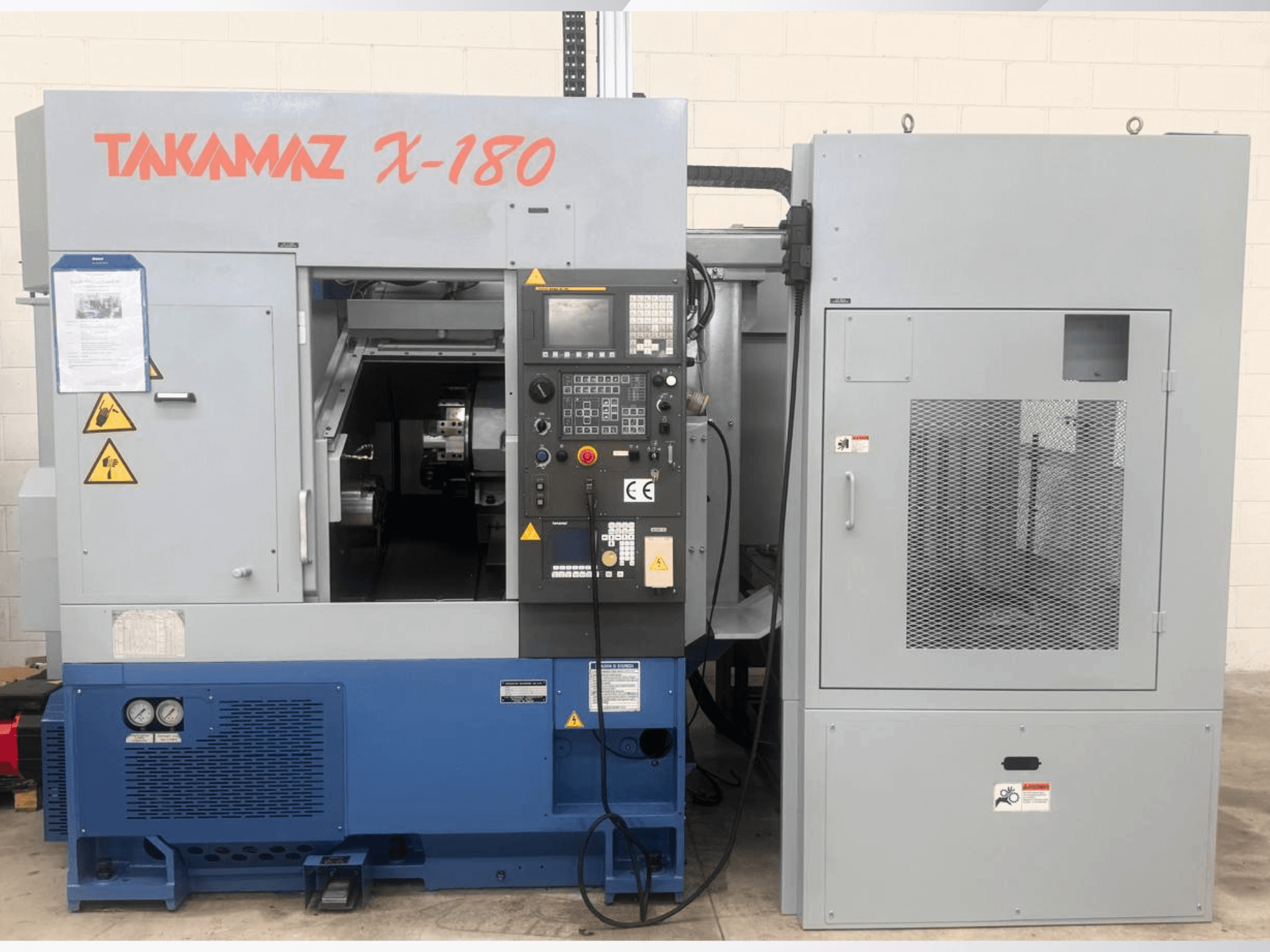

This 3-axis Takamaz X-180 horizontal turning machine was manufactured in 2008. It features a maximum turning diameter of Ø 210 mm, a turning length up to 230 mm, and a bar diameter capacity of Ø 51 mm. The spindle supports speeds up to 3,500 RPM, enhancing productivity. Ideal for precision machining, it includes a 12-station revolver turret and rapid traverse speeds of 24 m/min on both X and Z axes. Contact us for more information about this machine.

Overview

brand: Takamaz
year: 2008
MODEL: X-180
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Takamaz X-180

Control Unit

Control Brand: FANUC
Control Model: Series 0i-TC

Dimensions

Machine Depth: 1835 mm
Machine Height: 1525 mm
Machine Weight: 3500 kg

Movement

Number of Axes: 3
X-axis Travel: 175 mm
Z-axis Travel: 330 mm

Technical Specification

Spindle Speed: 3500 RPM

Additional Information

Additional equipment

Chuck dimensions: 8 inches

Machine Benefits

Technical Machine Benefits

Maximum turning diameter: Ø 210 mm // maximum turning length: 230 mm (collet 278 mm)
Maximum bar diameter: Ø 51 mm (Ø 42 mm)
Spindle nose: jis a2-6
Spindle bearing internal diameter: Ø 100 mm
Type: revolver with 12 stations
Tool dimensions: 25 mm²
Internal diameter of boring toolholder: Ø 32 mm
Tools maximum speed: max. 3600 min⁻¹
Drilling capacity: Ø 12 mm // milling cutter capacity: Ø 16 mm
Tapping capacity: m8

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
