Romi M 420

Photo Gallery

Romi - M 420PL-TUR-ROM-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

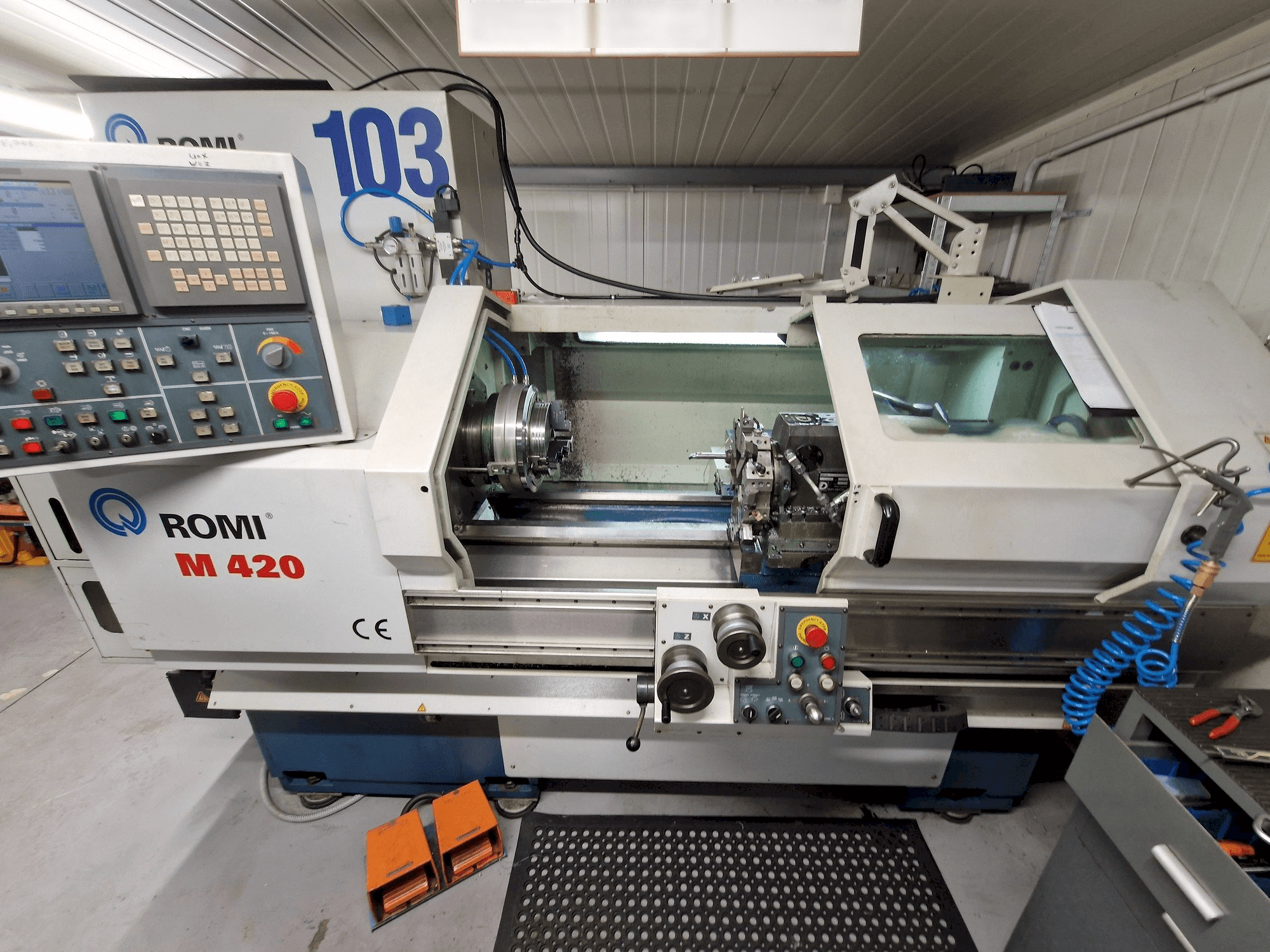

This Romi M 420 Programmable Universal Lathe was built in the year 2002 in Brazil and has 40849 power on hours, of which 1359 are machine hours. It is equipped with a GE-Fanuc Series 21i-TB control unit. The machine has a spindle speed of 4 - 4000 rpm, and is in good working condition, ready for tests.

Overview

brand: Romi
year: 2002
MODEL: M 420
production hours: 1359
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Romi M 420

General Data

Measurements width: 2720 mm
Measurements depth: 1270 mm
Measurements height: 1948 mm
Machine weight: 2850 kg

Control Unit

Brand: FANUC
Model: Series 21i-TB

Main drive

Spindle speed range: 4 - 4000 1/MIN

Movement

X-AXIS Movement: 220 mm
X-AXIS Feed Force: 7.5 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Feed Force: 10 m/min

Media

Main electronic connection: 220V x 3 / 50/60 Hz
Power consumption: 15 kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

New pneumatic chuck schunk
He machine is in very good condition ready for tests

Technical Machine Benefits

Center height 215 mm
Distance between ends 1000 mm
Turning diameter over bed 430 mm
Turning diameter via cross slide 204 mm
Turning diameter over the screed wings 400 mm
Spindle before dim 53 mm
Turret duplomatic bsv-n 120-8/25-220/380-60
Number of tools 8
Max. Turning length (z axis) 1000 mm
Removable chip collecting box, hand-operated tailstock

Extra Information

Tools are not included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
