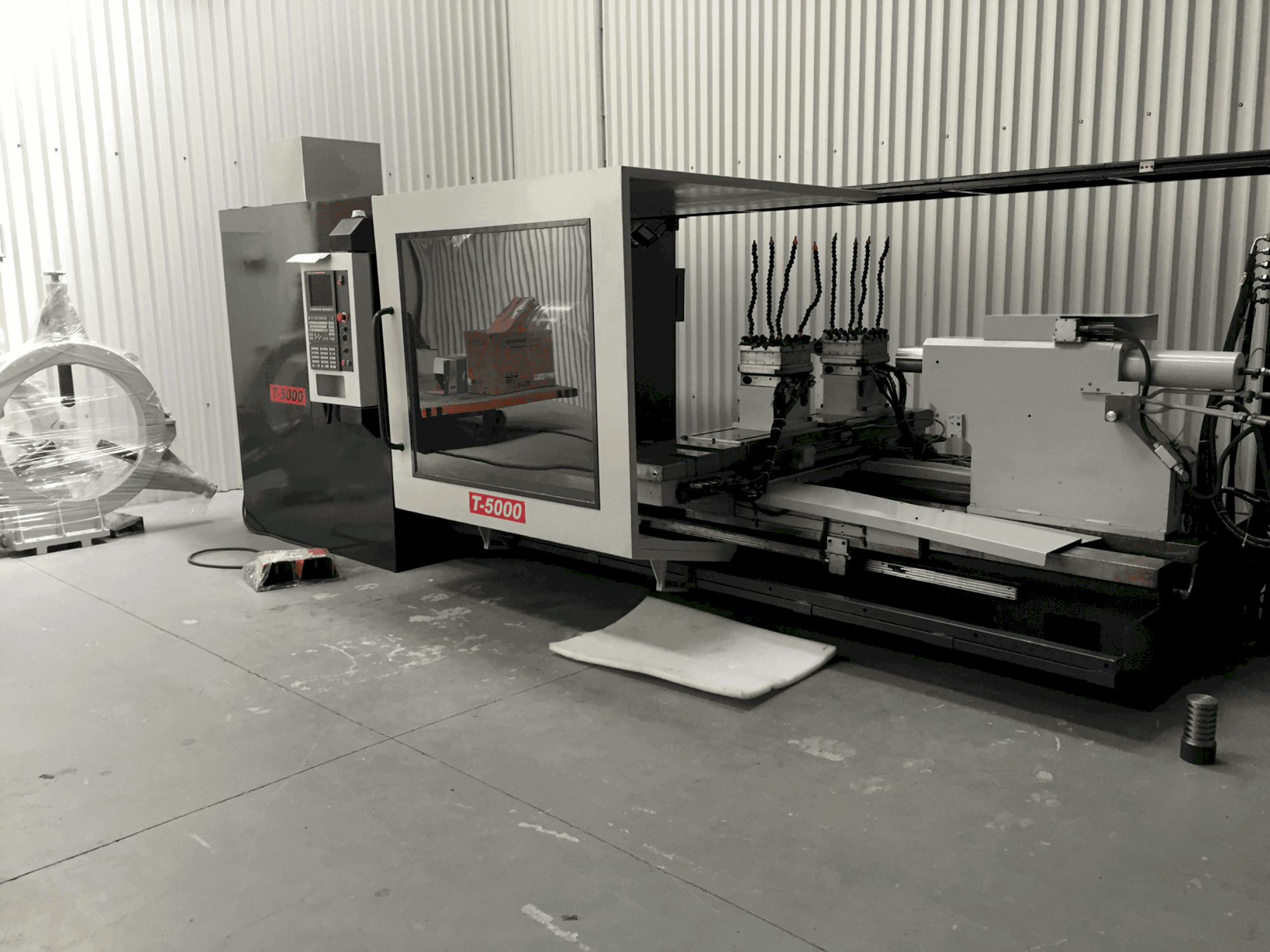

Front view of RAIS T 5000  machine

RAIS T 5000

RAIS - T 5000

2015

Rs. 8,560,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This RAIS T 5000 Lathe was manufactured in the year 2015. It is equipped with a Fanuc 0i- TD controller with 10.4”LCD monitor. The machine disposes of a main spindle and 2 tool turrets. It is included with a chip conveyor and a standard equipment. Contact us anytime for further questions.

Overview

  • brand: RAIS
  • year: 2015
  • MODEL: T 5000
  • application type: Turning
  • Location: Greece
  • machine type: Lathe
  • availability: Immediately
  • GINDUMAC ID: GR-TUR-RAI-2015-00001

Technical Information

General Data

  • Measurements width: 1810 mm (with electrical cabinet)
  • Measurements depth: 4500 mm
  • Measurements height: 1900 mm
  • Machine weight: 14800 kg

Controller

  • Brand: Fanuc
  • Model: Series oi-TD

Main drive

  • Number of spindles: 1
  • Spindle speed range: 160-1000 1/MIN
  • Spindle motor power: 50ΗΡ
  • Spindle bore: 250 mm
  • Number of axis: 2

Movement

  • X-AXIS Movement: 350 MM
  • Z-AXIS Movement: 1000 MM

Turret

  • Number of turrets: 2

Media

  • Chip conveyor: Yes

    Additional equipment

    • - Hydraulic station.
    • - Programmable hydraulic tailstock.
    • - Programmable hydraulic tailstock.
    • - Automatic lubrication system
    • - Coolant system.
    • - Cooler for electric cabinet.
    • - RS232 and Flash Card port.
    • - Transformer 380/220V.
    • - Machine maintenance tool kit.
    • - Set of manuals with CD.

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tailstock travel (programmable) 380mm
        • - Length with chip conveyor 5. 230mm
        • - Distance between centers 2. 200mm
        • - Max. Swing over bed Ø860mm // swing over cross slide Ø600mm
        • - Axial power of the cross axis (x) 1. 196dan // axial power of the longitudinal axis (z) 1. 196dan
        • - Spindle nose asa 20’’ // speed ranges (automatic) 14
        • - Maximum cross travel 370mm //max. Longitudinal travel 1. 000mm
        • - Feed speed of work and threading 0 - 8. 000mm/1’ // rapid feed speed 9. 000mm/1’
        • - Ø of ball screws - x axis 40x10mm Ø // of ball screws - y axis 40x10mm
        • - Tool size 32x32mm // tool holders - standard with rules vdi 3425 sheet 3 // time taking of releasing lock and lift 0,5sec // time taken for one revolution 5sec
      • Qualitative Machine Benefits:
        • - Installed power approx. 29kw
        • - 10. 4”lcd controller monitor

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
