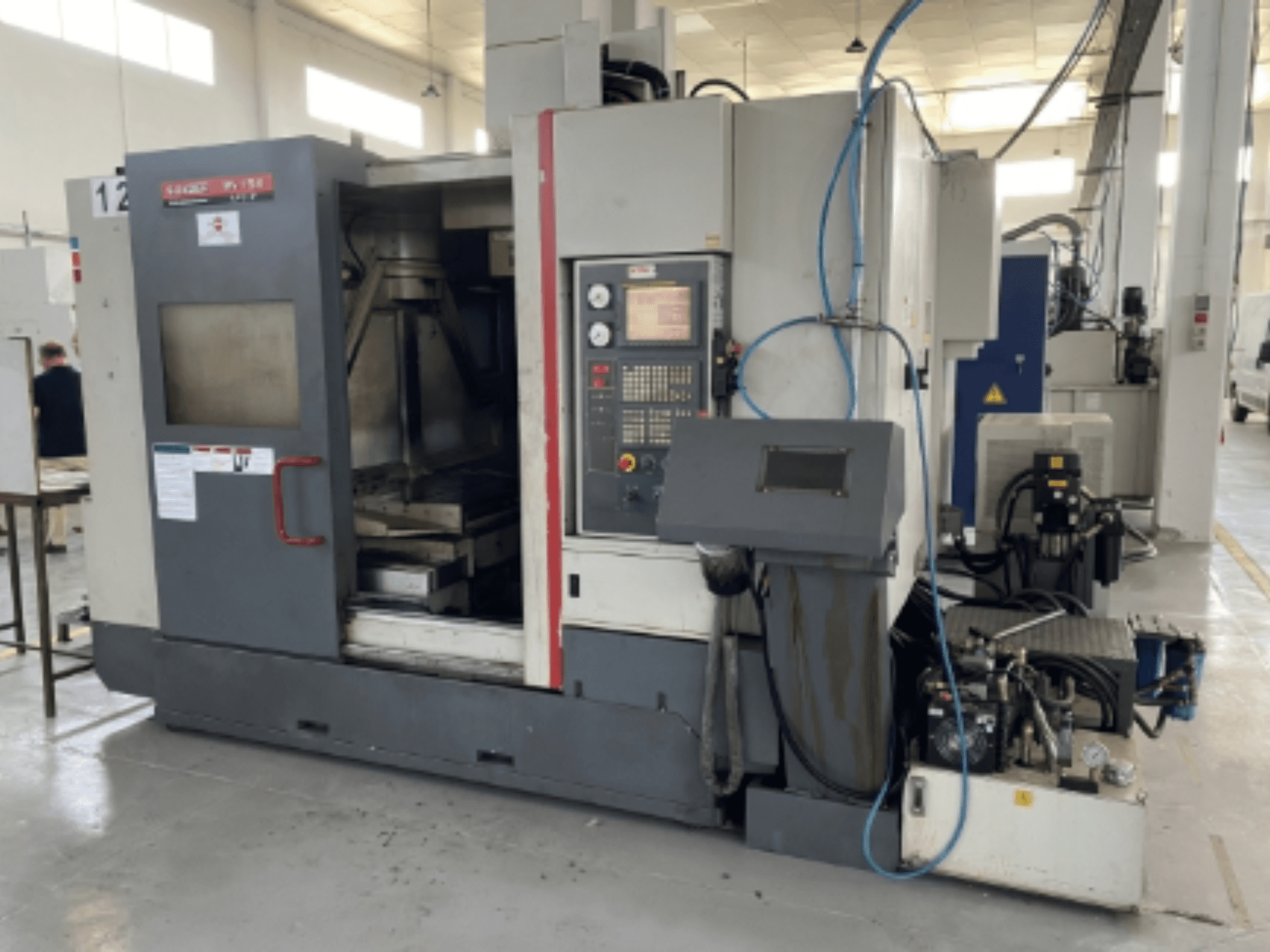

This 3-axis Quaser MV154APC-912 was manufactured in 2008. It features a generous X-axis travel of 700 mm, Y-axis travel of 500 mm, and Z-axis travel of 560 mm. The machine is equipped with a BT-40 spindle taper and a maximum spindle speed of 12,000 rpm. If you are looking to get high-quality machining capabilities, consider the Quaser MV154APC-912 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Quaser
- year: 2008
- MODEL: MV154APC-912
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Quaser MV154APC-912
Control Unit
- Control Brand: FANUC
- Control Model: 18i MB
Dimensions
- Machine Weight: 7500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 700 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 560 mm
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: BT 40
Additional Information
Table dimensions: 800 x 500 mm
External dimensions: 4100 x 2510 x 2940 mm
Additional equipment
Chip conveyor
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
