Used Vertical Machining Centre Quaser MV204-CU/12 - 2007 - for sale | gindumac.com

Show in original language

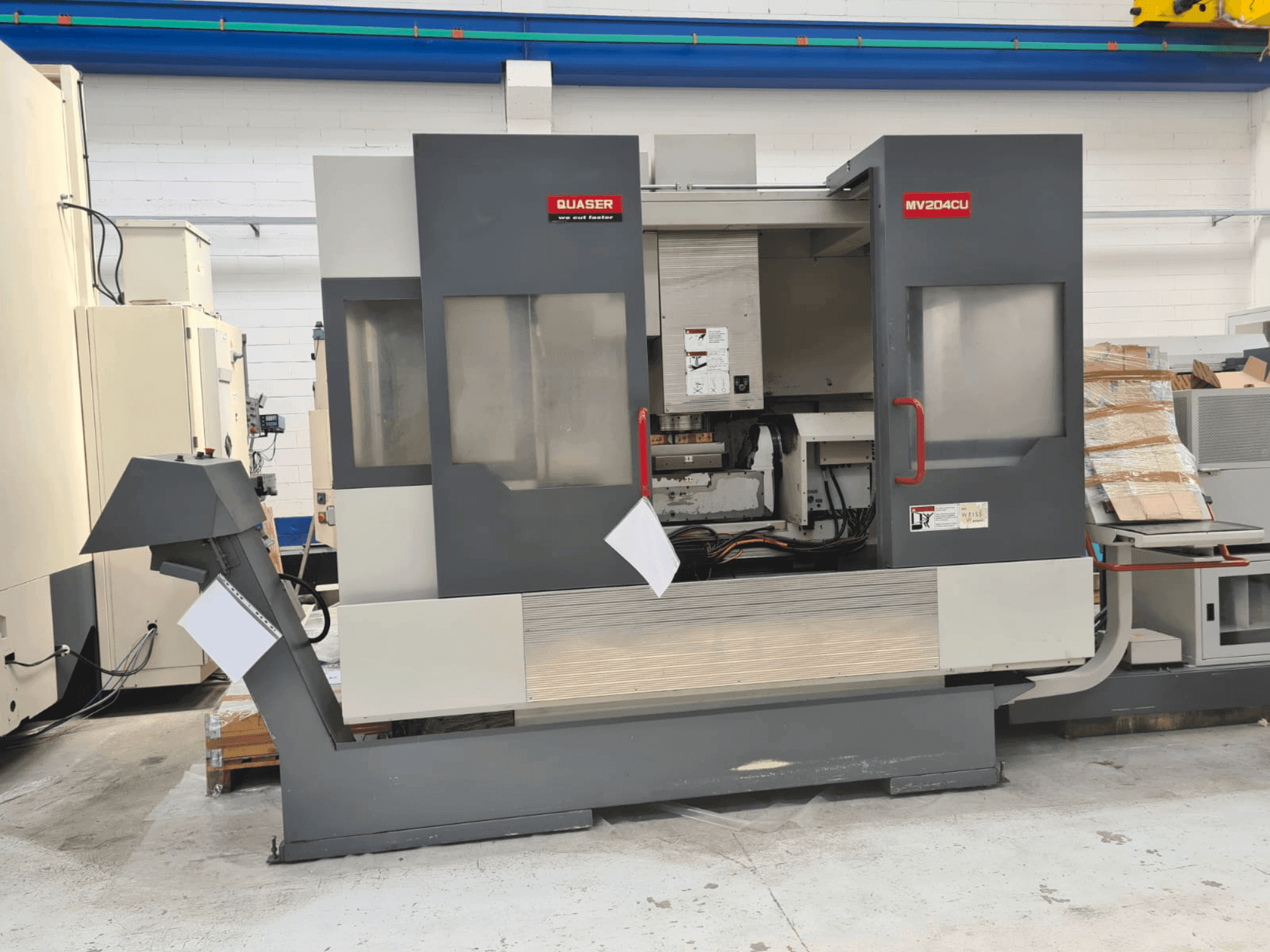

This 5-Axis QUASER MV204-CU/12 vertical machining center was manufactured in 2007. It boasts X, Y, and Z-axis travels of 700 mm, 660 mm, and 480 mm respectively, with a table diameter of 500 mm and a 32-position tool magazine. The machine features a SK 40 spindle taper, coolant inside the spindle, and rapid traverse rates of 30 meters/min. Ideal for intricate milling tasks, the QUASER MV204-CU/12 machine we have for sale ensures high precision and efficiency. Contact us for further details.

Overview

brand: Quaser
year: 2007
MODEL: MV204-CU/12
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - Quaser MV204-CU/12

General Data

Measurements width: 3500mm
Measurements depth: 3000mm
Measurements height: 2900mm
Machine weight: 9500 kg

Main drive

Spindle motor power: 15 KW
Number of axis: 5

Movement

X-AXIS Movement: 700mm
Y-AXIS Movement: 660mm
Z-AXIS Movement: 480mm

Table

Outer length: 400mm
Outer width: 400mm
Min distance between vertical spindle and table: 150mm
Max distance between vertical spindle and table: 610mm
Table load: 265 kg

Tools

Slots in storage: 32
Type of tool holder: SK40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rotation range of the a axis: +/- 110°
- - C axis rotation range: 360°
- - Rapid x y z: 30 metres/min
- - Table diameter: Ø 500 mm
- - Coolant inside the spindle
- - Belt chip conveyor
- - Electronic handwheel
- - Optical lines

Extra information

- machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
