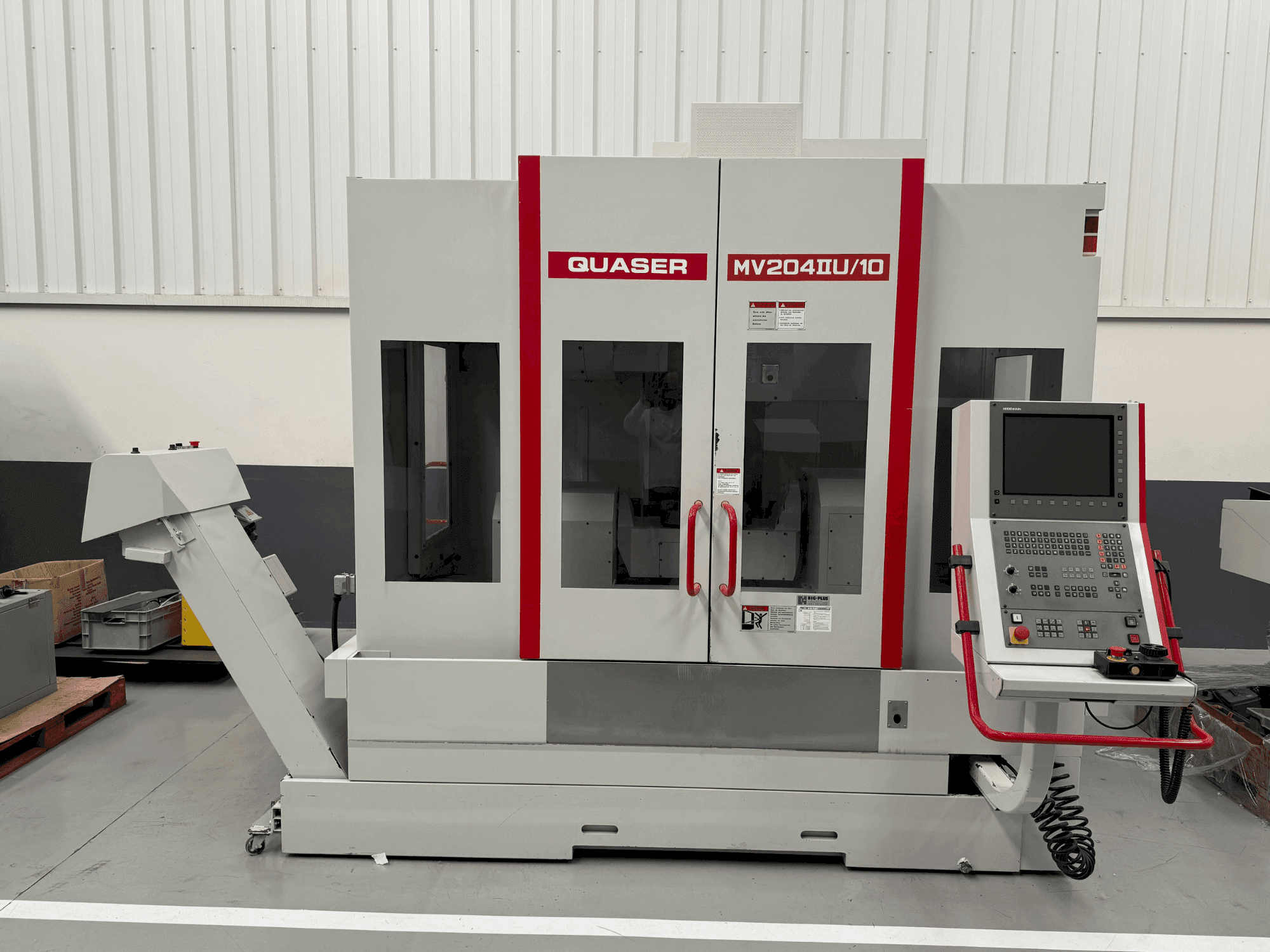

Front view of Quaser MV 204 IIU/10 machine
Front view of Quaser MV 204 IIU/10 machine

Quaser - MV 204 IIU/10ES-MIL-QUA-2002-00001

Rs. 7,699,809
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis Quaser MV 204 IIU/10 vertical machining centre was manufactured in 2002. It features a tilting spindle head with a range of ±110°, a spindle speed of 10,000 rpm, and a spindle motor power of 15/33 kW. The machine includes a 32-position ATC, chip conveyor, and internal coolant at 20 bar. Consider the opportunity to buy this Quaser MV 204 IIU/10 vertical machining centre. Contact us for more information about this machine.

Overview

  • brand: Quaser
  • year: 2002
  • MODEL: MV 204 IIU/10
  • application type: Milling
  • Location: Spain
  • machine type: Vertical Machining Centre

Technical Information - Quaser MV 204 IIU/10

Dimensions

  • Machine Depth: 2220 mm
  • Machine Height: 2855 mm
  • Machine Weight: 8200 kg

Movement

  • X-axis Travel: 700 mm
  • Y-axis Travel: 590 mm
  • Z-axis Travel: 480 mm

Technical Specification

  • Spindle Power: 15 kW
  • Spindle Speed: 10000 RPM

Additional Information

Machine Benefits

Technical machine benefits:

  • Power On Hours: 13975 h

  • Spindle Hours: 6258 h

  • Table 1 Size: Ø 280 mm

  • Table 2 Size: Ø 500 mm

  • Table 3 Size: 600 × 400 mm

  • Max Weight Allowed on Table: 265 kg

  • Min-Max Distance Over Table: 150–760 mm

  • Tilting Spindle Head Range (A Axis): ±110°

  • A Axis Positioning: 0.001°

  • Table Turning (C Axis): 360°

  • C Axis Positioning: 0.001°

  • Rapid Feed X/Y/Z Axis: 32000 mm/min

  • Working Feed X/Y/Z Axis: 15000 mm/min

Additional Equipment

  • ATC Tool Changer: Included

  • ATC Positions: 32

  • ATC System: RANDOM

  • Max Tool Length: 280 mm

  • Max Tool Weight: 7 kg

  • Chip Conveyor: Included

  • Internal Coolant 20 Bar: Included

  • Coolant Tank Capacity: 280 l

  • Electrical Cabinet Coolant: Included

  • Flushing Gun: Included

  • Portable Handwheel: HEIDENHAIN HR 310

  • Full Guarding: Included

  • Total Installed Power: 30 kVA

Extra information

  • Spindle Speed: 10000 rpm

  • Spindle Taper: BT-40

  • Spindle Motor Power: 15 / 33 kW

  • Spindle Torque: 192 / 189 Nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
