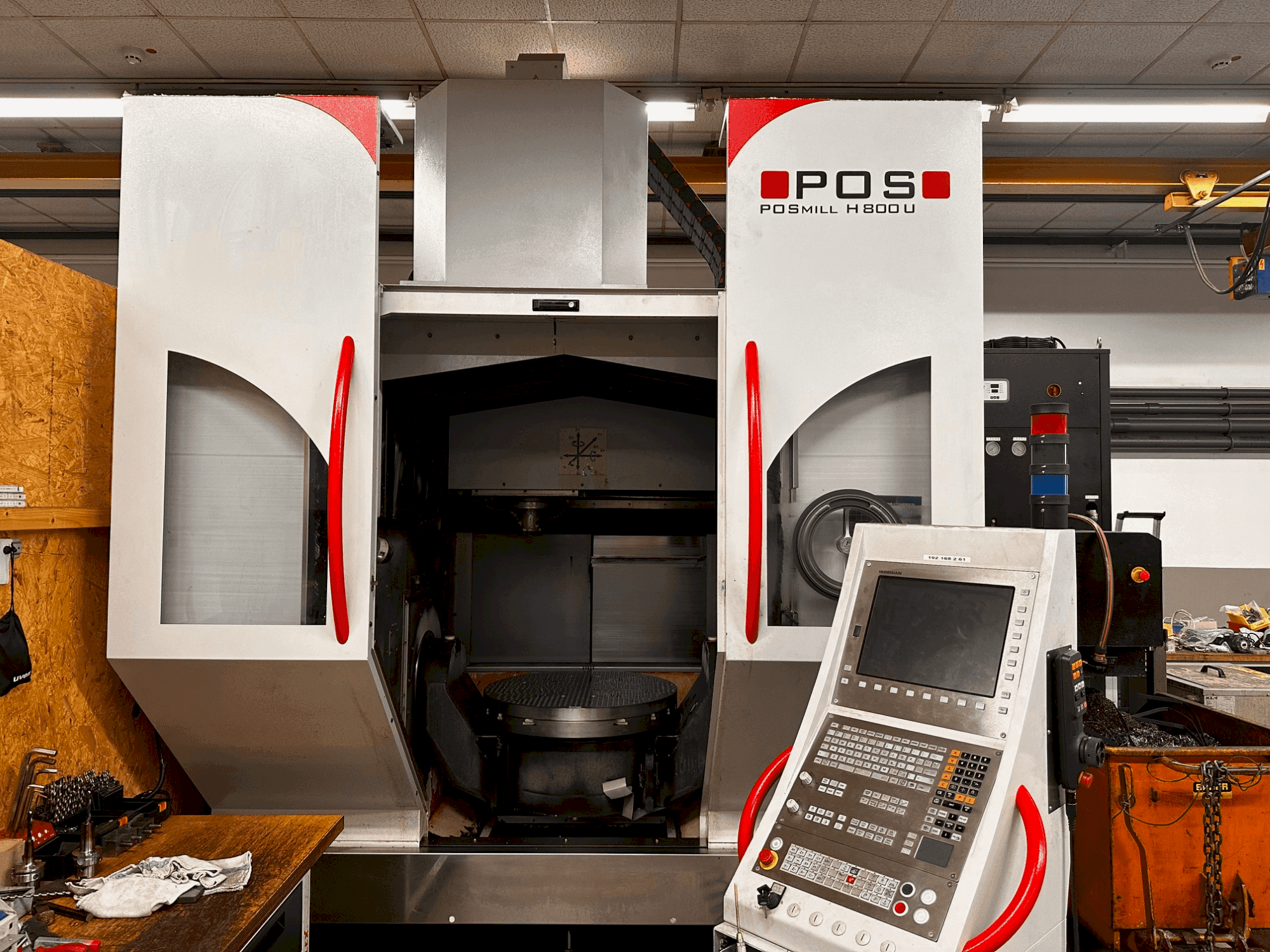

Front view of POSmill H800U machine
Front view of POSmill H800U machine

POSmill - H800UDE-MIL-POS-2017-00002

Rs. 14,682,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis POSmill H800U was manufactured in 2017. A universal machining center featuring a Kessler spindle with 18,000 rpm and a turning diameter of 800 mm. It includes a Heidenhain 530 control and is fully equipped with Heidenhain measuring systems on all axes. Noteworthy is the 96 tool changer positions and the option to purchase a Meusburger zero-point clamping system plate. Consider the opportunity to buy this POSmill H800U universal machining center. Contact us for more information.

Overview

  • brand: POSmill
  • year: 2017
  • MODEL: H800U
  • production hours: 11200
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - POSmill H800U

General Data

  • Machine weight: 20000 KG

Control Unit

  • Brand: HEIDENHAIN
  • Model: iTNC 530

Main drive

  • Spindle speed range: 18000 1/MIN
  • Number of axis: 5

Movement

  • X-AXIS Movement: 670 mm
  • Y-AXIS Movement: 820 mm
  • Z-AXIS Movement: 600 mm

Tools

  • Type of tool holder: HSK-A63

Media

  • Chip conveyor: Yes

    General Data

    • Machine weight: 20000 KG

    Control Unit

    • Brand: HEIDENHAIN
    • Model: iTNC 530

    Main drive

    • Spindle speed range: 18000 1/MIN
    • Number of axis: 5

    Movement

    • X-AXIS Movement: 670 mm
    • Y-AXIS Movement: 820 mm
    • Z-AXIS Movement: 600 mm

    Tools

    • Type of tool holder: HSK-A63

    Media

    • Chip conveyor: Yes

      Additional equipment

      • - Accessories: Zero-point clamping system, chip conveyor

      Additional Information

        Machine Benefits

        • Technical Machine Benefits:
          • - 96 tool changer positions
          • - Pedestal to save space, coolant supply stacked (rare)
          • - Large spindle cooler
          • - Fully equipped with heidenhain measuring systems on all axes
          • - Kessler swing arm, turning diameter 800 mm, fully usable with zero-point system
          • - Internal coolant pressure: 40 bar
          • - Coolant system: water and air external and through spindle, internal coolant pressure 40 bar with 600 liters
          • - Nc swivel rotary table: Ø 800
        • Qualitative Machine Benefits:
          • - New service in april 2025 with rotary union replaced (€8600)

        Extra information

        • - A Meusburger zero-point clamping system plate (new price was €9500) can be purchased upon request. Available for purchase, negotiable.

      *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

      Your account manager:

      Sergi Guardia

      Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

      get in contact

      Payment Terms

      • Payment in advance

      • Asset Financing
