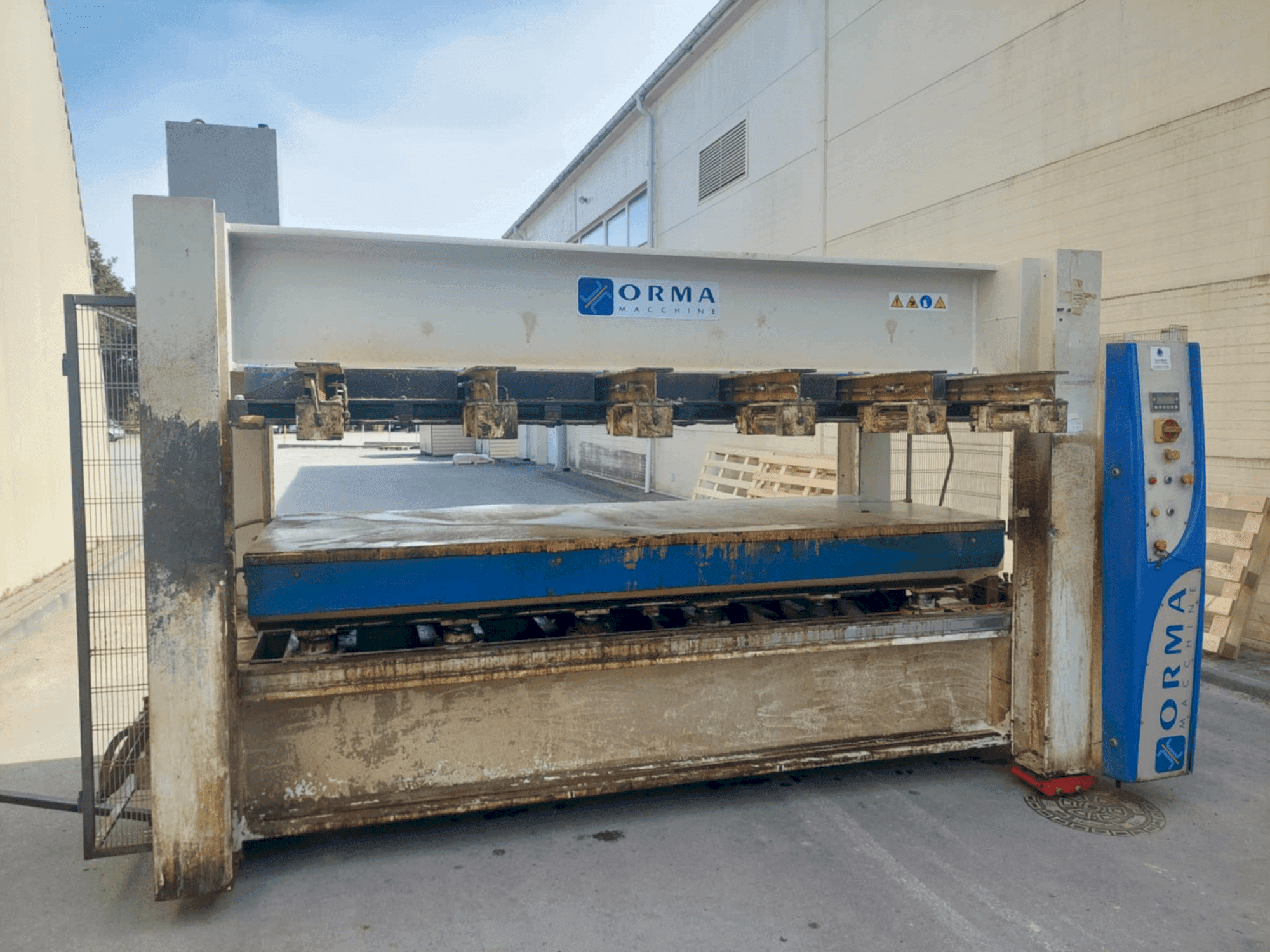

Front view of ORMA NPC/L DIGIT30/13AF-BO machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ORMA NPC/L DIGIT30/13AF-BO

Photo Gallery

ORMA - NPC/L DIGIT30/13AF-BOLT-PRE-ORM-2007-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used ORMA NPC/L DIGIT30/13AF-BO For Sale | gindumac.com

Show in original language

This ORMA NPC/L DIGIT30/13AF-BO was manufactured in 2007. A robust laminating press with a vertical total thrust of 240 tons and platens dimensions of 3000 × 1300 mm. It operates at a temperature of up to 130 °C and features a hydraulic power pack of 4 kW. Consider the opportunity to buy this ORMA NPC/L DIGIT30/13AF-BO laminating press. Contact us for more information about this machine.

Overview

brand: ORMA
year: 2007
MODEL: NPC/L DIGIT30/13AF-BO
application type: Pressing / Laminating
Location: Lithuania
machine type: Laminating Press

Technical Information - ORMA NPC/L DIGIT30/13AF-BO

Dimensions

Machine Depth: 3600 mm
Machine Height: 1800 mm
Machine Weight: 9000 kg

Additional Information

Machine Benefits

Technical Machine Benefits

Voltage: 400 v / 3-phase / 50 hz
Vertical total thrust: 240 tons
Vertical specific pressure: 615 kg/cm²
Vertical platens dimensions: 3000 × 1300 mm
Vertical cylinders: 12 pcs // vertical cylinders diameter: Ø 85 mm
Horizontal total thrust: 30 tons
Horizontal cylinders: 6 pcs // horizontal cylinders diameter: Ø 65/40 mm
Operating temperature: 130 °c
Hydraulic power pack: 4 kw
Thermal power of electric boiler: 18 kw

Extra Information

General Data Condition: Used Status: Working (some oil leaks through vertical cylinders, does not interfere with operation)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
