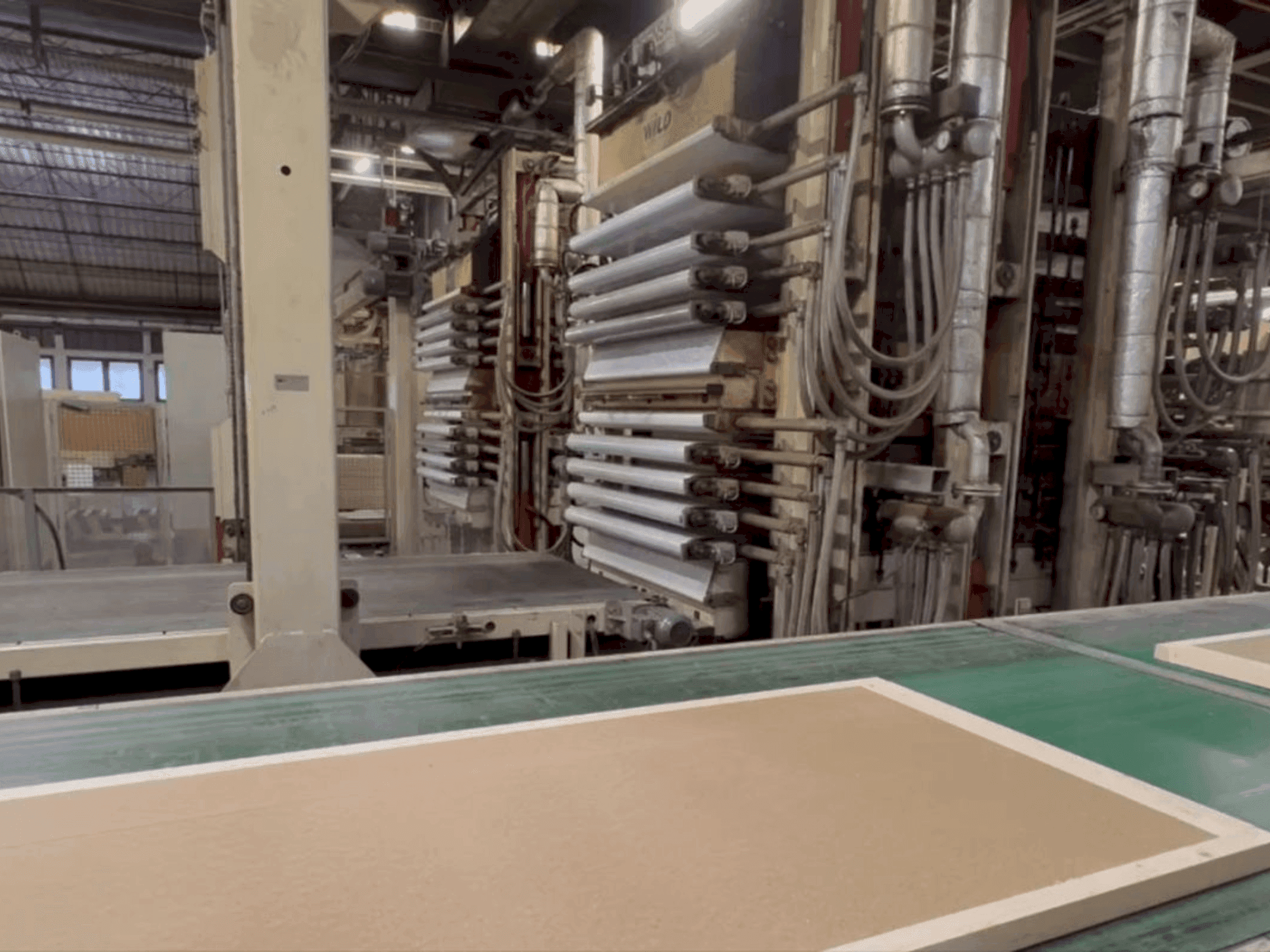

WILD - Door leaf press linePT-COM-WIL-1998-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Dimensions for door production: lengths: 1800 - 2300 mm
  • - Dimensions for door production: widths: 500 - 1300 mm
  • - Dimensions for door production: thicknesses: 35 / 40 / 44 mm

Extra information

• - Consisting of the following areas: Endless door panel gluing with frame laying station Press line with hard fiberboard loading station First area consists of: Portal feeding Angle transfer with rip and cross cut saw Feeding and supply of longitudinal and cross frame parts from magazines Longitudinal cross-cut station for the longitudinal frame parts Connecting station for the frame parts with the door leaf core, equipped with clamping devices Conveyor belt angle transfer with shuttle transfer of the door leaf cores to the glued hardboard panels Second area consists of: Feeding of the hardboard panels Brush cleaning machine Hardener application machine from below Glue application machine from below Disk roller conveyor Angle transfer for the lower hard fiber board Vacuum turning device for the upper hard fiberboard Automatic loading station for hardboard panels and door leaf cores Two door presses with two x four pressing stations each, set up parallel to each other Both presses are loaded at the infeed with one shuttle loading basket Both presses are unloaded at the outfeed with one shuttle unloading basket Angular transfer to the infeed into a hedgehog buffer Angular transfer at the outlet of the hedgehog buffer and feeding for stacking One-sided vacuum destacking with protective plate placement Note: The technical data and descriptions are transcribed from the original order confirmation. The information is for reference only and is not legally binding.

Payment Terms

• Payment in advance

• Asset Financing
