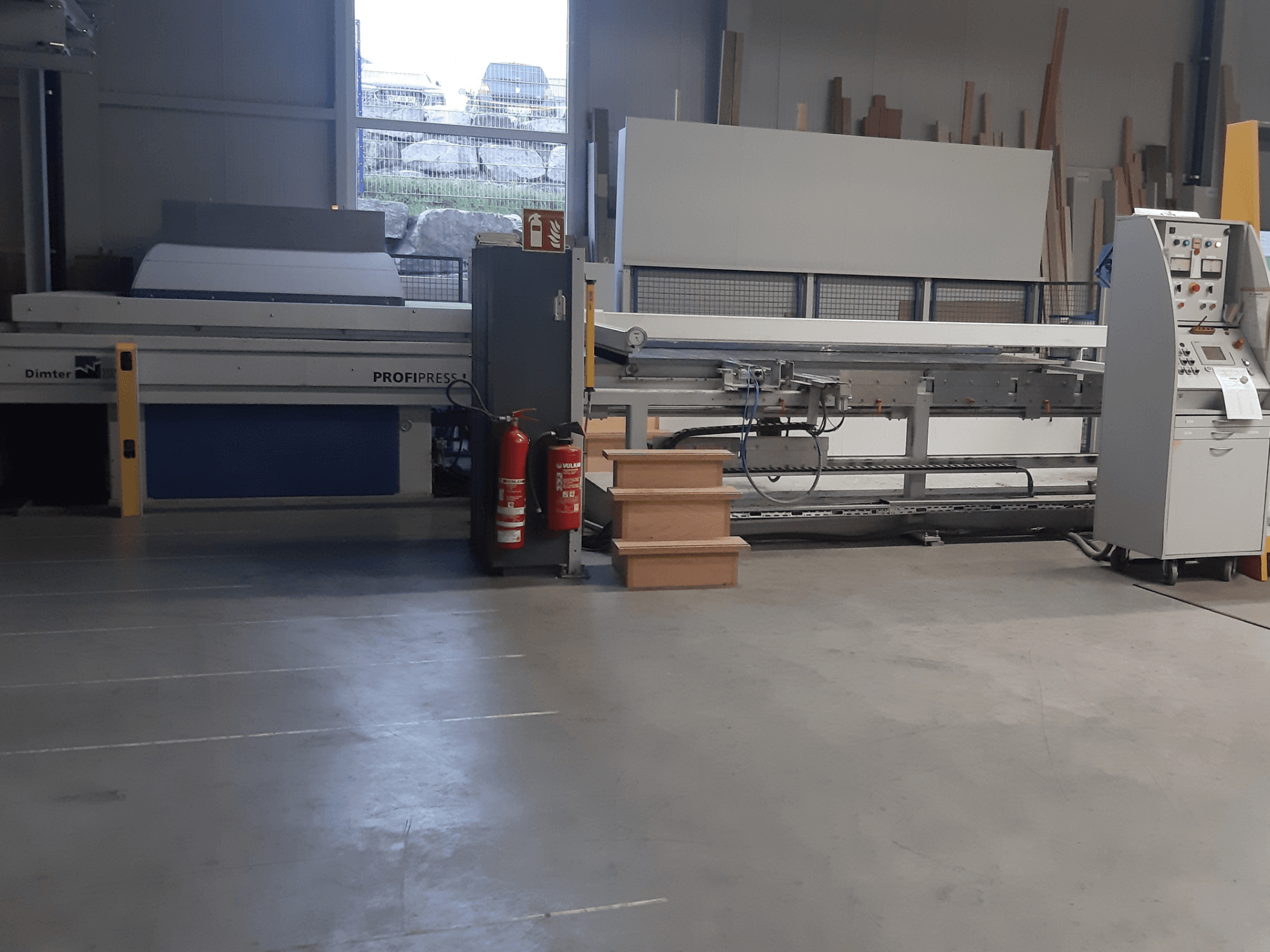

DIMTER - PROFIPRESS L2500DE-PRE-DIM-2007-00001

• Workpiece capacity:

  • Lamella widths (for panels): 30–150 mm

  • Thicknesses: 11–60 mm

  • Input length: 800–2500 mm

  • Panel width: variable, up to max. 1300 mm

  • Filling width per cycle: min. 650 mm / max. 1300 mm

  • Max. filling area per cycle: 3.25 m²

  • Note: Max. usable press width depends on individual lamella widths

  • In multi-lane operation, filling widths may vary by max. 15 mm

  • Minimum contact surface per press filling: ≥ 100 cm²

• Press performance:

  • Specific pressing pressure (at 2500 x 60 mm): up to 1.6 N/mm²

• Press bed and construction:

  • Press bed area: approx. 2500 x 1300 mm

  • Stable base frame with lower press table in stainless steel (ground electrode)

  • Upper pressure plate with hydraulic motor “anti-reb” feature for high vertical pressure and low offset

  • Special hydraulic pressure elements ensure even pressure over the joint and compensate tolerances

  • Quick-change stop ruler sets for panel thicknesses 19–40 mm; hydraulically movable to the current filling width

  • Integrated hydraulic unit for press force and hydraulic motors

• Electrical:

  • Operating voltage: approx. 400 V / 50 Hz

  • Electrical connection value of press (without options): 7 kW

  • Electrical connection value for 40 kW HF generator: 56 kW

• Controls and safety:

  • Control cabinet and control panel

  • Protective cover

Additional equipment

• Collection table extended to 3700 x 1300 mm (with stainless steel wood support)

• Motor-driven multifunctional pusher

• Additional individual pressure elements from above

• Automatic gluing station with precision glue head

• Feed system for different widths

• Camera

• Washing and rinsing device for glue head

• Modem with software for online connection
