MASTER - PUR-1400PL-PRE-MAS-2016-00001

Rs. 8,820,169
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

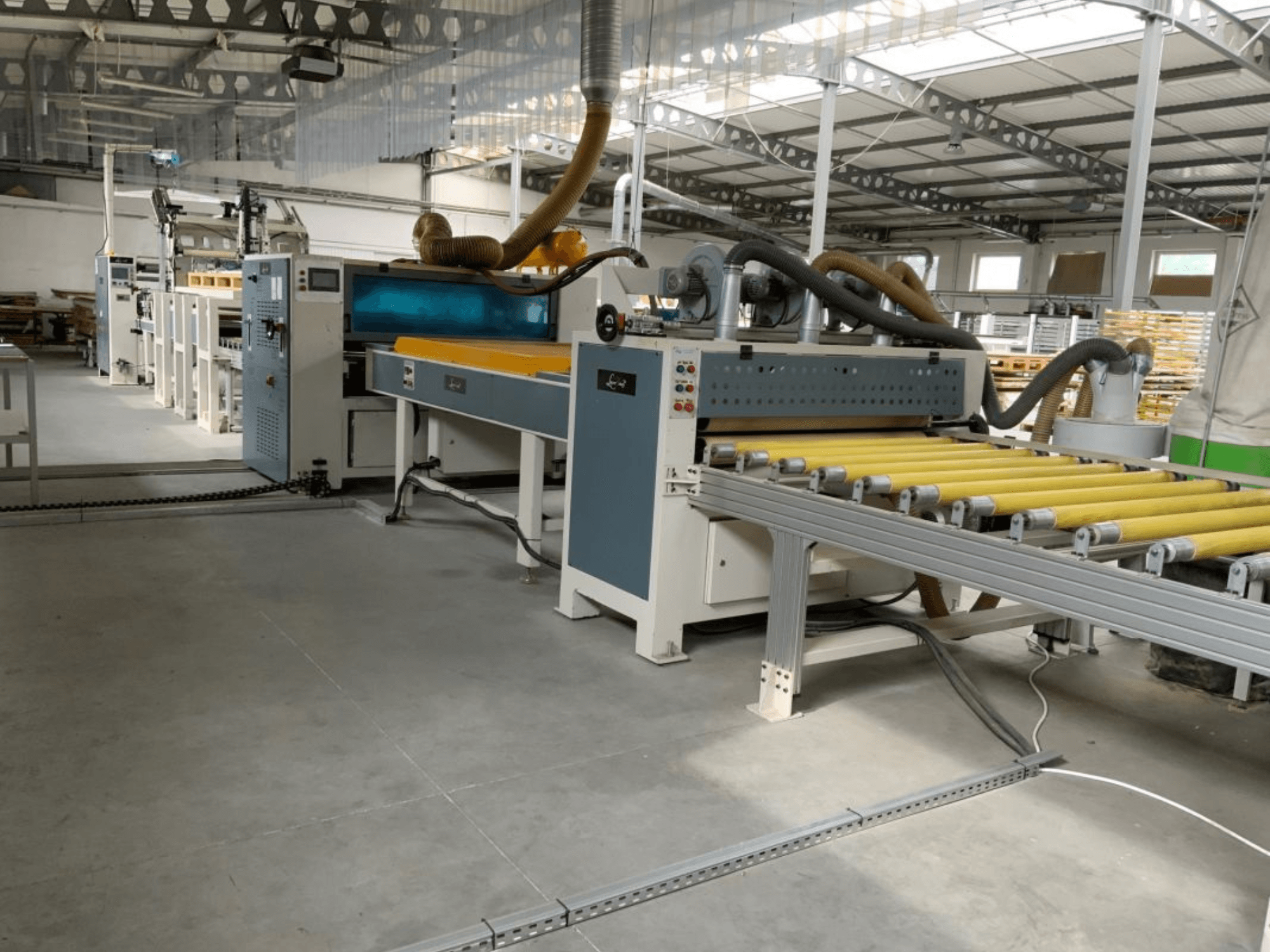

Laminating press manufactured in 2016. This MASTER PUR-1400 is a professional, high-performance laminating line designed for single-sided panel lamination using PUR Hot Melt adhesive. It features a working width of 1,400 mm and can handle maximum panel sizes of 2,800 × 1,300 mm. If you are looking to get high-quality laminating capabilities, consider the MASTER PUR-1400 laminating press we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: MASTER
  • year: 2016
  • MODEL: PUR-1400
  • application type: Pressing / Laminating
  • Location: Poland
  • machine type: Laminating Press

Additional Information

  • Process: Single-sided lamination with PUR hot melt adhesive

  • Applications: Furniture panels, interior components, wall panels, decorative boards

  • Suitable substrates: MDF, particleboard, plywood, PVC boards, gypsum boards, other wood-based panels

  • Compatible surface materials: Acrylic sheets (high gloss & super matt), PET foil, PVC foil, HPL, CPL, decorative paper

  • Working width: 1,400 mm

  • Maximum panel size: 2,800 × 1,300 mm

  • Panel thickness: 2–40 mm

  • Production speed: 5–17 m/min

  • Output capacity: 3–5 panels/min

  • Maximum productivity: up to approx. 1,200 panels per 8-hour shift

  • Installed motor power: 21.49 kW

  • Heating power: 51.7 kW

  • Overall machine dimensions: approx. 16 × 2.5 × 2 m

  • Required installation area: minimum 6 × 22 m

  • Line includes:

    • Automatic loading system with roller conveyor

    • Panel cleaning brush unit

    • Infrared (IR) preheating oven

    • 3-roll PUR adhesive application system

    • Decorative material feeding station

    • Pressure roller laminating press

    • Discharge conveyor

    • 208-litre PUR hot melt adhesive melting unit

  • Advantages: Excellent laminating quality, uniform PUR application, suitable for high-gloss and super-matt acrylic, low adhesive consumption, stable continuous operation, high efficiency, easy operation and maintenance

  • Condition: Used

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
