BURKLE - EKMH 1300DE-PRE-BUR-2019-00001

Used door panel postforming line Kraft / Costa / IMA / Bürkle / Homag

Coating line consisting of:

Gantry feeder

Brand: Kraft

Year of manufacture: 2019

Technical specifications

- With vacuum lift

- 2 feed roller conveyors

- One transport roller conveyor for onward transport

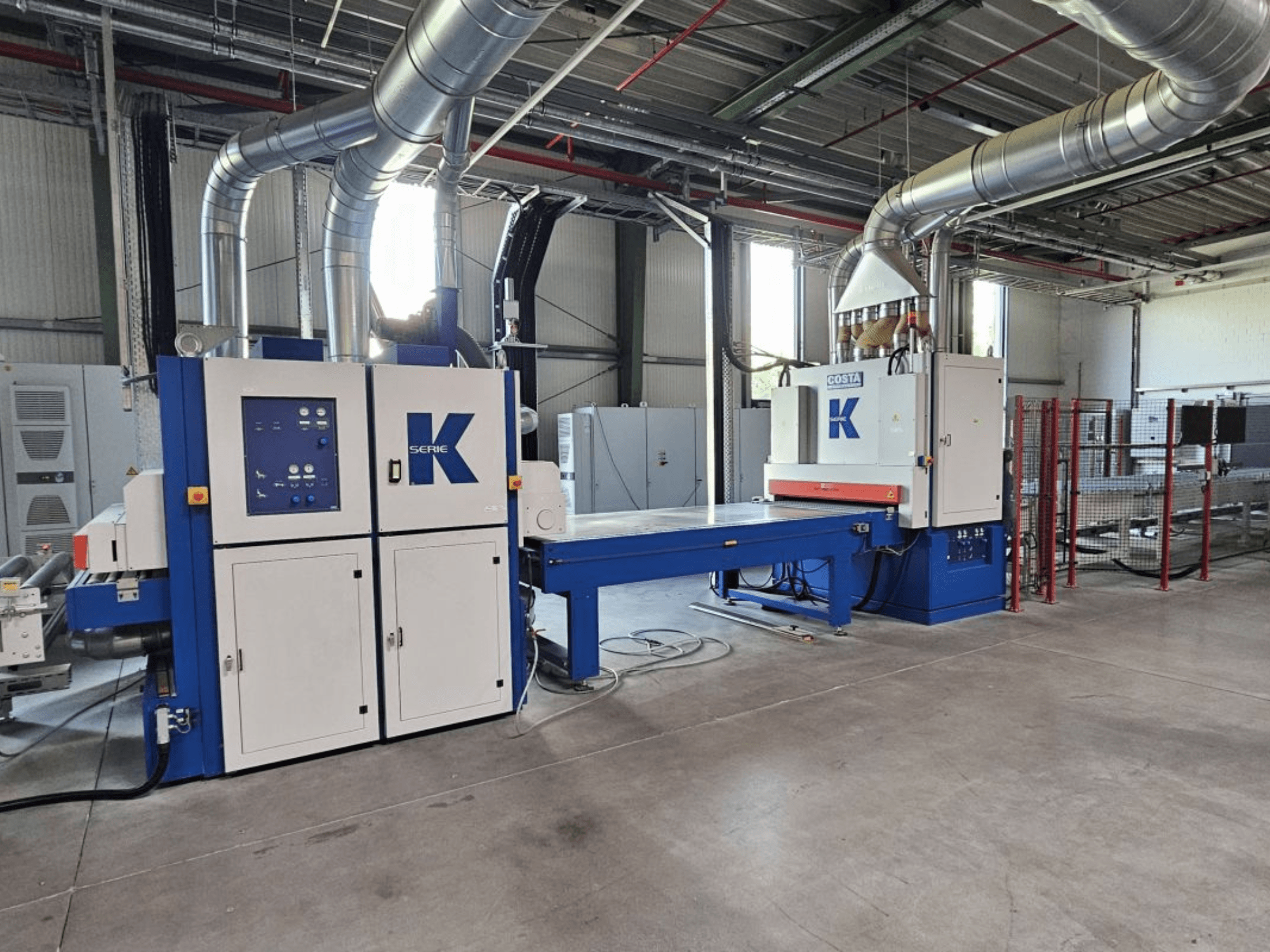

Wide-belt sanding machine

Brand: Costa

Type: KK7 CT CT 1350

Year of manufacture: 2018

Consisting of:

Wide belt sander (sanding from below)

Technical specifications

- Contact roller

- Electronic shoe sanding unit

- Cleaning brush

- Intermediate conveyor belt, length approx. 3000 mm

Wide-belt sander (sanding from above)

Technical specifications

- Identical equipment

Complete formatting, laminating, and postforming line

Consisting of:

Roller conveyor system

Brand: Kraft

Year of manufacture: 2019

Technical specifications

- 3 individual elements

- Centering station

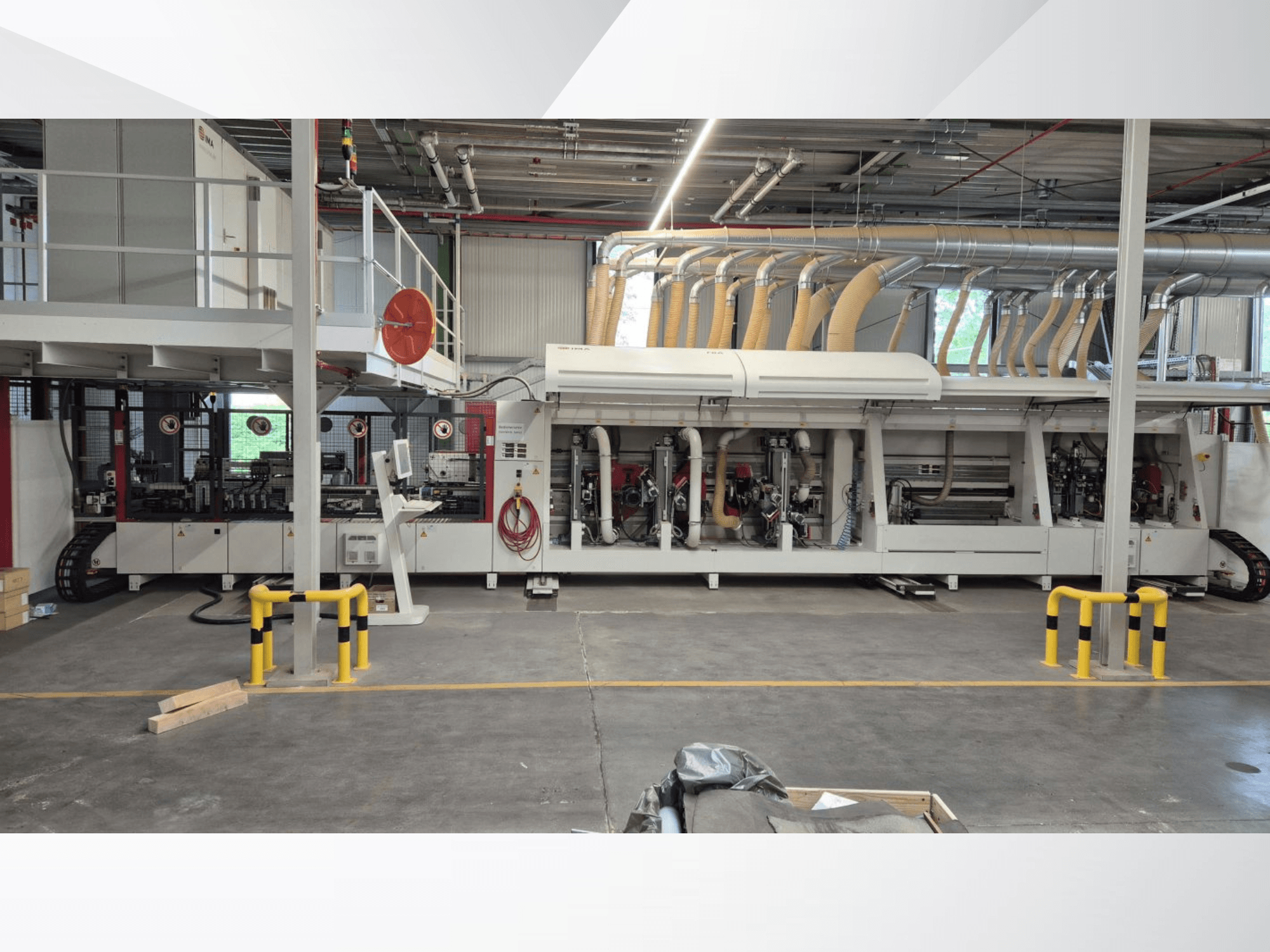

Double-end profiler

Brand: IMA

Type: FBA/II/740/A

Year of manufacture: 2018

Technical specifications

- Equipped with feed conveyor and alignment station

- Scoring saw at the bottom

- Splitter

- Flazer

- Prism cutter

- Joining cutter

- Cross-edge milling unit

- 3 profiling milling units

- Brushes

Laminating system

consisting of:

Feed conveyor belt

Brand: Kraft

Year of manufacture: 2019

Glue applicator

Brand: Bürkle

Type: DAK1300

Year of manufacture: 1992

Technical specifications

- With infeed table, manufacturer: Kraft

- Steel platform with stairs and various pumps

- Glue melting unit GWK Eco 03A

Infeed Table for Laminating Machine

Brand: Kraft

Year of manufacture: 2019

Laminating Machine

Brand: Bürkle

Type: EKMH 1300

Year of manufacture: 1998

Technical Specifications

- New Siemens Simatik KMG Touch control system

- Bürkle GLK calender

- Includes film holder and saw for trimming excess material

- Working width 1300 mm

- 2 GWK temperature control units

- Column-mounted swivel crane for loading paper rolls

- Unloading conveyor belt

Postforming machine

Brand: Homag

Technical specifications

- Infeed table

- With 2 saw units (horizontal and vertical)

- Intermediate buffer with 4 levels

- Infeed to the postforming machine

- 2 identically configured processing sides with gluing

- PU pre-melting unit Nordson / VersaBlue, built in 2020 and 2004

- Pressure zone with turret magazine for various profiles

- Various milling units and buffing brushes

- 2 cooling units BEKO Bekoblizz LC, built in 2020

Conveyor belt with inspection system

- Swivel arm with vacuum suction cup

- Inspection station for visual inspection of the workpiece

Portal destacking

Brand: Kraft

Technical data

- With vacuum portal and 3 destacking stations

Automatic cross-transport cart

Brand: Kraft

Year of manufacture: 2018

Technical specifications

- Roll width: approx. 1400 mm

- Roll length: approx. 2800 mm

Note:

The technical specifications and descriptions are copies of the original order confirmation. This information is provided for informational purposes only and is not binding.
