➤ Used ONA KE500 - 2004 - Wire EDM For Sale | gindumac.com

Show in original language

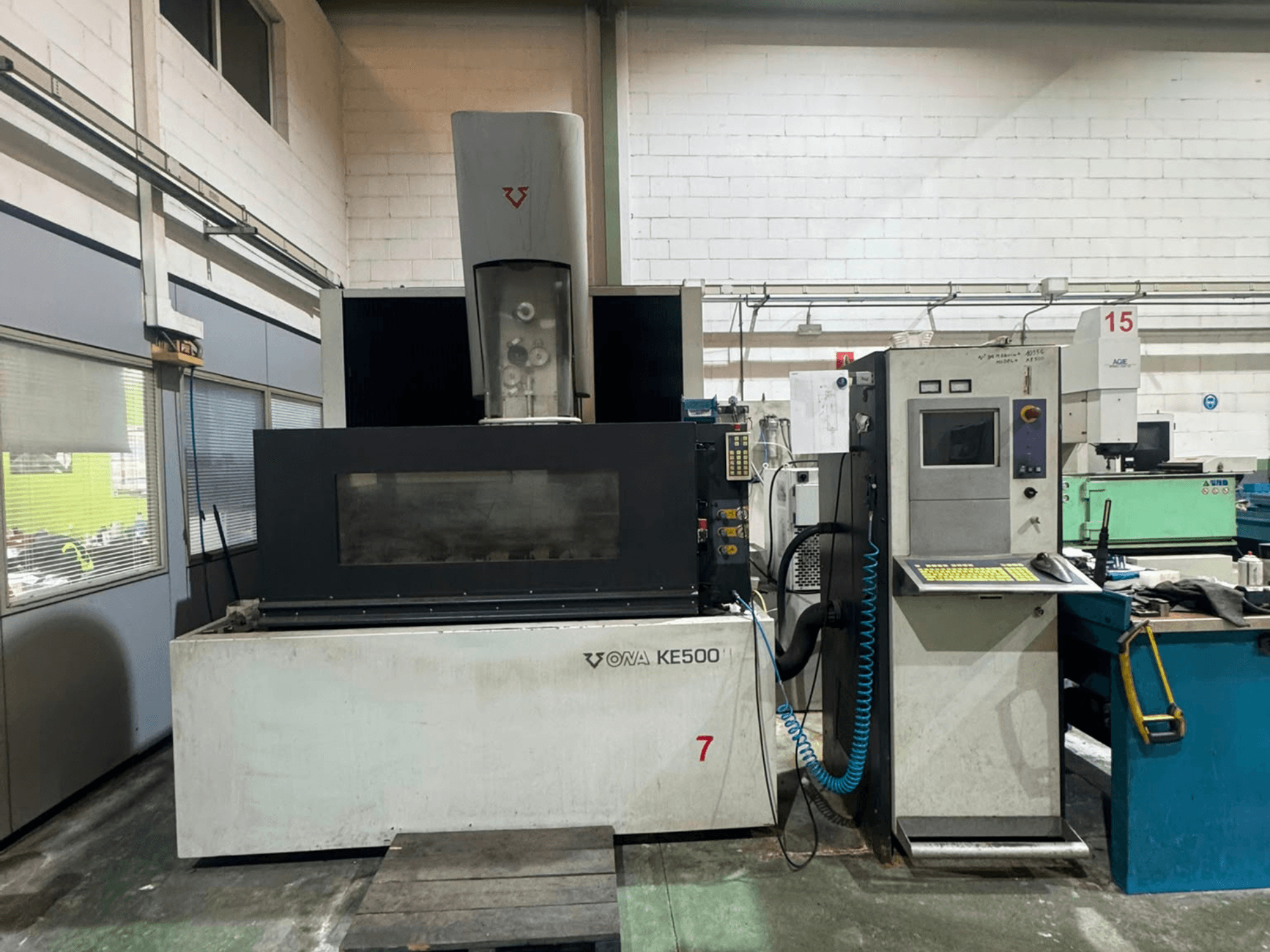

This 4-axis ONA KE500 wire EDM machine was manufactured in 2004. It features a maximum workpiece weight capacity of 5000 kg and a Z-axis travel of 400 mm. The machine offers impressive X-Y travel dimensions of 700 x 500 mm and U-V travel of 460 x 460 mm. If you are looking to get high-quality wire EDM capabilities, consider the ONA KE500 machine we have for sale. Contact us for further details.

Overview

brand: ONA
year: 2004
MODEL: KE500
application type: EDM
Location: Spain
machine type: Wire EDM Machine

Technical Information - ONA KE500

Movement

Number of Axes: 4
X-axis Travel: 1500 mm
Y-axis Travel: 500 mm
Z-axis Travel: 400 mm

Technical Specification

Max. Wire Diameter: 0.35 mm
Min. Wire Diameter: 0.1 mm

Additional Information

Models covered: KE 350, KE 450, KE 500, KE 1000
X–Y travel:
- KE 350: 550 x 350 mm
- KE 450 & KE 500: 700 x 500 mm
- KE 1000: 1500 x 1000 mm
Z-axis travel:
- KE 350, KE 450, KE 500: 400 mm
- KE 1000: 600 mm
U–V travel:
- KE 350 & KE 450: 140 x 140 mm
- KE 500: 460 x 460 mm
- KE 1000: 500 x 500 mm
Max. workpiece dimensions (X x Y x Z):
- KE 350: 1050 x 800 x 400 mm
- KE 450: 1200 x 950 x 400 mm
- KE 500: 1500 x 1200 x 400 mm
- KE 1000: 2300 x 1600 x 600 mm
Max. workpiece weight:
- KE 350: 3000 kg
- KE 450 & KE 500: 5000 kg
- KE 1000: 10000 kg
Taper angle (Z):
- KE 350 & KE 450: ±9° / 400 mm
- KE 500: ±28° / 400 mm
- KE 1000: ±20° / 600 mm
Max. taper angle:
- KE 350 & KE 450: ±30° / 95
- KE 500: ±30° / 375 mm
- KE 1000: ±30° / 400 mm

Wire spool type: DIN 100, DIN 125, DIN 160, DIN 200, DIN 355
Guide type: High-precision zero-backlash closed diamond guide
Position resolution (X, Y, U, V): 0.001 mm
Minimum programmable increment: 0.001 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
