ONA - U 400ES-EDM-ONA-2000-00001

Rs. 2,320,682
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

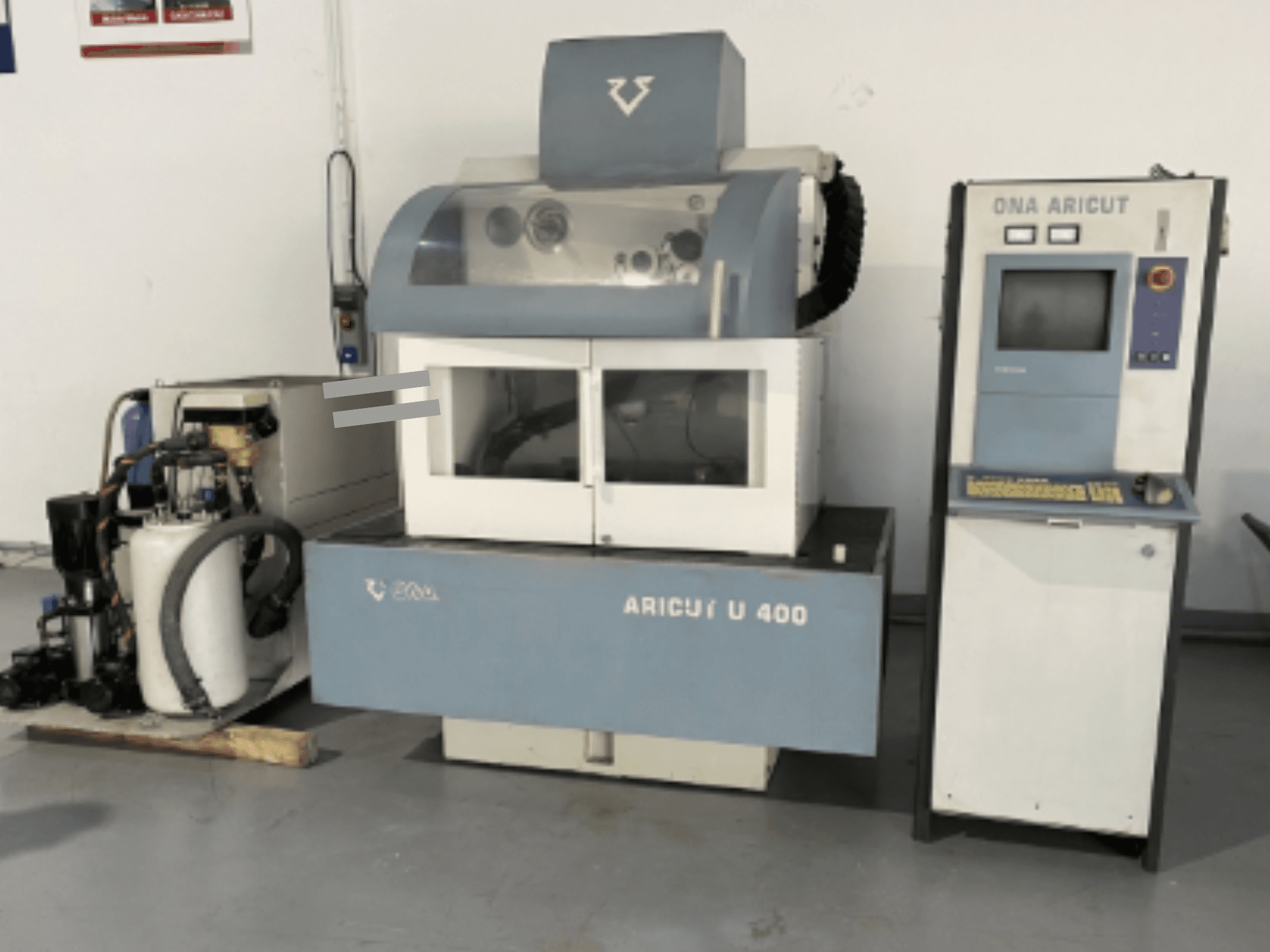

This 5-axis ONA U 400 wire EDM machine was manufactured in 2000. It features a table travel of 600 x 400 mm and a Z-axis travel of 400 mm, accommodating a maximum workpiece size of 1200 x 880 x 400 mm with a weight capacity of 850 kg. If you are looking to get high-quality wire EDM capabilities, consider the ONA U 400 machine we have for sale. Contact us for further details.

Overview

  • brand: ONA
  • year: 2000
  • MODEL: U 400
  • application type: EDM
  • Location: Spain
  • machine type: Wire EDM Machine

Technical Information - ONA U 400

Movement

  • Number of Axes: 5
  • X-axis Travel: 600 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 400 mm

Technical Specification

  • Max. Wire Diameter: 0.3 mm
  • Min. Wire Diameter: 0.1 mm

Additional Information

  • Auxiliary table travel (U/V): 80 x 80 mm

  • Maximum workpiece size (X/Y/Z): 1200 x 880 x 400 mm

  • Maximum workpiece weight: 850 kg

  • Taper cutting angle at 100 mm (Z): 18°

  • Maximum taper cutting angle: 30°

  • Wire characteristics (bare): Cu 63% / Zn 37%

  • Wire tensile strength: 900 N/mm²

  • Wire spool type: DIN 125 / DIN 160

  • Guide type: Closed diamond

  • Position resolution (X/Y/U/V): 0.001 mm

  • Minimum programmable increment: 0.001 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
