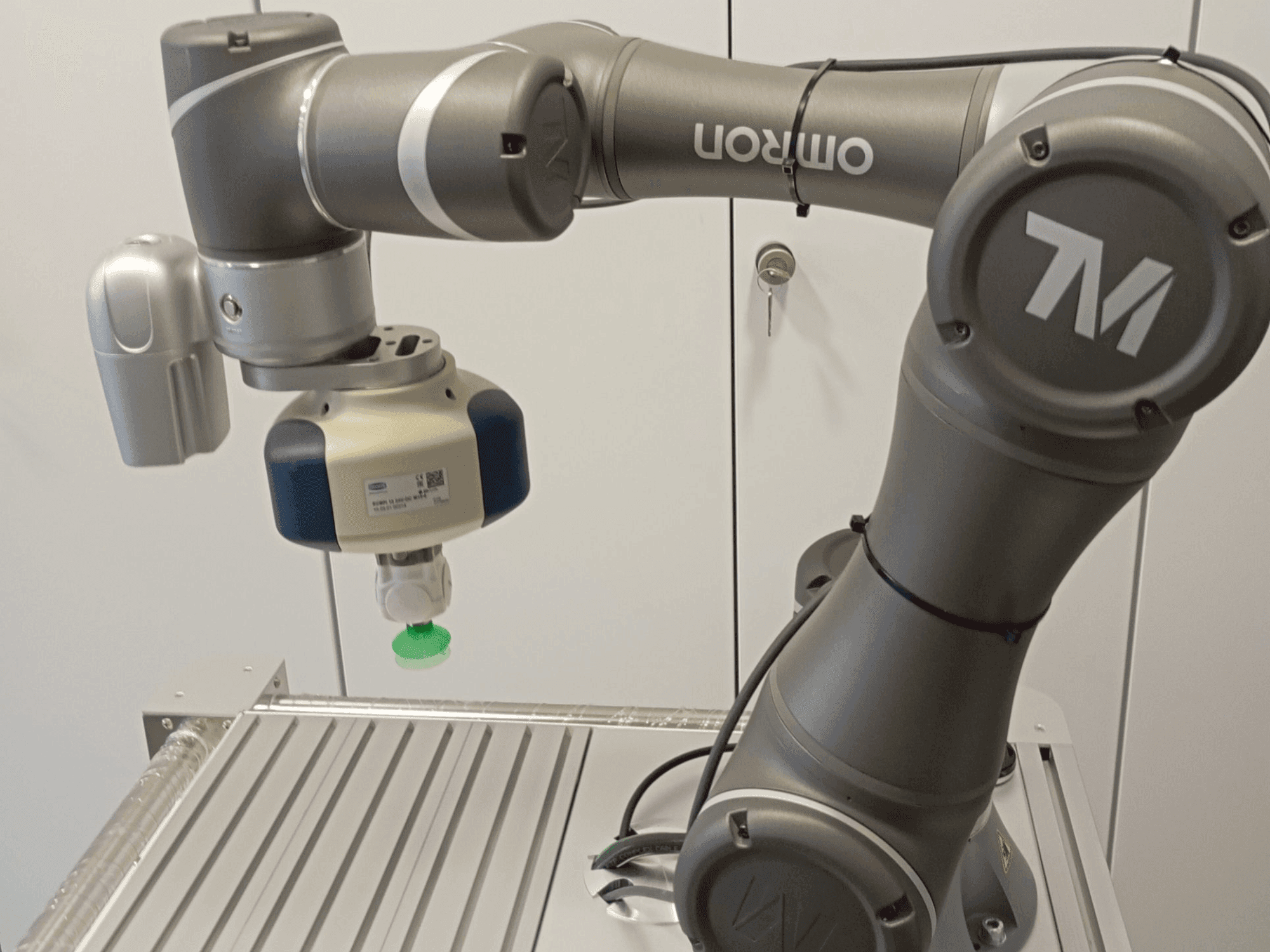

OMRON - TM5-700PY-ROB-OMR-2019-00001

Additional equipment

• Eye in Hand (Built-in)
• Camera: 1.2M/5M pixels, color camera
• Eye to Hand (Optional): Support for maximum 2 GigE cameras

Machine Benefits

Qualitative Machine Benefits

• "the trackscan sharp49 is a tracker-based 3d laser scanner. With its scan volume of 49 cubic metres, you can digitise large objects such as cars or trucks with high precision. It is very easy to use. Thanks to its camera beam, which records the position of the scanner, no reference marks need to be applied to the object to be scanned. This technology allows for extremely fast digitisation and therefore makes it possible, for example, to make a quality statement about a component in the shortest possible time

Technical Machine Benefits

• Degrees of freedom: 6 rotating joints
• Workpiece reach: 700 mm
• Workpiece payload: 6 kg
• Repeatability: +/- 0. 05 mm
• Power supply: input: 100-240 vac, 50-60 hz
• Power supply: dc input: 22-60 vdc
• Power consumption: typical: 220 watts
• Temperature range: operating range: 0°c to 50°c

Extra Information

Joint Ranges: J1, J6: +/- 270° J2, J4, J5: +/- 180° J3: +/- 155° Speed: J1~J3: 180°/s J4~J6: 225°/s IP Classification: Robot Arm: IP54 Control Box: IP32 I/O Ports: Control Box: Digital Input: 16 Digital Output: 16 Analog Input: 2 Analog Output: 1 Tool Connector: Digital Input: 4 Digital Output: 4 Analog Input: 1 Analog Output: 0 I/O Interface: COM: 3 HDMI: 1 LAN: 3 USB 2.0: 4 USB 3.0: 2 Certifications: Standard: CE Optional: SEMI S2 I/O Power Supply: Control Box: 24V, 1.5A Tool Connector: 24V, 1.5A Typical Speed: 1.1 m/s
