FANUC - M-10iA / 8LDE-ROB-FAN-2018-00002

Rs. 1,540,797
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

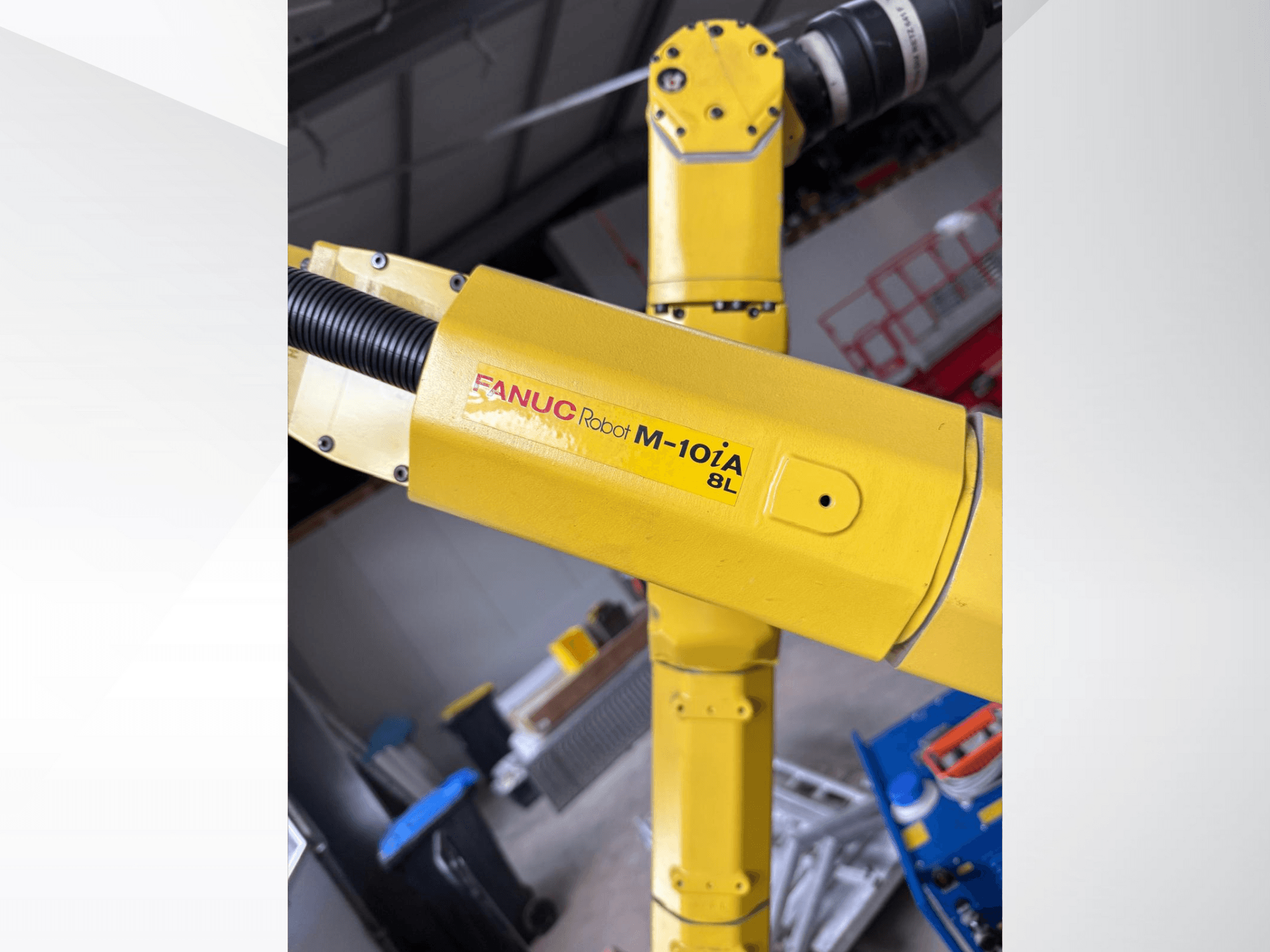

This 6-axis FANUC M-10iA / 8L robot arm was manufactured in 2018. It features a maximum reach of 2032 mm, a sound power level of 57.4 dB, and operates within an ambient temperature range of 0-45°C. The robot includes an R-30iB Plus controller and supports a maximum wrist load of 8 kg. Consider the opportunity to buy this FANUC M-10iA / 8L robot arm. Contact us for more information about this machine.

Overview

  • brand: FANUC
  • year: 2018
  • MODEL: M-10iA / 8L
  • production hours: 116
  • application type: Robotics
  • Location: Germany
  • machine type: Robot Arm

Technical Information - FANUC M-10iA / 8L

Dimensions

  • Machine Weight: 180 kg

Movement

  • Number of Axes: 6

Additional Information

  • Availability: 2 units

  • Condition: barely used

  • Controller: R-30iB Plus

  • Electrical supply: 380–575 V, 50/60 Hz, 3-phase

  • Average power: 1 kW

  • Integrated signals on upper arm (stop signals): 8 In / 8 Out

  • Integrated air supply: 1

  • Sound power level: 57.4 dB

  • Ambient temperature: 0–45 °C

  • Protection rating (mechanics): IP54 (standard/optional)

  • Protection rating (wrist & A3 arm): IP67 (standard/optional)

  • Robot footprint: 343 x 343

  • Max. weight on wrist (payload): 8 kg

  • Max. reach: 2032 mm

  • Repeatability: 0.03 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
