- ➤ Used FANUC M20IA - 2020 - Robot For Sale | gindumac.com

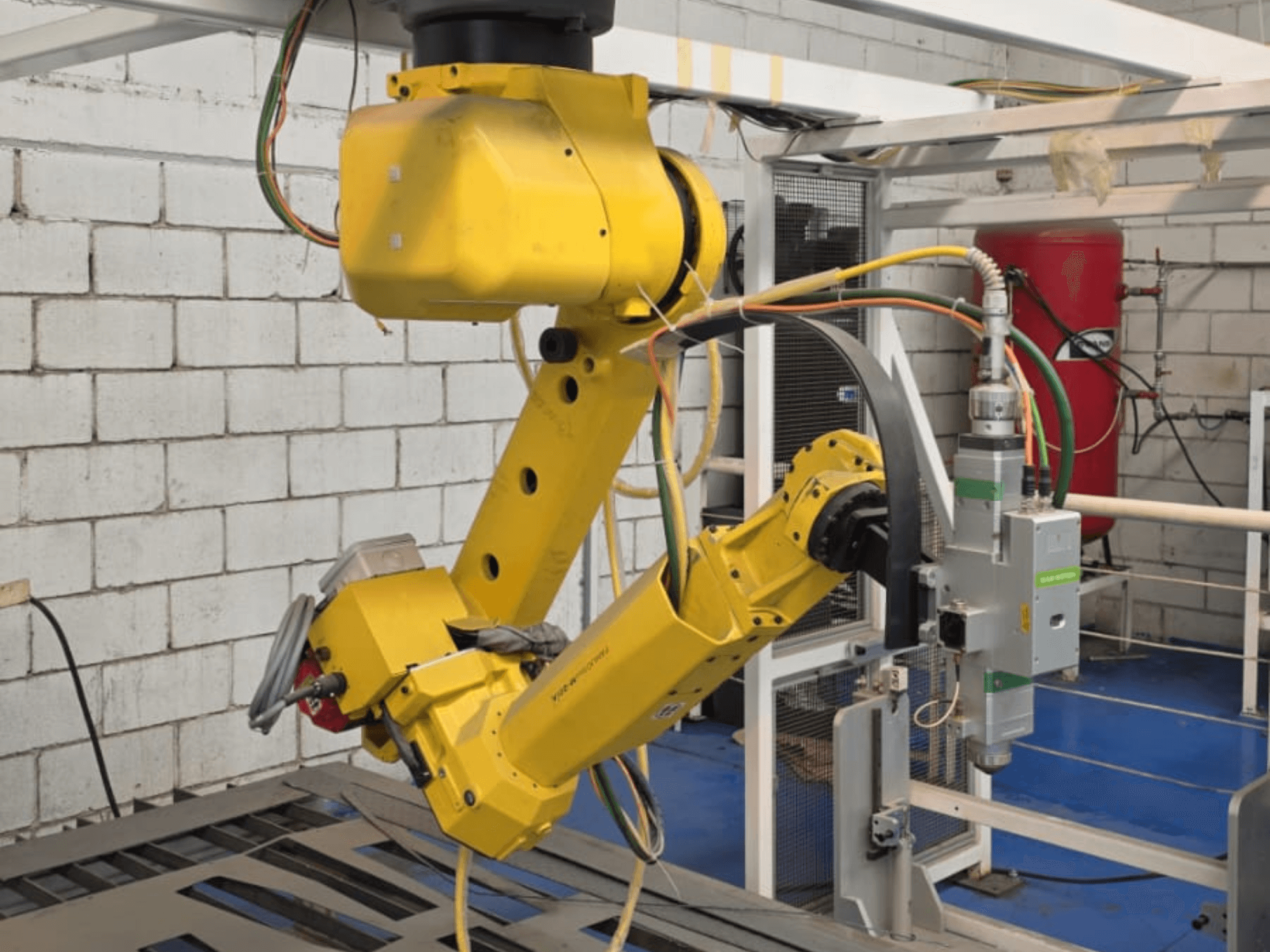

This 6s FANUC M20IA robot arm was manufactured in 2020. It features a maximum payload of 20 kg and a reach of 1,811 mm, making it suitable for various applications. With its versatile mounting options and robust protection ratings, consider the opportunity to buy this FANUC M20IA robot arm. Contact us for further details.
Overview
- brand: FANUC
- year: 2020
- MODEL: M20IA
- application type: Robotics
- Location: Mexico
- machine type: Robot Arm
Technical Information - FANUC M20IA
Dimensions
- Machine Weight: 250 kg
Movement
- Number of Axes: 6
Additional Information
Maximum payload: 20 kg
Maximum reach: 1,811 mm
Repeatability: ±0.02 mm
Axis ranges:
J1: ±170°
J2: +160° / -90°
J3: +225° / -45°
J4: ±200°
J5: ±140°
J6: ±450°
Axis speeds:
J1: 180°/s
J2: 180°/s
J3: 180°/s
J4: 430°/s
J5: 430°/s
J6: 720°/s
Mounting position: floor, inverted, or angle
Protection rating:
Body: IP54
Wrist: IP67
Controller model: R-30iB (or R-30iB Plus)
Programming language: FANUC TP & KAREL
Power supply: 200–230 V AC, 3-phase, 50/60 Hz
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
