➤ Used EPSON LS6-602S - Robot Arm For Sale | gindumac.com

Show in original language

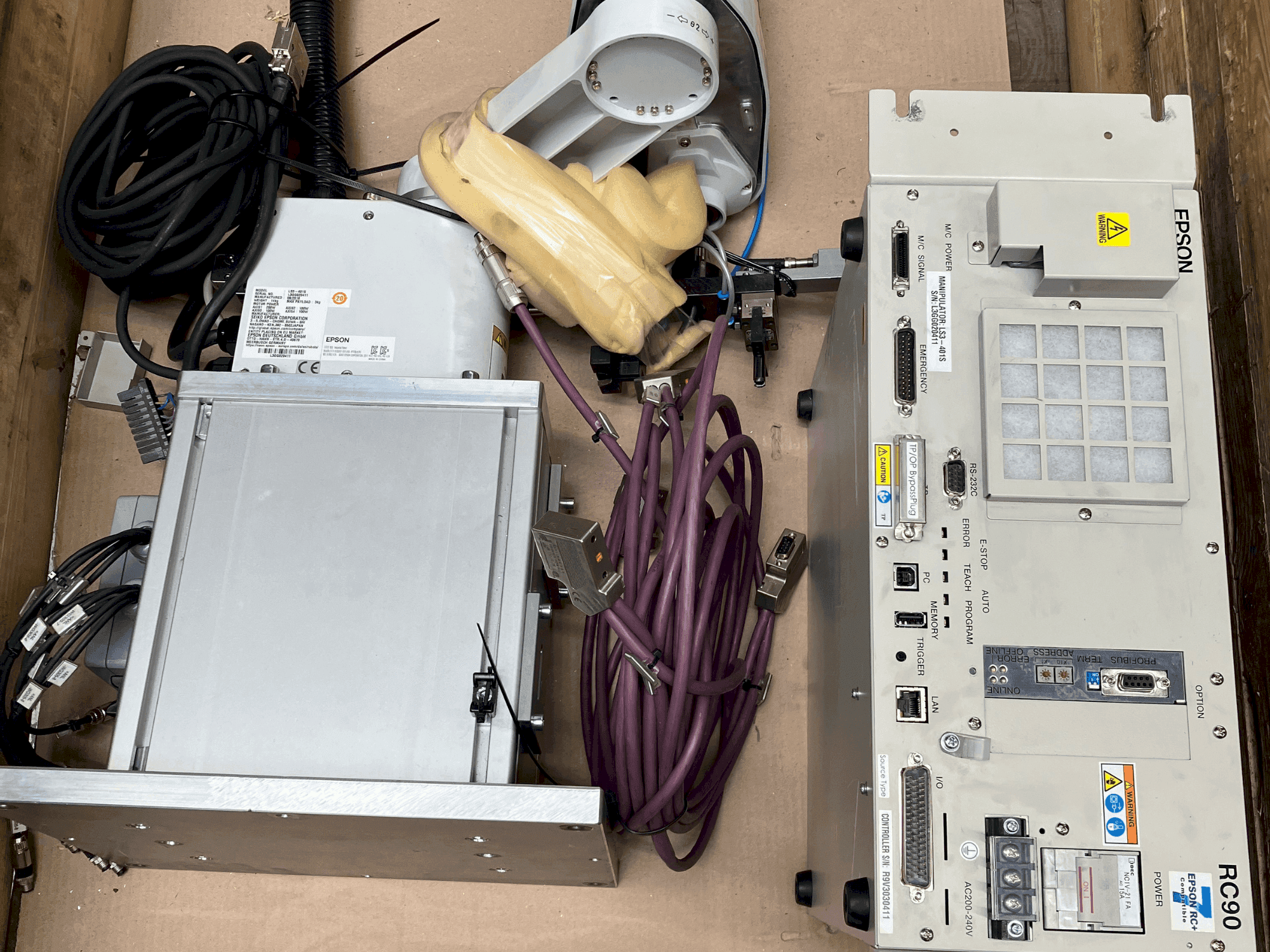

This 4-axis EPSON LS6-602S robot arm was manufactured in 2018. It features a 600 mm arm length and can handle payloads up to 8 kg. With speeds reaching 6800 mm/s on joints #1 and #2, and 1100 mm/s on joint #3, it ensures rapid and precise movements. Weighing only 17 kg, it's designed for table mounting and includes a 15-pin D-sub electrical connection. Consider the opportunity to buy this EPSON LS6-602S robot arm. Contact us for more information.

Overview

brand: EPSON
year: 2018
MODEL: LS6-602S
application type: Robotics
Location: Germany
machine type: Robot Arm

Technical Information - EPSON LS6-602S

General Data

Machine weight: 17 kg

Main drive

Number of axis: 4

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Standard cycle time: 0. 39 s
- - Mounting type: table mounting
- - Payload: standard: 2 kg maximum: 8 kg
- - Moment of inertia (joint #4): standard: 0. 01 kg-m² maximum: 0. 12 kg-m²
- - Compressive force (joint #3): 100 n
- - Arm length (arm #1, #2): 600 mm
- - Connections: electrical: 15-pin d-sub pneumatic: Ø4 mm × 1, Ø5 mm × 2

Extra information

- Range of movement: Joint #1: ±132° Joint #2: ±165° Joint #3 (standard): 200 mm Joint #3 (Dissamom model): 170 mm Joint #4: ±360° Max. speed: Joint #1, #2: 6800 mm/s Joint #3: 1100 mm/s Joint #4: 2000°/s Repeat accuracy: Joint #1, #2: ±0.01 mm Joint #3: ±0.01 mm Joint #4: ±0.01° Motor power: Joint #1: 200 W Joint #2: 200 W Joint #3: 100 W Joint #4: 100 W Ambient conditions: Standard (Dissamom³)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
