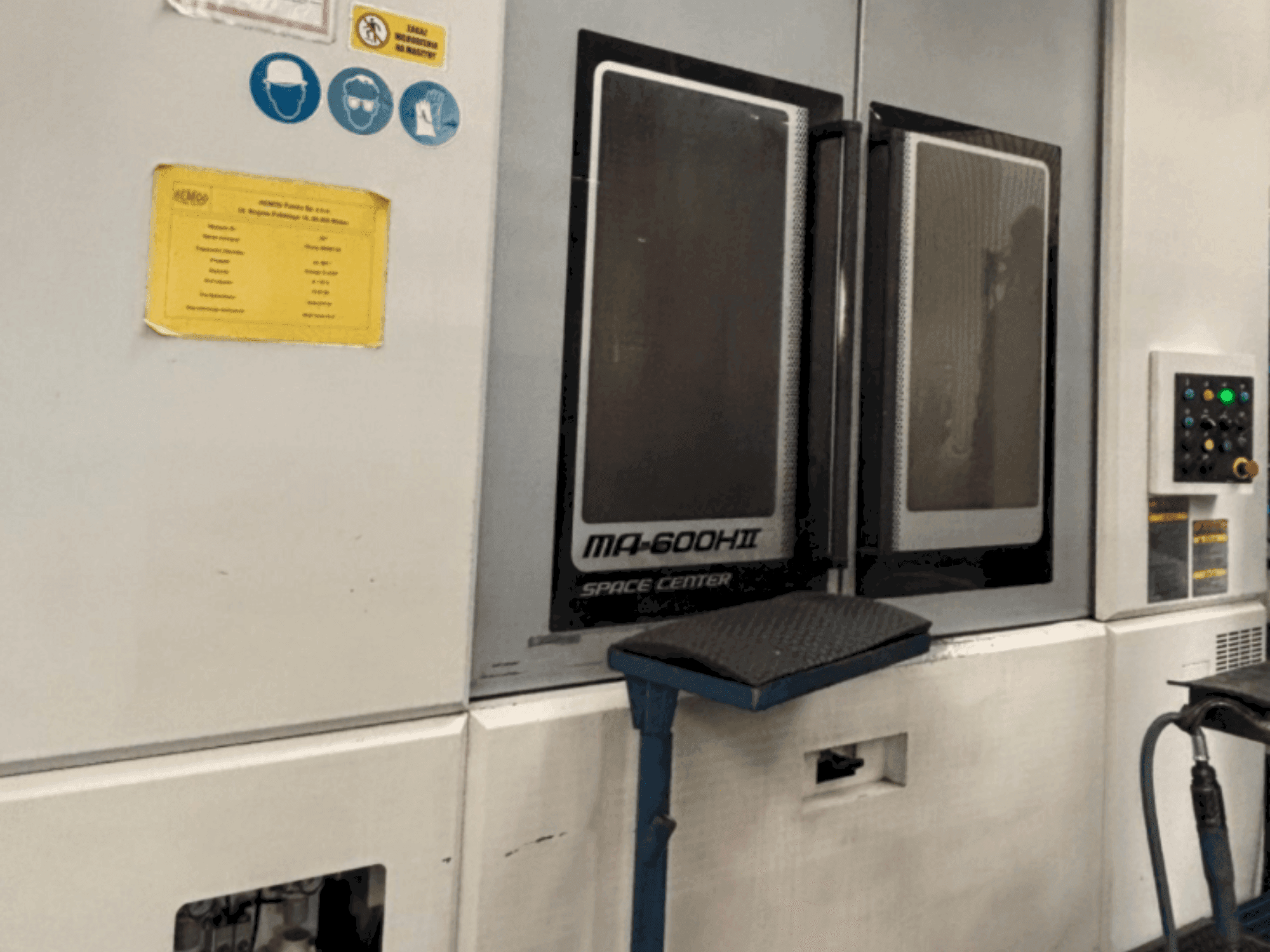

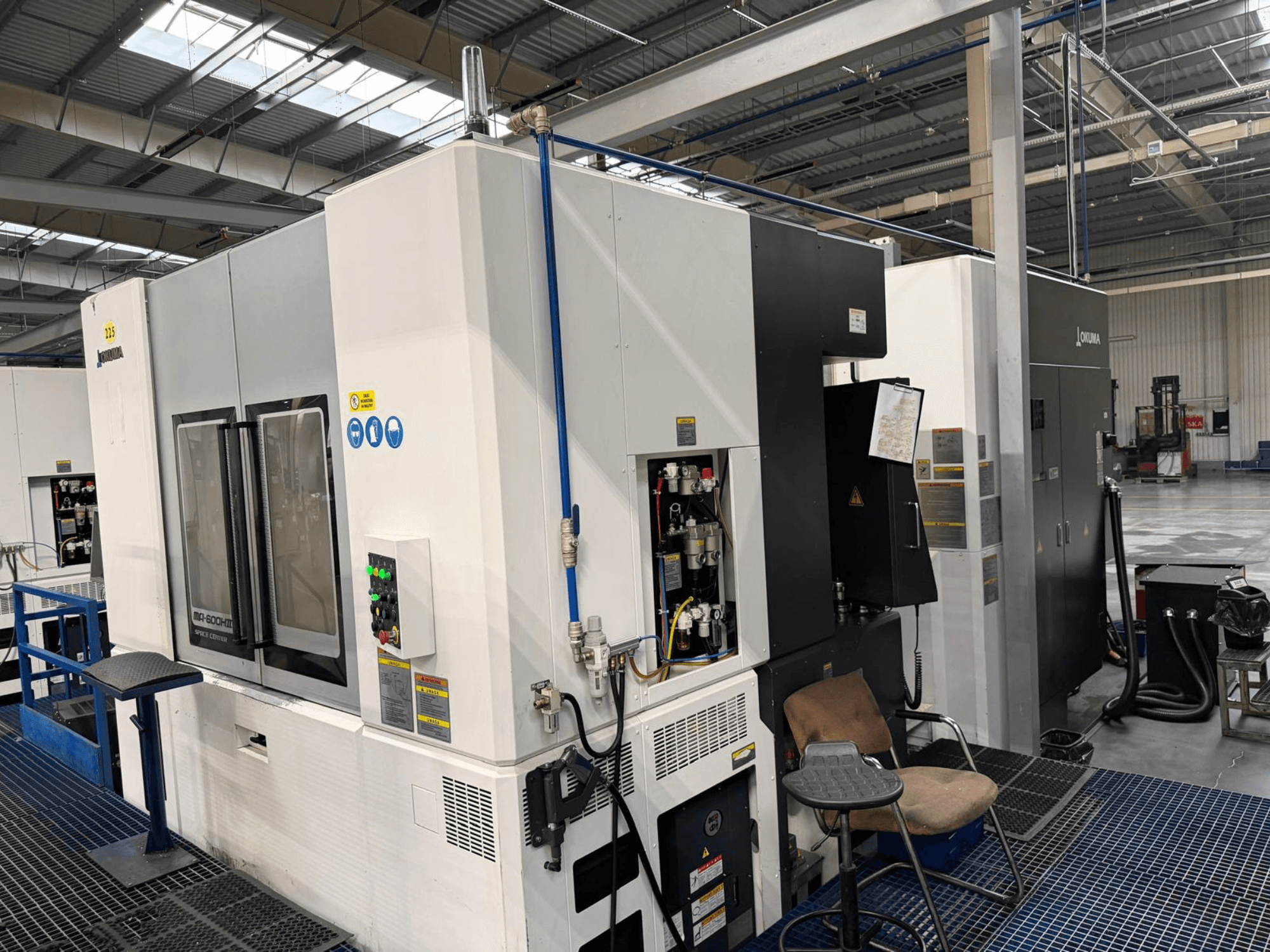

Okuma - MA 600H IIIT-MIL-OKU-2019-00002

• Table/Pallet

  • Useful table surface: 630 × 630 mm

  • Max rotation dimensions: Ø1,000 × 1,000 mm

  • Standard division: 0.001°

  • Table indexing time (90°–180°): 2.0–3.0 sec

  • Pallet change time: 7 sec

• Axis Travels / Linear Work Area

  • Spindle center to table surface: 50–950 mm

  • Spindle nose to pallet center: 70–1,070 mm

  • Cutting feedrate: 60,000 mm/min

  • Positioning accuracy X/Y/Z: ±0.004 mm (STD JIS)

  • Repeatability X/Y/Z: ±0.0015/100 mm (STD JIS)

• Spindle

  • Front bearing diameter: Ø60 mm

  • Through-spindle coolant (CTS): Yes

  • Compressed air: 4–6 bar

  • Spindle cooling: Yes

  • Turning function: Yes

• Tool Magazine

  • Fixed position tool management: Yes

  • Tool change time (tool-to-tool): 1.9 sec

  • Tool change time (chip-to-chip): 4.4 sec

• Floor space (2-pallet version): 3.38 × 6.11 m

• Installed power: 50 kVA

Additional equipment

• Chip conveyor: Mayfran Consep 2000

• Presetting at table edge

• Provision for Renishaw probe (prepared for probing)
