- This OKUMA GENOS M560R-V vertical machining center

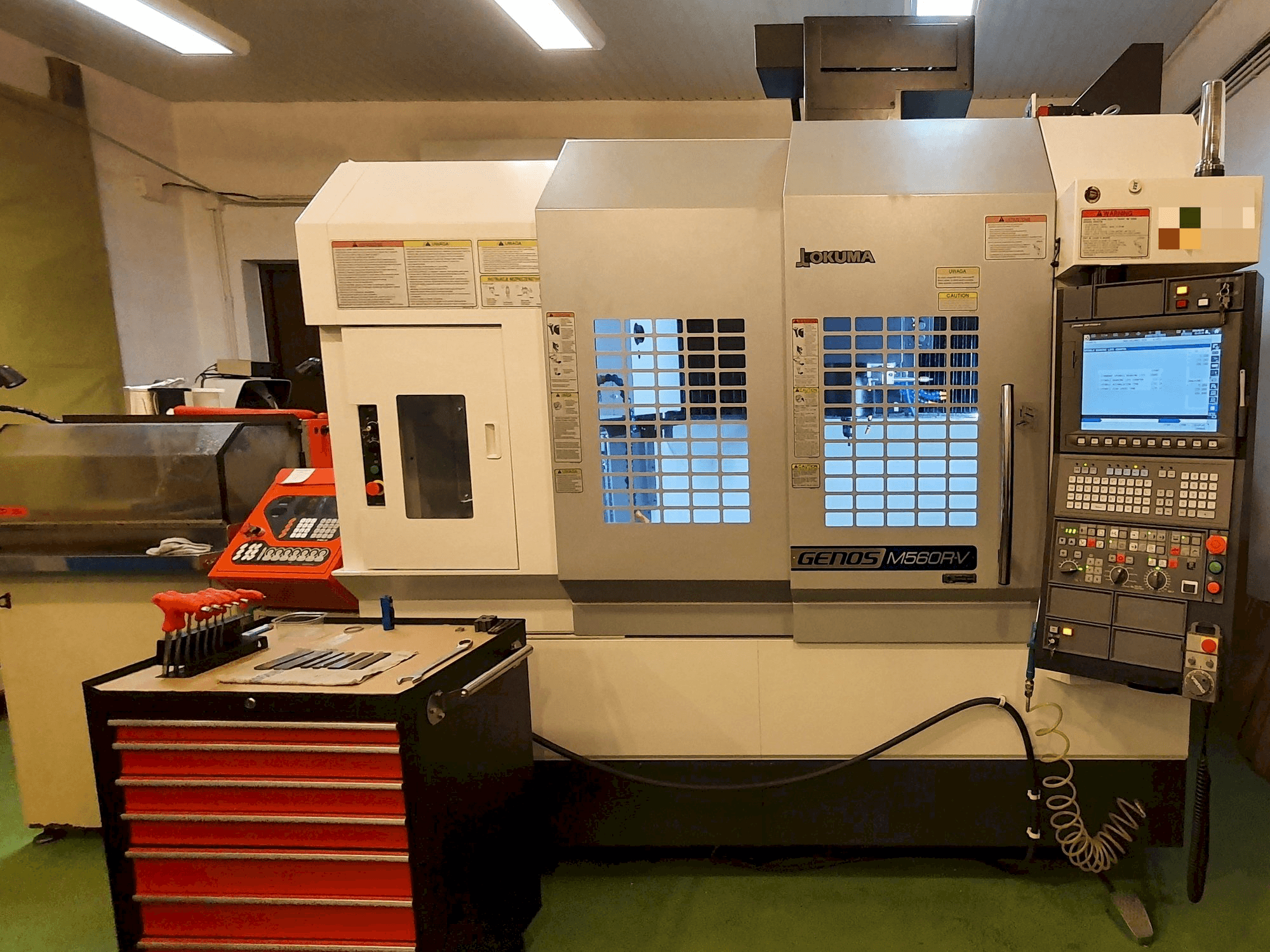

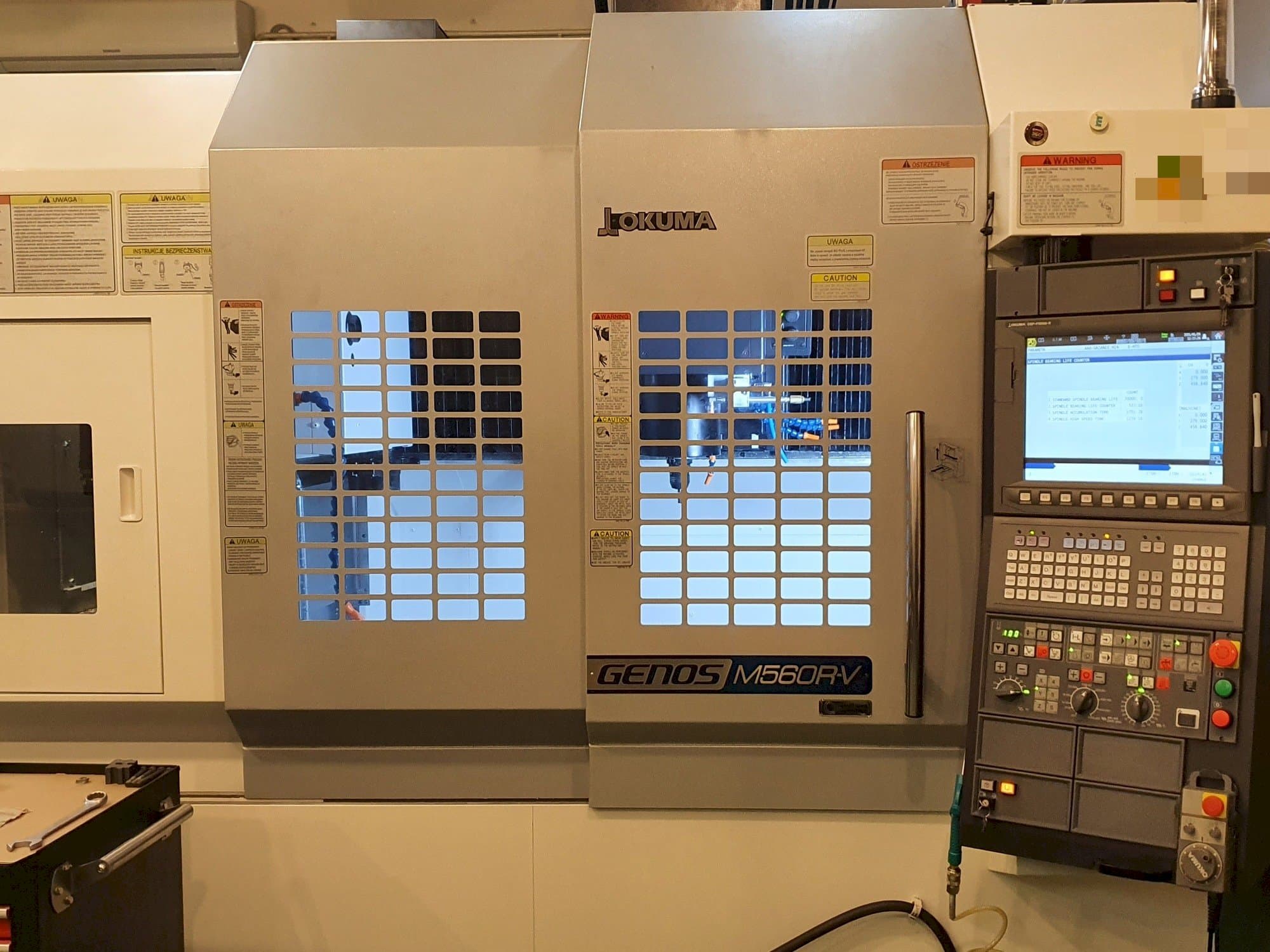

This OKUMA GENOS M560R-V vertical machining center was manufactured in 2016. The machine has a total of 1700 production hours. It is operated through a OKUMA OSP-P300M-R control unit. The machine has a spindle speed up to 15000 rpm. The machine is in perfect condition and ready for tests. Full paper and electronic documentation is available as well as the full service history.
Overview
- brand: Okuma
- year: 2016
- MODEL: GENOS M560R-V
- production hours: 1700
- application type: Milling
- Location: Poland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: OKUMA
- GINDUMAC ID: PL-MIL-OKU-2016-00001
Technical Information
General Data
- Measurements width: 2564 mm
- Measurements depth: 3194 mm
- Measurements height: 2746 mm
- Machine weight: 7500 kg
Control Unit
- Brand: OKUMA
- Model: OSP-P300M-R
Main drive
- Spindle speed range: 15000 1/MIN
Movement
- X-AXIS Movement: 1050 mm
- Y-AXIS Movement: 560 mm
- Z-AXIS Movement: 460 mm
Table
- Outer length: 1300 mm
- Outer width: 560 mm
Media
- Main electronic connection: 37.5 kVA
- Power consumption: 400V / 50Hz
Additional Information
- Technical Machine Benefits:
- - Positioning accuracy: + -0. 004 mm
- - Positioning repeatability (per 100 mm): + -0. 0015 mm
- - Spindle tapper: bt-40
- - Cooling through the spindle: yes / 15 bar
- - Automatic tool change (atc)
- - Number of tools: 32 + 1 pcs
- - Workpiece probe blum zx-speed
- - Tool probe blum tc50
- - Super-nurbs function for 3-axis machining
- - Postprocessor for master cam with parameterization of the super-nurbs
- Qualitative Machine Benefits:
- - Losma darwin 2000m oil mist extract
- - Gun for manual flushing with pump
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
