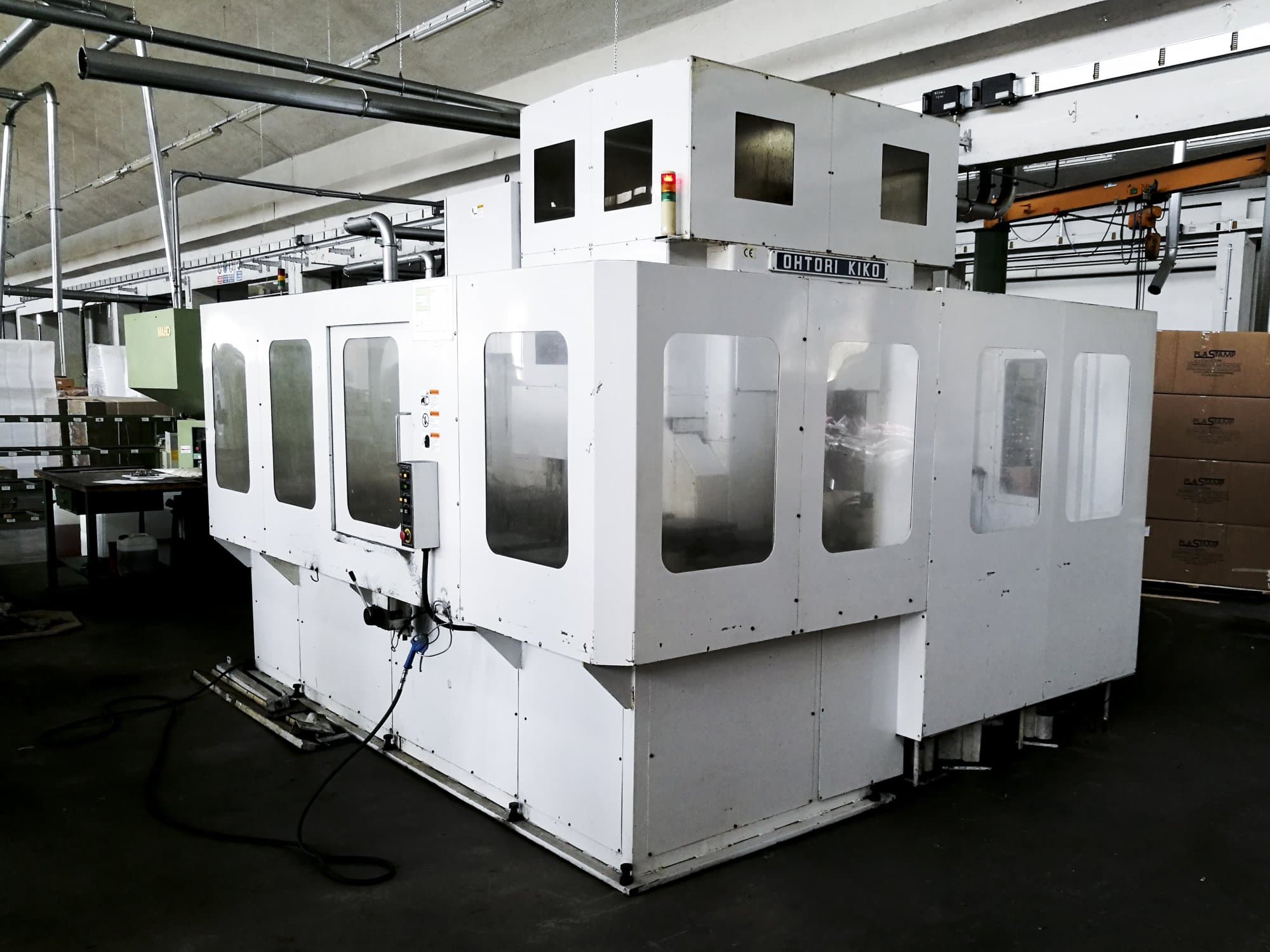

Right view of OHTORI KIKO OSU 545 machine
Right view of OHTORI KIKO OSU 545 machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

OHTORI KIKO - OSU 545IT-MIL-OHT-2000-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This OHTORI KIKO OSU 545 Machining Center manufactured in the year 2000 has a production history of 70720 working hours. This well-equipped machine comes with a FANUC Series 15-M control unit with remote control, a 14x pallet changer and a 60x tool changer that allows high automation tasks. In the past, this OSU 545 has been working mostly with steel for textile machinery parts.

Overview

  • brand: OHTORI KIKO
  • year: 2000
  • MODEL: OSU 545
  • production hours: 70720
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - OHTORI KIKO OSU 545

General Data

  • Measurements width: 3915 mm
  • Measurements depth: 3835 mm
  • Measurements height: 3145 mm
  • Machine weight: 12300 kg

Control Unit

  • Brand: FANUC
  • Model: Series 15-M
  • Remote control: Yes

Main drive

  • Number of spindles: 1
  • Spindle speed range: 60-6000 1/min
  • Tool taper: ISO 40

Movement

  • X-AXIS Movement: 460 mm
  • X-AXIS Working Feed: 4000 mm/min
  • X-AXIS Rapid traverse: 20 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Working Feed: 4000 mm/min
  • Y-AXIS Rapid traverse: 20 m/min
  • Z-AXIS Movement: 400 mm
  • Z-AXIS Working Feed: 4000 mm/min
  • Z-AXIS Rapid traverse: 16 m/min
  • A-AXIS Movement: -90° - +120° MM
  • A-AXIS Working Feed: 6.5 rpm
  • A-AXIS Rapid traverse: 15 rpm
  • C-AXIS Movement: 360 ° MM
  • C-AXIS Working Feed: 10 rpm
  • C-AXIS Rapid traverse: 25 rpm

Workpiece

  • Workpiece weight: 80 kg

Table

  • Outer length: 315 mm
  • Outer width: 315 mm

Tools

  • Slots in storage: 180
  • Max weight: 6 kg
  • Max tool diameter: 110 mm
  • Max tool length: 240 mm

Media

  • Main electronic connection: 200 V / 50 Hz
  • Power consumption: 46 kVA
  • Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
