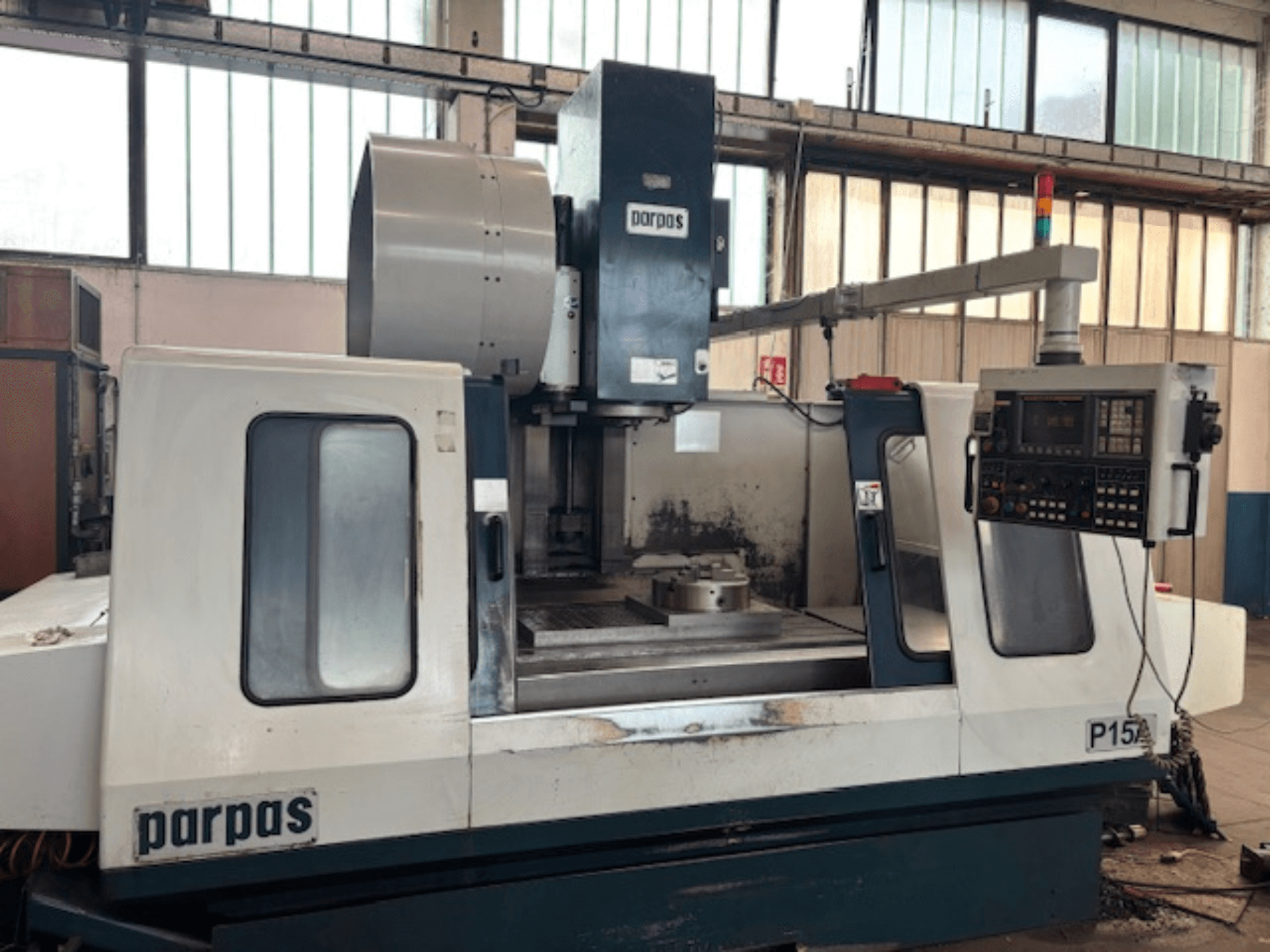

This 3-axis Parpas P15 A was manufactured in 2009. It features a generous X-axis travel of 1,450 mm, Y-axis travel of 650 mm, and Z-axis travel of 610 mm. The machine includes a robust table size of 1650 x 700 mm and a maximum table load of 1,200 kg. If you are looking to get high-quality machining capabilities, consider the Parpas P15 A vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Parpas
- year: 2009
- MODEL: P15 A
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Parpas P15 A
Control Unit
- Control Brand: FANUC
- Control Model: Series 0-M
Dimensions
- Machine Weight: 13000 kg
- Table Load: 1200 kg
Movement
- Number of Axes: 3
- X-axis Travel: 1450 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 610 mm
Technical Specification
- Max. Tool Weight: 15 kg
- Spindle Power: 15 kW
- Spindle Speed: 6000 RPM
- Taper Size: ISO 50
Additional Information
Table:
Dimensions: 1650 x 700 mm
T-slots (width x number x pitch): 22 x 5 x 150 mm
Travels:
Distance spindle nose to table: 200–810 mm
Distance spindle center to column: 720 mm
Automatic tool changer:
Capacity: 24 positions
Max tool diameter: 110 mm
Max tool length: 300 mm
Tool holder type: CAT-50 / BT-50
General:
Overall dimensions: 3,500 x 3,100 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
