NILES N30Y x 2000

Show in original language

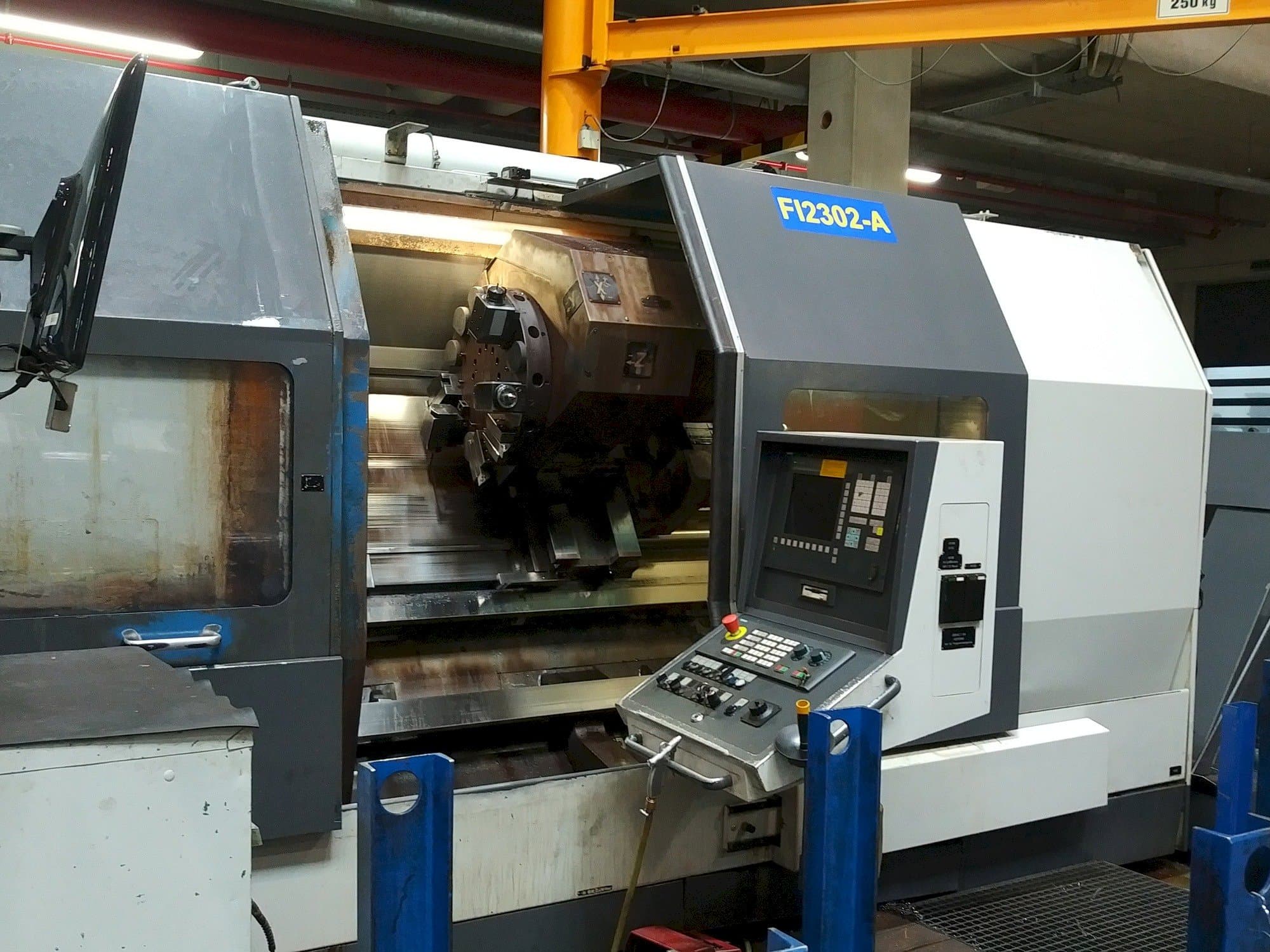

This NILES N30Y x 2000 lathe machine was manufactured in the year 2006 in Germany. This 3 axis machine is operated through a SIEMENS 840 D control unit. It works with a spindle speed range 10-3000 rpm and a turning diameter 500 mm. This machine comes with several spare parts as 1 gear unit for main spindle and a telescopic cover Z-axis

Overview

brand: NILES
year: 2006
MODEL: N30Y x 2000
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - NILES N30Y x 2000

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 10 - 3000 1/MIN
Number of axis: 3

Turret

Number of tool slots: 12
Tool taper: VDI 50

Additional equipment

- 1 gear unit for main spindle
- KSS pump
- telescopic cover Z-axis
- various Drive motors

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Turning length 2000 mm
- - Max. Turning diameter 500 mm
- - Max. Swing diameter over bed 645 mm
- - Diameter in front bearing 200 mm
- - Hydr. Hollow clamping cylinder
- - Gearbox with 2 steps
- - Max. Torque at 60% ed 1685 nm
- - Tailstock; autom. Door
- - Centering steady rest smw slu 4
- - Y-axis / c-axis
Qualitative Machine Benefits:
- - Commissioning may 2006

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
