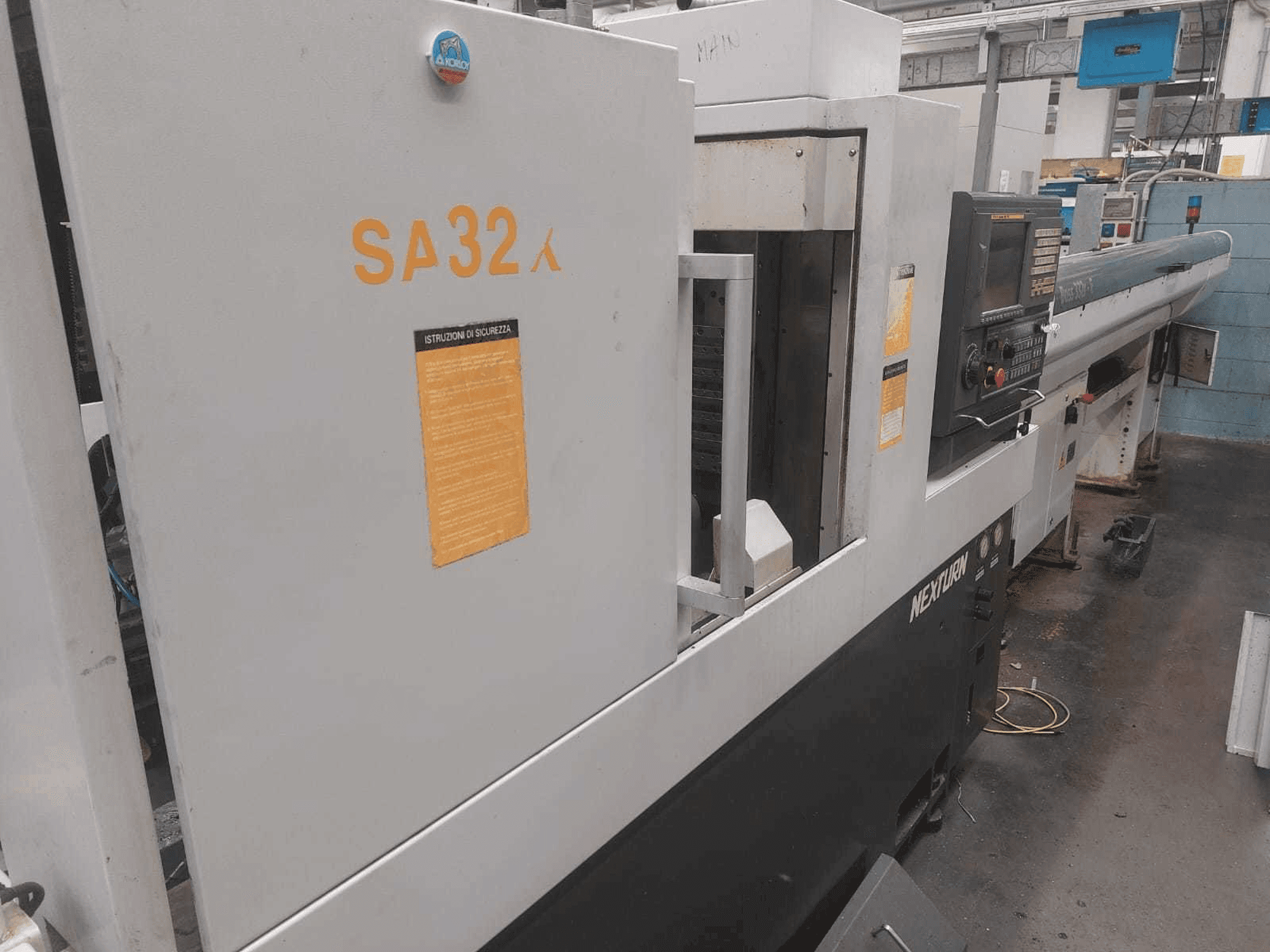

Left side view of Nexturn SA 32X machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Nexturn SA 32X

Nexturn - SA 32XIT-TUR-NEX-2008-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Nexturn SA 32X Swiss Type Turning machine

Show in original language

This Nexturn SA 32X Swiss Type Turning machine was manufactured in the year 2008. It is equipped with a Fanuc Series 18i-TB control unit and has 8 controlled axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Nexturn
year: 2008
MODEL: SA 32X
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - Nexturn SA 32X

General Data

Measurements width: 2300 mm
Measurements depth: 1460 mm
Measurements height: 1750 mm
Machine weight: 3500 kg

Control Unit

Model: Series 18i-tb
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 8

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Bar turning diameter. (mm) 32mm
- - Max. Turning length (mm) 70mm
- - Max. Main mirror drilling/guiding 12mm/m10
- - Max. Counter mirror mounting diameter 26mm
- - Max. Back tools drilling/tapping 10mm/m8
- - Max. Drilling/tapping vertical tools 10mm/m8
- - Max. Modular live tool disc-mill diameter
- - Max. Main mirror revolution 8,000rpm
- - Max. Opposite mirror revolution 8,000rpm
- - Max. Era of vertical sets 6,000rpm
Qualitative Machine Benefits:
- - Total number of teams 24(26)
- - External diameter/vertical live tools/internal diameter tools od 5/cross2-4/id 5
- - Pre-face sets, take-back sets 7,
- - Tool size 16x120mm, fast idle motion 24mm/min
- - Controlled axis 8
- - Main mirror positioning cs+1/1000゜, opposite mirror positioning cs+1/1000゜
- - Main mirror motor 7. 5/5. 5kw, counter mirror motor 3. 7/2. 2kw, vertical live tool engine 1. 0kw, back live teams engine 1. 0kw, cooling pump motor 0. 9kw, central lubrication pump motor 0. 04kw
- - Cooling tank capacity 195l
- - Center height 1000mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
