Nexturn SA-20E Lathe

Show in original language

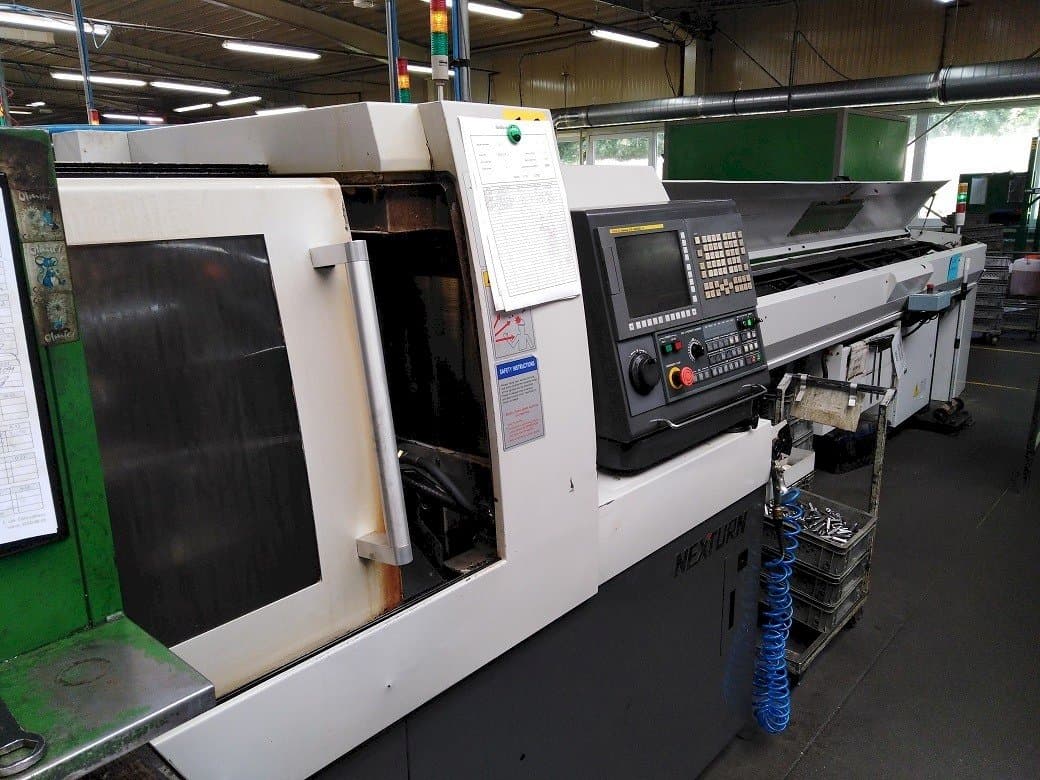

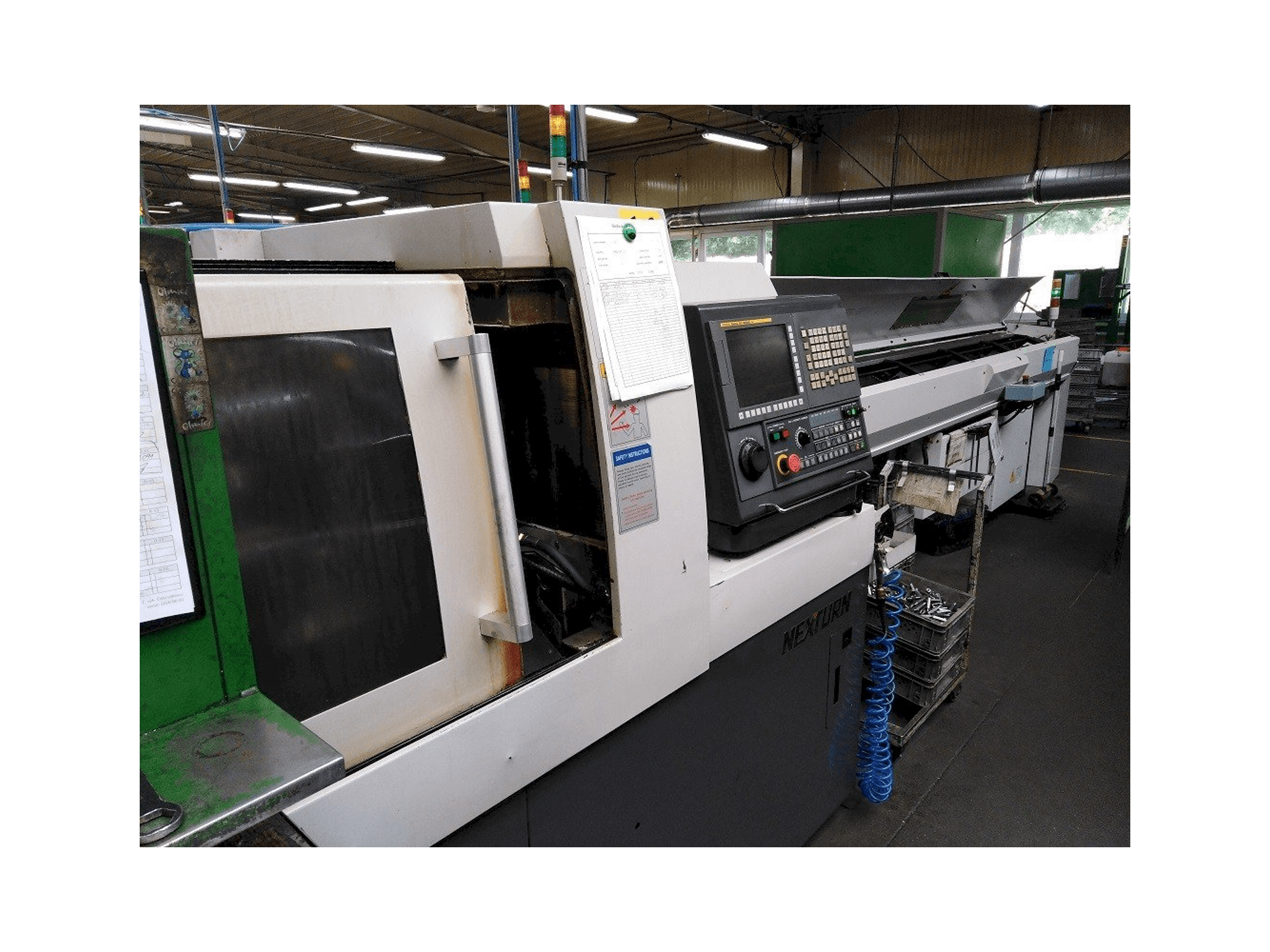

This Nexturn SA-20E Lathe was made in South Korea in 2012. It is equipped with a Fanuc Series 18i-TB control unit. This 7 axis machine operate with a spindle speed up to 8000 rpm. It comes with a machine manual. Good condition, regularly maintained.

Overview

brand: Nexturn
year: 2012
MODEL: SA-20E
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - Nexturn SA-20E

General Data

Measurements width: 2140 mm
Measurements depth: 1375 mm
Measurements height: 1670 mm
Machine weight: 3200 KG

Control Unit

Model: Series 18i-TB
CNC main language: English
Brand: FANUC

Main drive

Number of spindles: 3
Spindle speed range: 8000 1/MIN
Spindle motor power: 2.2 - 3.7 kW
Number of axis: 7

Tools

Slots in storage: 21

Media

Main electronic connection: 220V / 60Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum turning bar diameter: 20 mm
- - Maximum turning bar length: 210 mm
- - 7 controlled axis - x1, z1, y, x2, z2, c1, c2
- - Subspindle power: 1. 5 - 2. 2 kw
- - Cross-spindle power: 0. 55 - 1. 1 kw
- - Cross drill/milling unit: 0. 55 - 1. 1 kw
- - Work feedrate: 6000 mm/min
- - Rapid traverse rate: 32 mt/min
- - Max. Drilling/tapping main dia. : 10/m8
- - Max. Drilling/tapping cross & sub dia. : 8/m6
Qualitative Machine Benefits:
- - Includes machine manual
- - Good condition, regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
