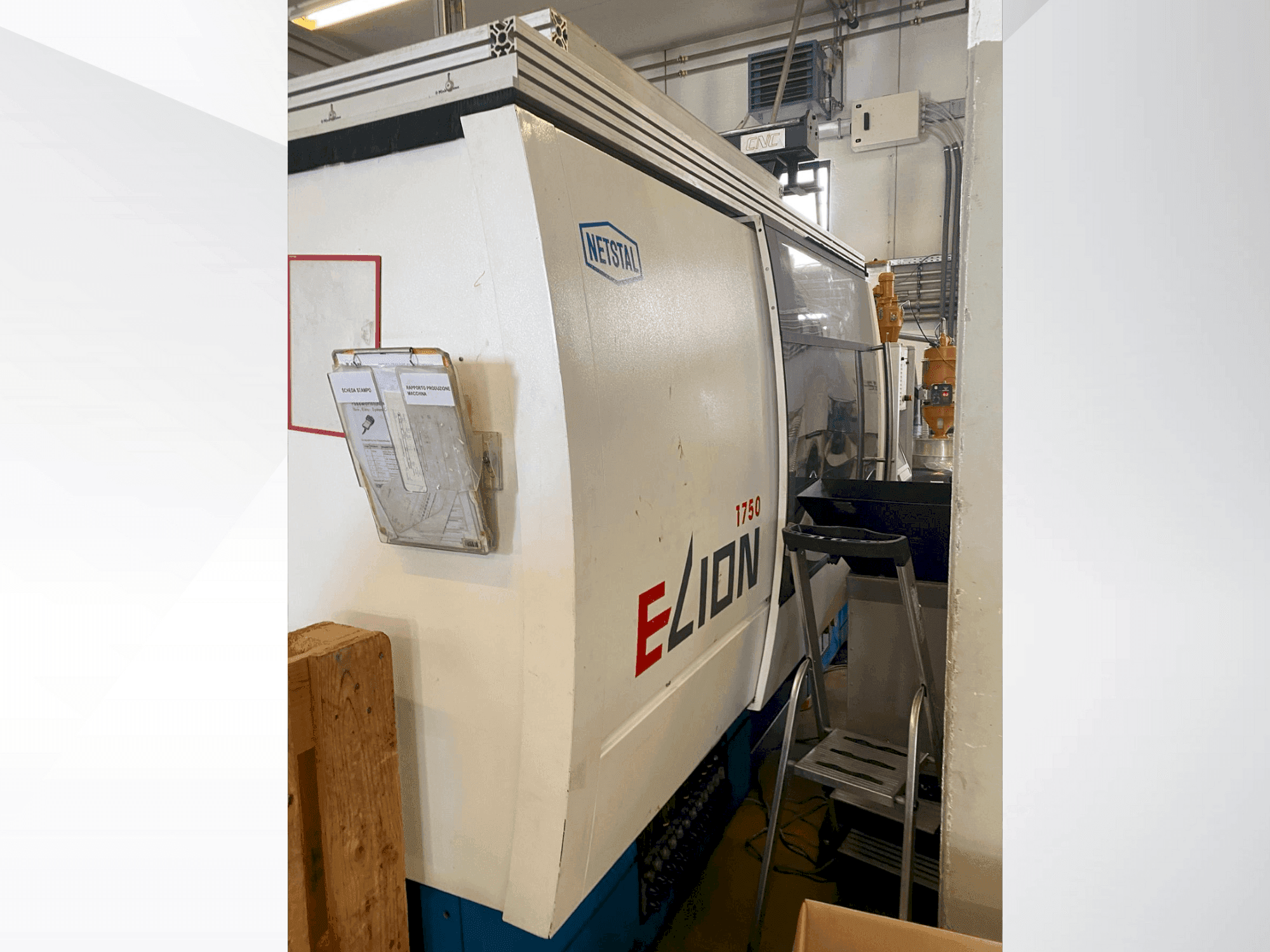

Front view of Netstal ELION 1750-840PS  machine

Netstal - ELION 1750-840PSCH-INJ-NET-2007-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This hydraulic injection moulding machine was manufactured in 2007. The Netstal ELION 1750-840PS features a clamping force of 1750 KN and a screw diameter of 50 mm, capable of a maximum shot volume of 392.7 cm³. It supports a maximum mold weight of 2070 kg and operates with an injection pressure of 2138 bar. A great opportunity to buy this Netstal ELION 1750-840PS hydraulic injection moulding machine. For more information about this machine, please reach out to us.

Overview

  • brand: Netstal
  • year: 2007
  • MODEL: ELION 1750-840PS
  • application type: Injection Moulding
  • Location: Switzerland
  • machine type: Hydraulic Injection Moulding Machine
  • availability: Sold

Technical Information - Netstal ELION 1750-840PS

General Data

  • Measurements width: 1931 mm
  • Measurements depth: 6231 mm
  • Measurements height: 2042 mm
  • Machine weight: 13000 kg

Injection Unit

  • Screw diameter: 50 mm
  • Shot weight: 376.7 g (PS)
  • Injection pressure: 2138 bar
  • Screw speed: 530 RP

Clamping unit

  • Clamping force: 1750 kN
  • Opening stroke: 450 mm
  • Distance between bars: 510 mm
  • Mould height min: 300 – 600 mm
  • Mould height max: 500 – 800 mm
  • Ejector stroke: 150 mm
  • Ejector force for / back: 50 kN

    Additional equipment

    • - Core pull: 0 units

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max metering stroke: 200 m
        • - Max shot volume: 392. 7 cm³
        • - Standard injection flow rate: 490. 9 cm³/s // power injection flow rate: 883. 6 cm³/s
        • - Max injection speed standard/power: 250 / 450 mm/s
        • - Max screw speed "force": 320 rpm // max screw speed "master": 530 rpm
        • - Max torque "force": 1500 nm // max torque "speed": 900 nm // max torque "master": 1500 nm
        • - Plasticizing rate (ps): 48 g/s
        • - Heating capacity: 30. 3 kw
        • - Number of heating zones: 6
        • - Opening force: 1750 kn
      • Qualitative Machine Benefits:
        • - High injection pressure: 2138 bar
        • - High injection flow rate: 490. 9 cm³/s (standard), 883. 6 cm³/s (power)

      Extra information

      • - Dry cycle stroke: 1.4 - 357 seconds per mm Nozzle contact force: 25 / 50 kN Nozzle retraction stroke: 510 mm Max mold weight: 2070 kg Max mold weight on moving platen: 1242 kg

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
