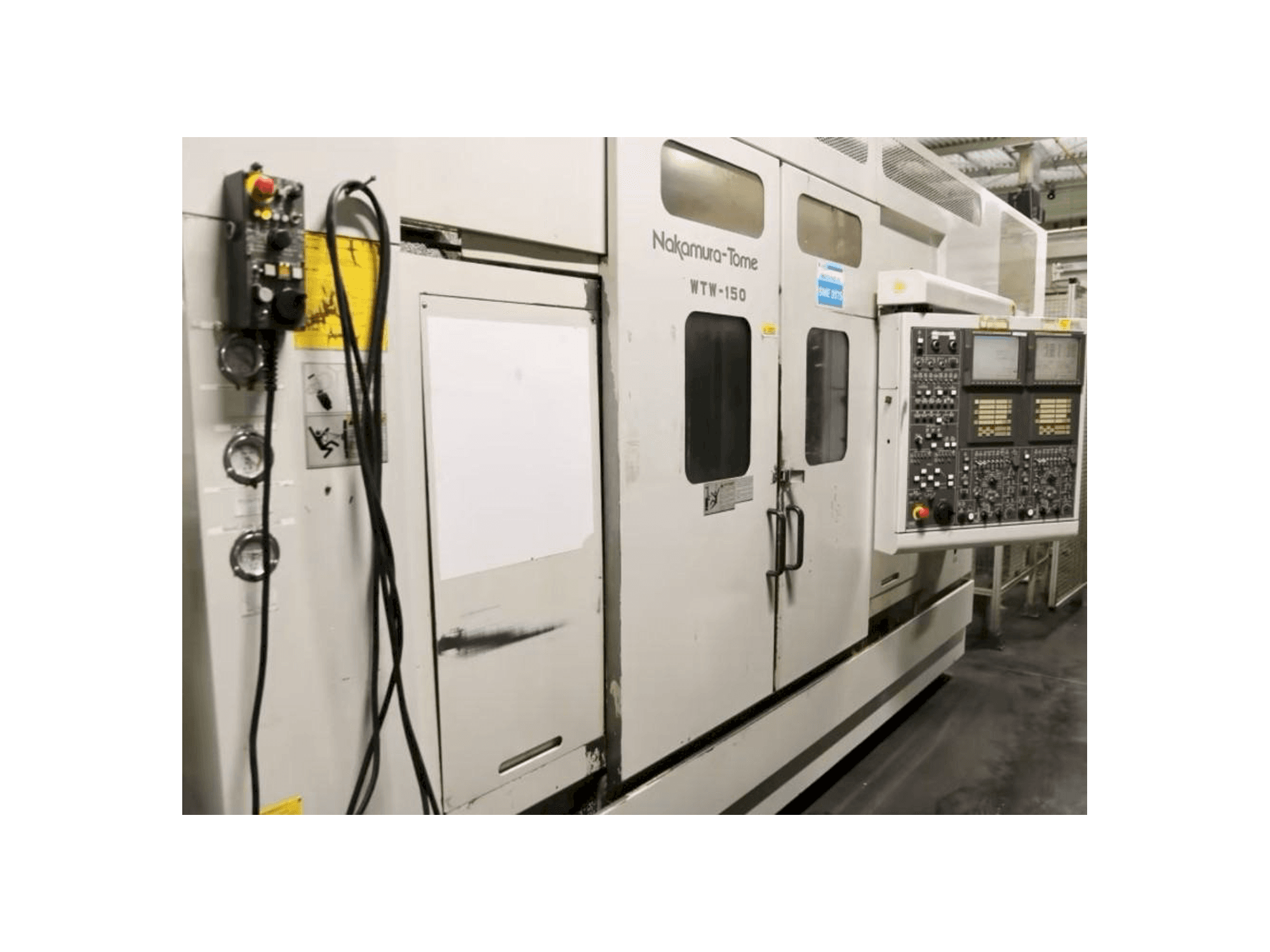

Left view of NAKAMURA-TOME WTW-150 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

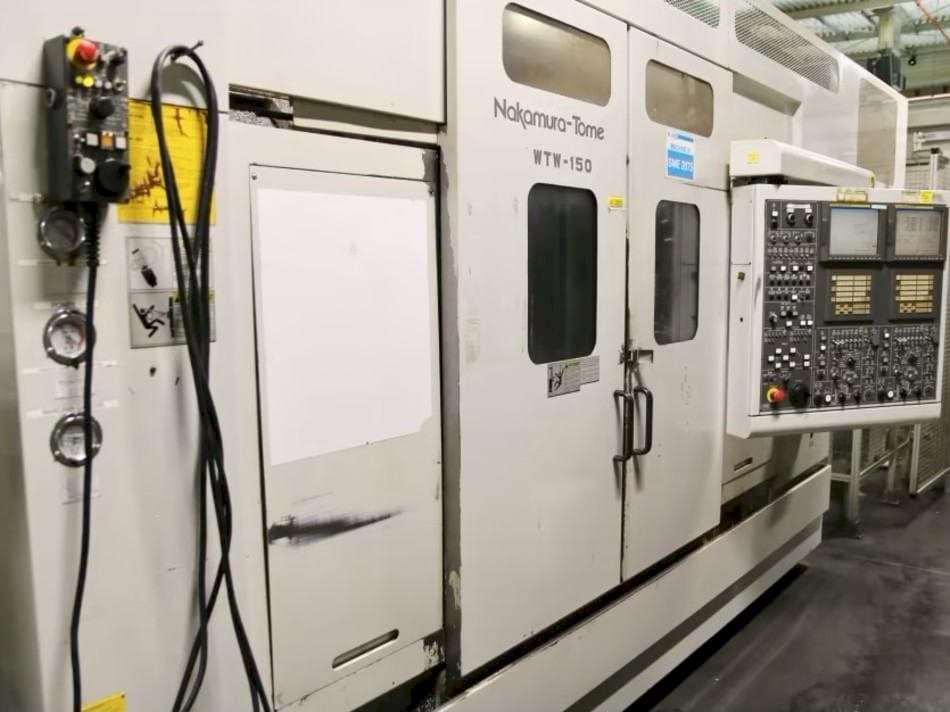

NAKAMURA-TOME WTW-150

Photo Gallery

NAKAMURA-TOME - WTW-150TR-TUR-NAK-2004-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
NAKAMURA-TOME WTW-150 Lathe

Show in original language

This NAKAMURA-TOME WTW-150 Lathe was manufactured in the year 2004 in Japan. It is equipped with a Fanuc control unit. The machine has a spindle speed of 4000 to 6000 rpm. 2 units are available.

Overview

brand: NAKAMURA-TOME
year: 2004
MODEL: WTW-150
application type: Turning
Location: Turkey
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - NAKAMURA-TOME WTW-150

Control Unit

Control Brand: FANUC

Dimensions

Machine Depth: 3850 mm
Machine Height: 2320 mm

Technical Specification

Spindle Speed: 6000 RPM

Additional Information

Machine Benefits

Qualitative Machine Benefits

Y axis on the upper turrets live tooling no chucks included standard package of static tool holders

Technical Machine Benefits

Max. Turning diameter/max. Turning length: 310mm/255mm
Distance between spindle nose: max. 1,070mm/min. 195mm
Bar capacity: 65mm 51mm
Chuck size: 6″
Upper turret slide travel x/z/b2 207. 5/300/875mm
Slide travel y: 207. 5/300mm
Lower turret slide travel x/xz: 60mm（±30）×2
Left spindle right spindle
Driven motor power and torque: 3. 7/2. 2k w　23. 6/14 n. M
Type of turret head/number of index positions dodecagonal/24 rotary system/number of driven-tool stations individual rotation/12

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
