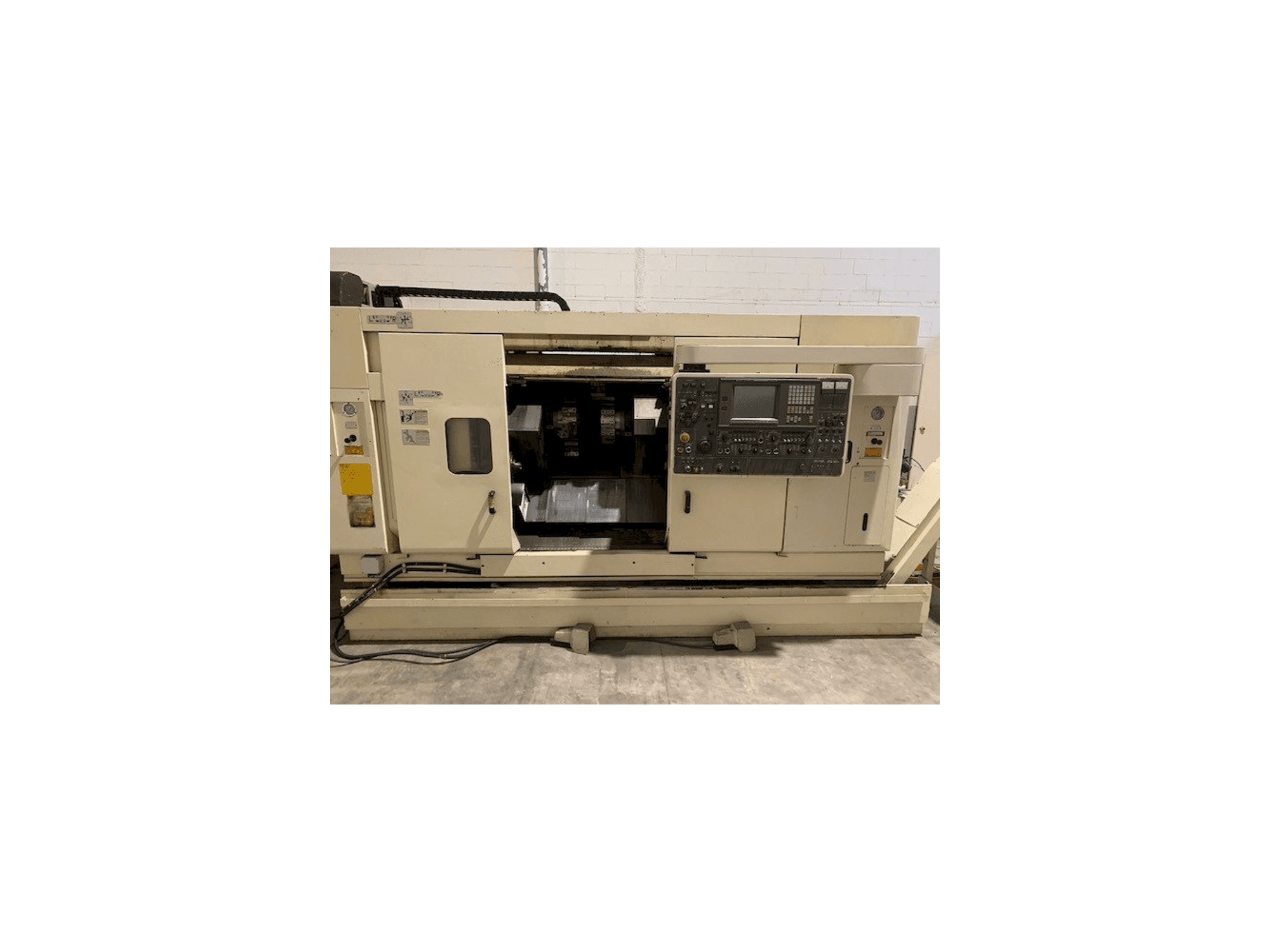

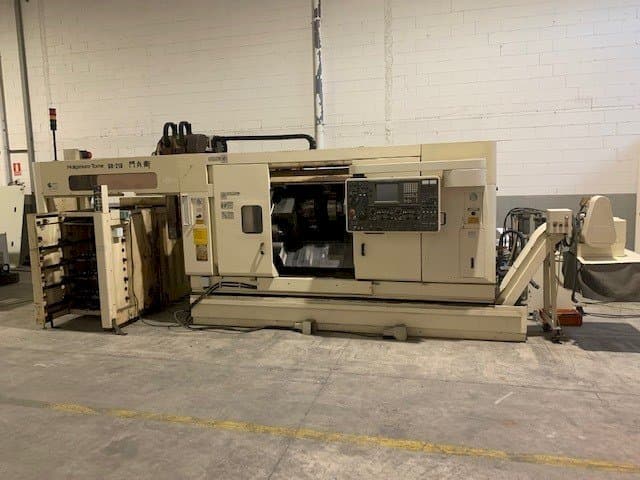

This NAKAMURA-TOME TW-20 lathe was made in the year 2003 in Japan. It is equipped with a Nakamura Tome LUCK-BEI control unit and has 2 axis. The machine has 2 spindles and a max. turning diameter of 270 mm.
Overview
- brand: NAKAMURA-TOME
- year: 2003
- MODEL: TW-20
- application type: Turning
- Location: Spain
- machine type: Turn-Mill Centre
- availability: Sold
Technical Information - NAKAMURA-TOME TW-20
General Data
- Measurements width: 3645 mm
- Measurements depth: 1875 mm
- Measurements height: 1970 mm
- Machine weight: 6000 kg
Control Unit
- Model: LUCK-BEI
Main drive
- Number of spindles: 2
- Number of axis: 2
Workpiece
- Workpiece x: 500 mm
- Workpiece z: 600 mm
Additional Information
- Technical Machine Benefits:
- - Max bar size 51 mm
- - Chuck diameter 215 mm
- - Swing over slide cover 270 mm
- - Standard turning diameter 215 mm
- - Max. Turning diameter 270 mm
- - Max. Turning length 192 mm
- Qualitative Machine Benefits:
- - Robot without console
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
