MYLAS DT52

Photo Gallery

MYLAS - DT52SI-TUR-MYL-2018-00001

Sold

Do you have further questions? Contact us.

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

Click to chat on WhatsApp

Show in original language

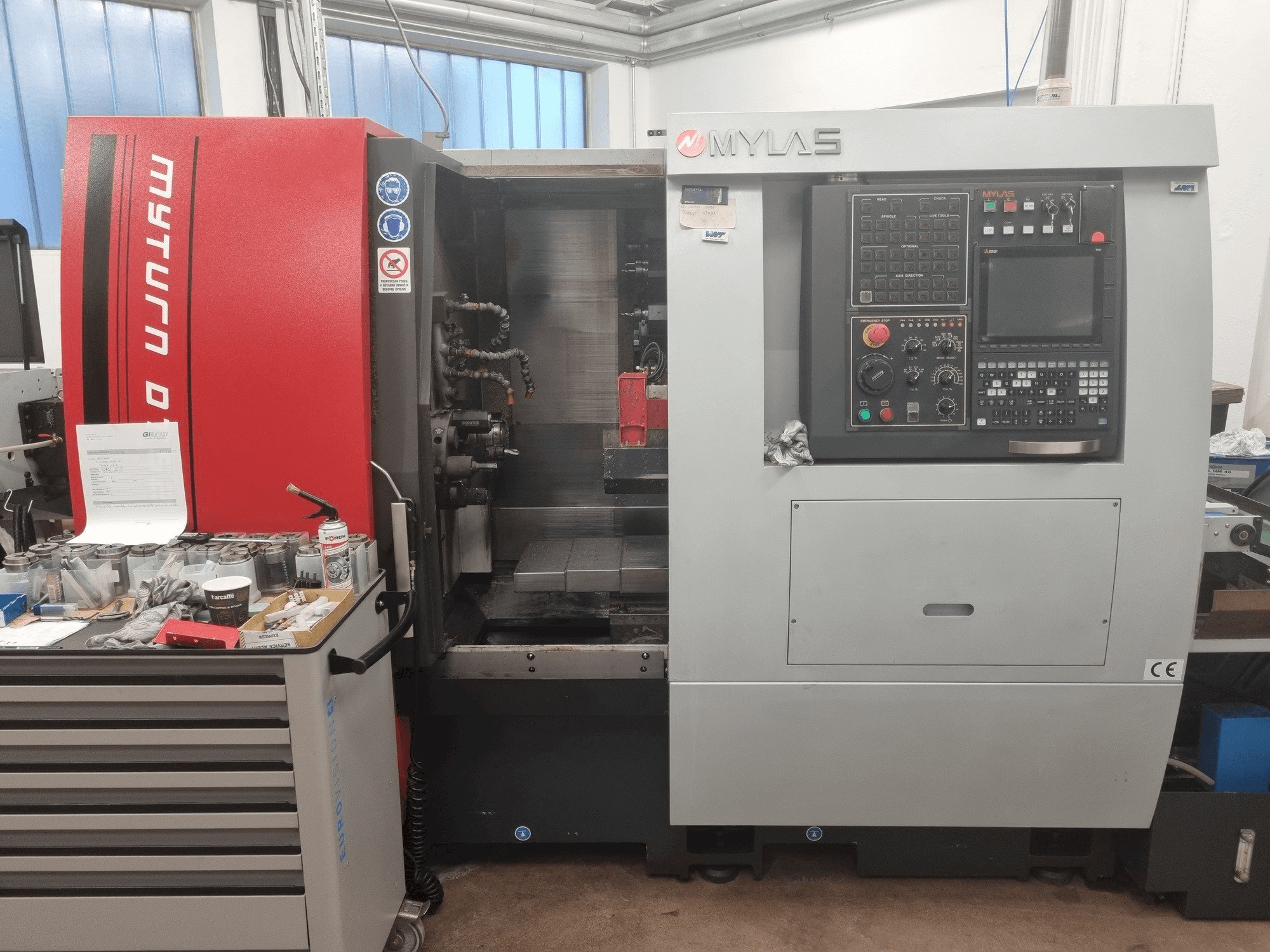

This MYLAS DT52 Lathe was manufactured in the year 2018 in Taiwan. It is equipped with a Mitsubishi M80 control unit. The machine has a spindle speed of 6000 rpm.

Overview

brand: MYLAS
year: 2018
MODEL: DT52
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - MYLAS DT52

Control Unit

Model: M80
Brand: MITSUBISHI

Main drive

Spindle speed range: 6000 1/MIN

Movement

X-AXIS Movement: 175 mm
Y-AXIS Movement: 450 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning length: 350mm
- - Max. Diameter of the scraper from the rod (main): 50mm
- - Max. Turning diameter (sub): 32mm
- - Zl and z2 axis speeds 24m/min
- - Max. St. V1t (main) 50-4500
- - Engine power (main) 7,5/llkw
- - Clamping for external turning (main) 20x20mm
- - Max. Drilling diameter on revolver (main/sub) 13mm
- - Revolver motor power (main) 2,2/3,7 kw
- - Max. Threaded drill bit size (main/sub) m8
Qualitative Machine Benefits:
- - X1os servo motor 1,8kw
- - Oil skimmer
- - Transporter of pieces
- - Carrier of spurs
- - Gripping jaw type main spindle 177e
- - Fast strokes xl , yin x2 axis 18m/min
- - Stations on the revolver (main) 12
- - Bmt 45 revolver (standard 1809)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
