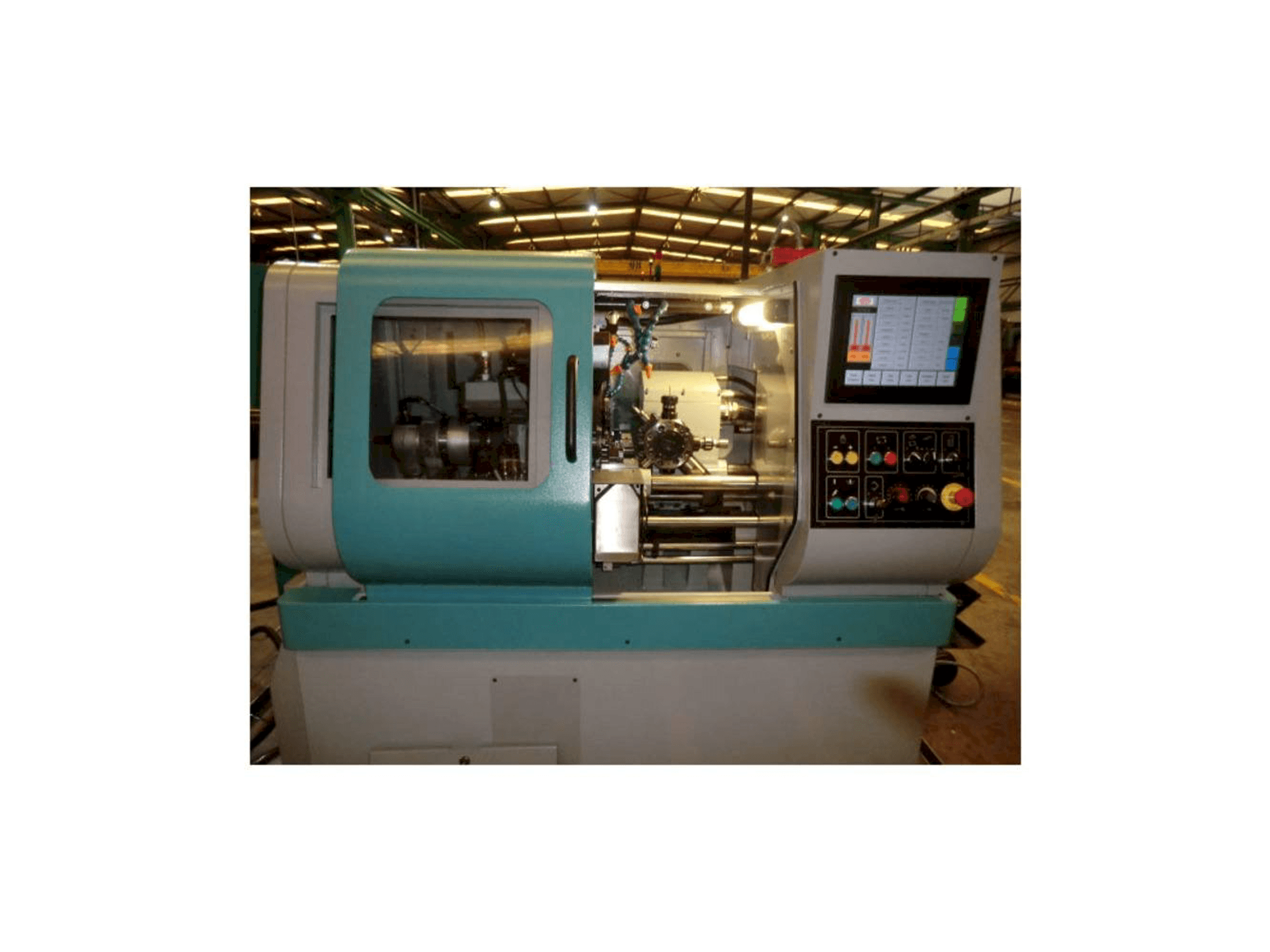

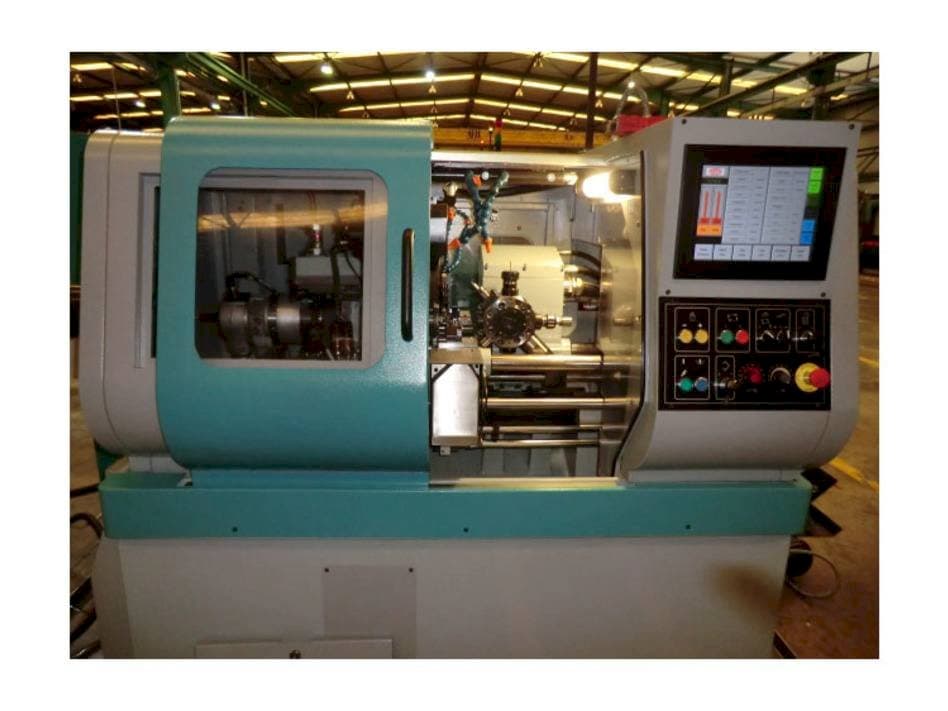

Front view of MUPEM MAGNA-26  machine

MUPEM - MAGNA-26ES-TUR-MUP-2020-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MUPEM MAGNA-26 lathe was made in the year 2020. It is equipped with a CNC Mupem. The machine has a spindle speed of 6000 rpm, is like new, only used in fairs, very good status.

Overview

  • brand: MUPEM
  • year: 2020
  • MODEL: MAGNA-26
  • application type: Turning
  • Location: Spain
  • machine type: Horizontal Turning Machine
  • availability: Sold

Technical Information - MUPEM MAGNA-26

General Data

  • Measurements width: 2100 mm
  • Measurements depth: 1400 mm
  • Measurements height: 1600 mm
  • Machine weight: 1800 kg

Control Unit

  • Model: CNC

Main drive

  • Spindle speed range: 6000 1/MIN
  • Spindle motor power: 5,5 kW

Movement

  • X-AXIS Movement: 25 mm (-5/20)
  • Z-AXIS Movement: 130 mm

Tools

  • Number of stations: 8

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum capacity in round bar (mm) 26
      • - Tool holder housing diameter 3 de 3/4" (19,05 mm) / 3 de 11/4" (31,75 mm)
    • Qualitative Machine Benefits:
      • - The machine is like new
      • - Only used in fairs
      • - Very good status

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
