MTRent - T22YDE-TUR-MTR-2019-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- MTRent T22Y Lathe

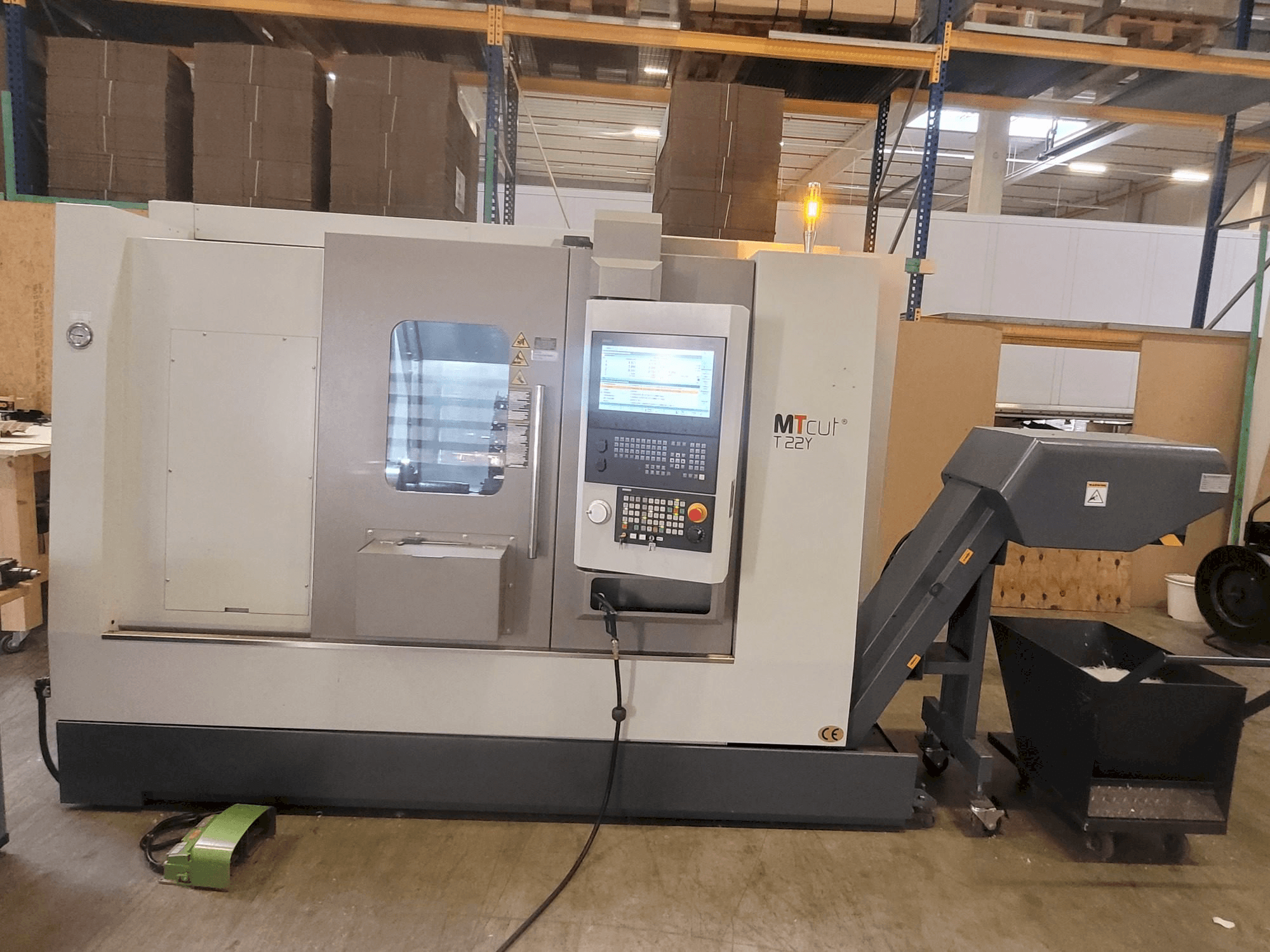

This MTRent T22Y Lathe was made in 2019 in Taiwan and has 1294 production hours. It is equipped with a SIEMENS SINUMERIK 828D control unit. The machine has a spindle speed of 4500 rpm.
Overview
- brand: MTRent
- year: 2019
- MODEL: T22Y
- production hours: 1294
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - MTRent T22Y
General Data
- Machine weight: 5700 kg
Control Unit
- Model: Sinumerik 828D
- Brand: SIEMENS
Main drive
- Spindle speed range: 4500 1/MIN
Movement
- X-AXIS Movement: 200 mm
- Y-AXIS Movement: 110 (± 55)mm
- Z-AXIS Movement: 560 mm
Additional Information
- Technical Machine Benefits:
- - Machine has x, y and z axis
- - Main spindle chuck size: 200 mm Max. swing Ø over bed: 610 mm Max. turning Ø: 270 mm Max. turning length: 510 mm X/Z travel: 200 / 560 mm Y travel: 110 (z 55) Max. Bar capacity: 65 mm Main spindle Spindle speed: 4500 rpm Number of driven tools Tool positions: 16 BMT 45 Machine weight: 5700 kg Siemens Touch Display 15,6 '' Jaw chuck Ø 200 mm C-axis Y-axis Chip conveyor Coolant system, 20 bar Work area light; foot pedal chuck; Machine status light multicolored CE test Tools: 7 driven tools Various tool holders + tools
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
