MTcut V220P

Photo Gallery

MTcut - V220PDE-MIL-MTC-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

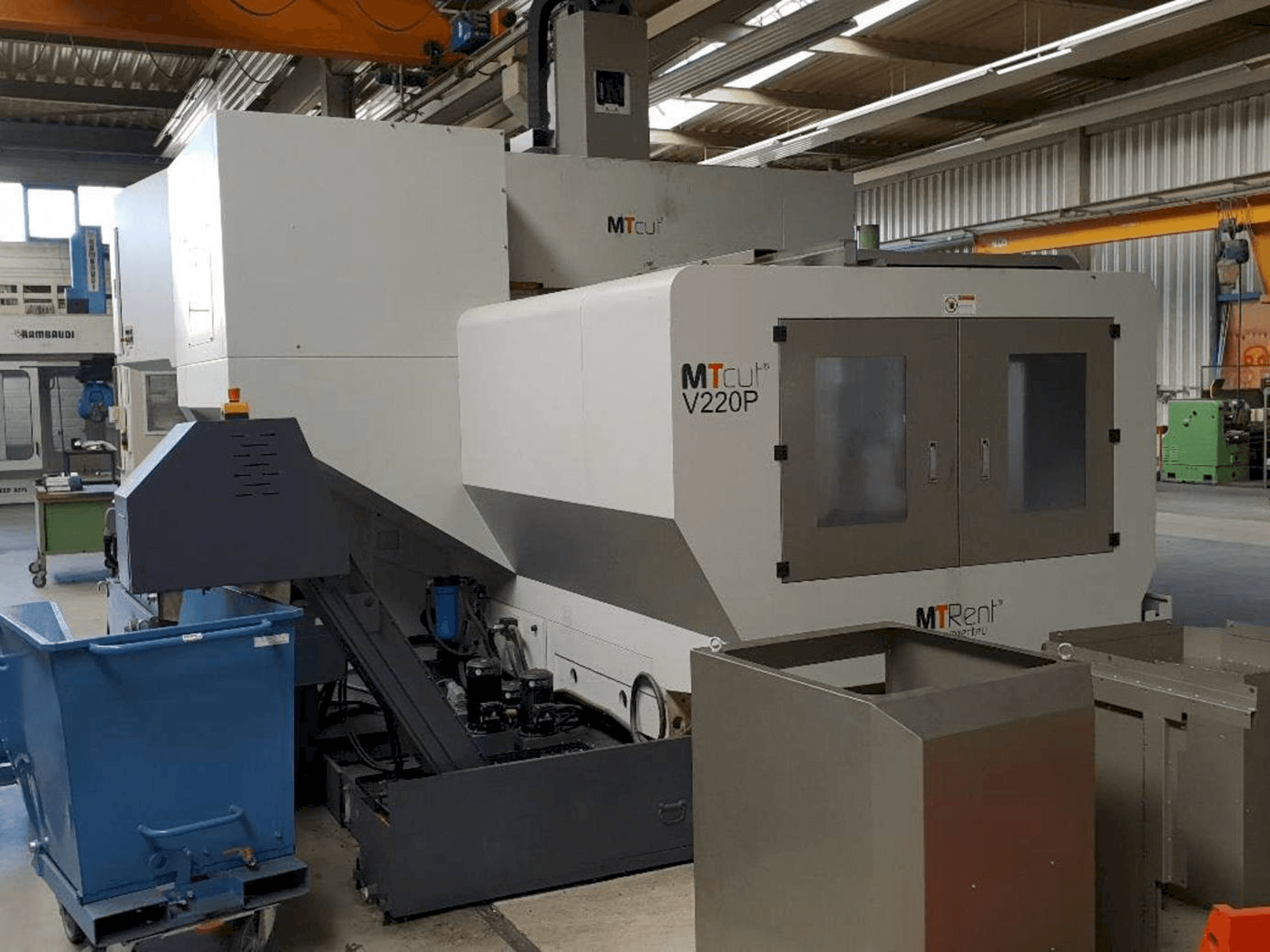

This MTcut V220P milling machine was manufactured in the year 2016. It has been on for 20112 hours, of which 4860 are spindle hours. It is operated with a Heidenhain iTnc 530 SmarT.NC HSCI control unit. This 3 axis machine has a spindle speed up to 18000 rpm and a max tool length 250 mm. It is fully functional. It includes a Heidenhain workpiece and tool measurement.

Overview

brand: MTcut
year: 2016
MODEL: V220P
production hours: 4860
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MTcut V220P

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTnc 530 SmarT.NC HSCI

Dimensions

Machine Weight: 20000 kg
Table Length: 2100 mm
Table Load: 6000 kg
Table Width: 1600 mm

Movement

Number of Axes: 3
X-axis Travel: 2200 mm
Y-axis Travel: 1750 mm
Z-axis Travel: 750 mm

Technical Specification

Max. Tool Weight: 7 kg
Spindle Speed: 18000 RPM

Additional Information

Additional equipment

Heidenhein Workpiece and tool measurement

Machine Benefits

Qualitative Machine Benefits

The machine is fully functional

Technical Machine Benefits

T-slot spacing 180 mm
Change time 3sek
Max tool 80 mm
Max tool with free magazine space 130 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
