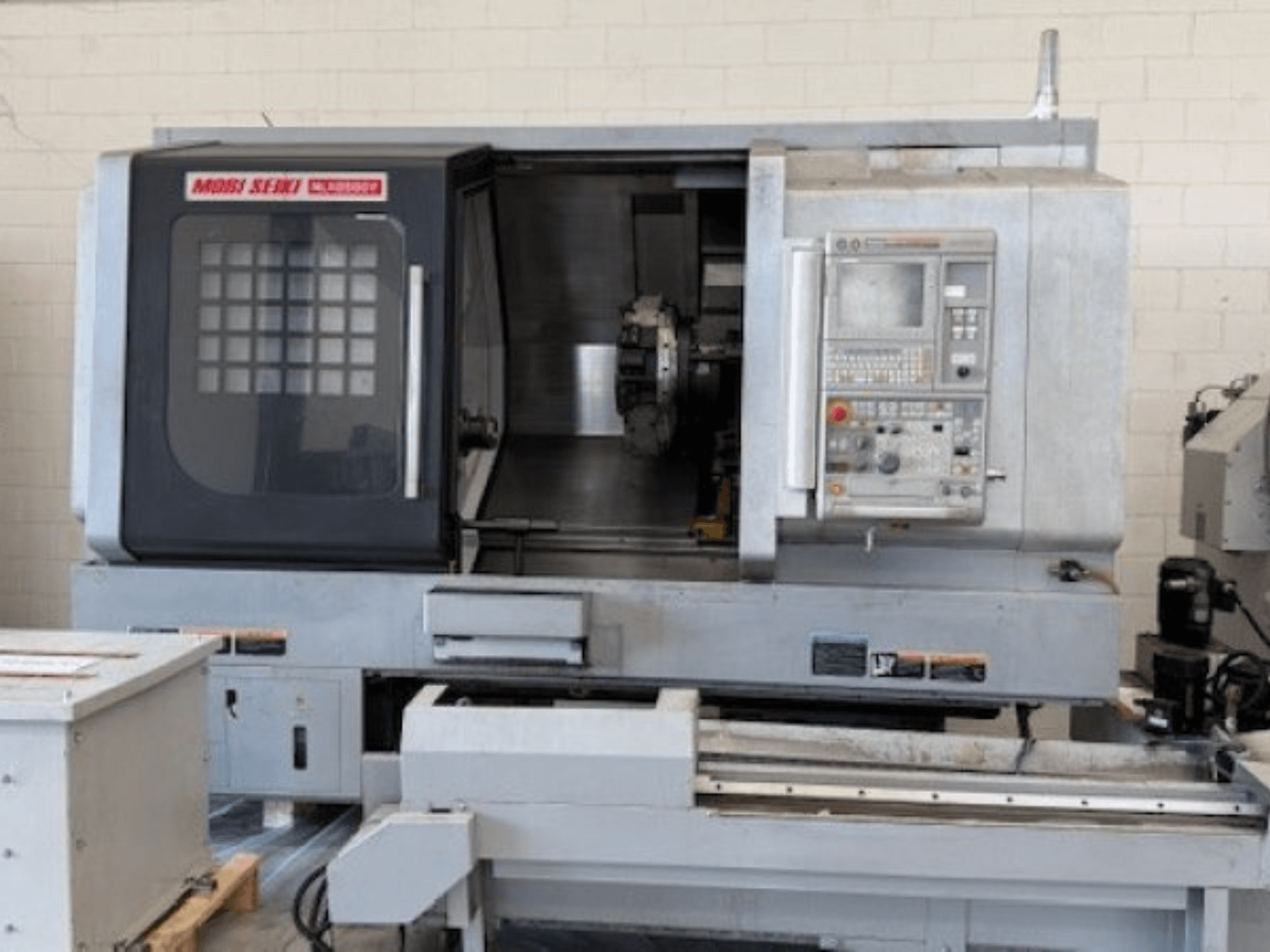

This 4-axis MORI SEIKI NLX 2500Y was manufactured in 2013. It features a maximum swing over bed of 742 mm and a maximum turning diameter of 366 mm. The machine includes a powerful spindle motor with 18.5 kW and a maximum spindle speed of 4,000 rpm. If you are looking to get high-quality turning capabilities, consider the MORI SEIKI NLX 2500Y horizontal turning machine we have for sale. Contact us for further details.
Overview
- brand: MORI SEIKI
- year: 2013
- MODEL: NLX 2500Y
- application type: Turning
- Location: Italy
- machine type: Horizontal Turning Machine
Technical Information - MORI SEIKI NLX 2500Y
Dimensions
- Machine Weight: 6140 kg
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 100 mm
- Z-axis Travel: 795 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: Yes
- Spindle Power: 18.5 kW
- Spindle Speed: 4000 RPM
Additional Information
Control unit: M730 BM
C-axis0.001° indexing
Maximum swing over bed: 742 mm
Maximum turning diameter: 366 mm
Maximum turning length: 705 mm
Maximum bar capacity: 80 mm
Spindle nose: ASA 8"
Tailstock: MT5
Tailstock quill diameter: 80 mm
Tailstock travel: 734 mm
Turret stations: 12 positions
Motorized tool positions: 12
Turret tool coupling: BMT
Turning tool size: 25 × 25 mm
Boring bar capacity: 50 mm
Maximum driven tool speed: 6,000 rpm
Driven tool motor power: 5.5 / 7.5 kW
Additional equipment
Chip conveyor
Parts unloader arm
Parts conveyor belt
High-pressure pump with paper filter tank
Optical scales
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
